6.7 Securing the housing cover with Ex d
Each of the front faces of the electronics housing features a locking screw (hex-head socket
screw SW 3) on the top right-hand side.
1. Attach the housing cover to the housing by hand-tightening the screws.
2. Turn the locking screw counterclockwise to secure the housing cover. This involves
unscrewing the screw until the screw head stops at the housing cover.
M00044
1

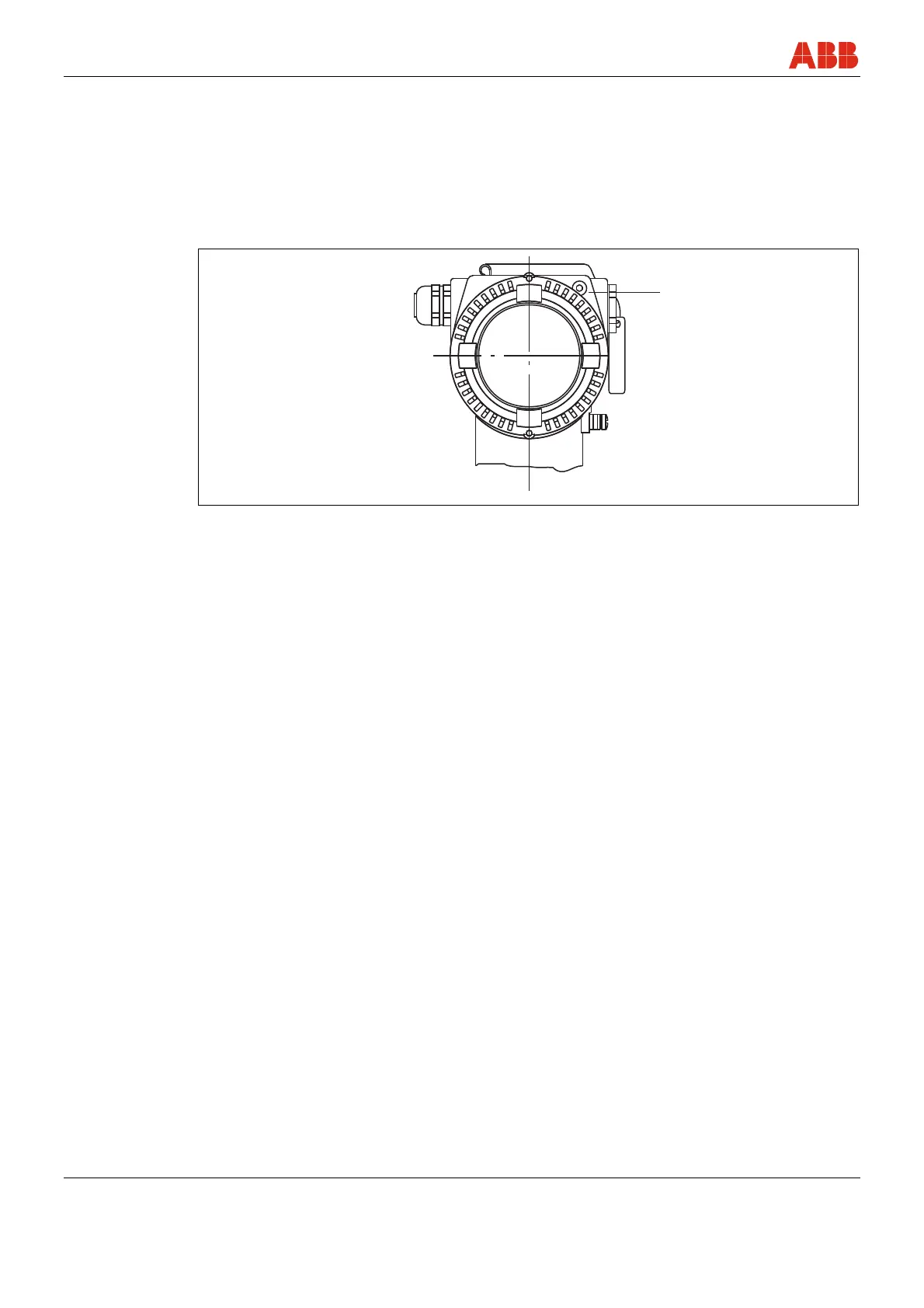

Fig. 16: Securing the housing cover
1 Locking screw
