Specifications
80 265Gx,
265Ax
IM/265Gx/Ax-EN-07

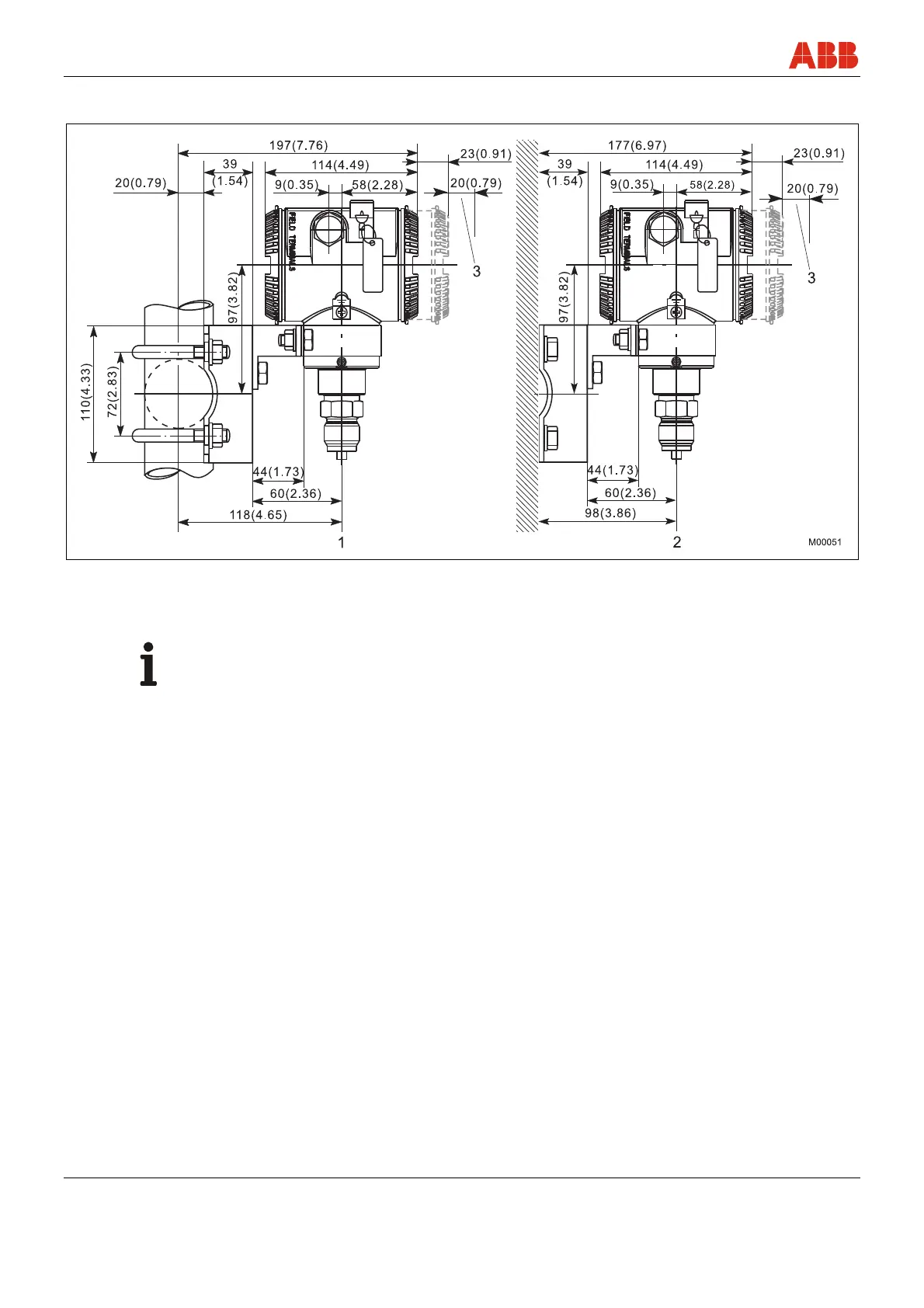

9.9.5
Mounting with bracket for barrel hous
ing (option)
Fig. 28:
Dimensions in mm (inch)
1
Pipe mounting
3
Space required for removing the cover
2
Wall mounting
IMPORTANT (NOTE)
The bracket for wall or pipe mounting has four
holes (Ø 11 mm). The hole
s are arranged in a
square and spaced 72 mm away from one anoth
er.
79
81
Table of Contents
Table of Contents
3
Safety
6
General Information and Notes for the Reader
6
Intended Use
6
Technical Limit Values
6
Improper Use
7
Target Groups and Qualifications
7
Warranty Provisions
7
Plates and Symbols
8
Safety-/ Warning Symbols, Note Symbols
8
Name Plate
9
Compliance with Pressure Equipment Directive (97/23/EC)
11
Transport and Storage
12
1.10 Safety Instructions for Electrical Installation
12
1.11 Safety Information for Inspection and Maintenance
12
1.12 Returning Devices
13
1.13 Integrated Management System
13
1.14 Disposal
13
Information on WEEE Directive 2002/96/EC (Waste Electrical and Electronic Equipment)
13
1.14.2 Rohs Directive 2002/95/EC
14
Use in Potentially Explosive Atmospheres
15
Type-Examination Certificate/Declaration of Conformity
15
Type of Protection "Intrinsic Safety Ex I
15
Use in Areas with Combustible Dust
16
Category 3 for Use in "Zone 2
16
Type of Protection "Flameproof Enclosure Ex D
17
Type of Protection "Intrinsic Safety I", "Flameproof Enclosure D", "Protection by Enclosure Td", and "Non-Sparking Na
18
Canadian Standards Association (CSA): "Explosion-Proof
18
Aspects of "Ex Safety" and "IP Protection" for Australian Applications
19
Design and Function
21
Principle of Operation and Construction
22
Mounting
25
General
25
IP Designation
25
Pressure Transmitter
26
Sealing and Screw Connections
26
Moisture
27
Impulse Line
27
Electrical Connections
28
Cable Connection
28
Electrical Connection in the Cable Connection Area
29
Electrical Connection with Plug
31
Assembling and Connecting the Socket Connector
32
Protective Conductor / Grounding
33
Integrated Lightning Protection (Optional)
33
Communication Setup
34
Connecting Cable
36
PROFIBUS PA Pressure Transmitter
37
Commissioning
38
Output Signal
39
Write Protection
39
Correcting the Lower Range Value / Zero Shift
40
Turning the Housing in Relation to the Measuring Equipment
41
Installing / Removing the Button Unit
41
Installing / Removing the LCD Display
42
Securing the Housing Cover with Ex D
44
Sensor Ventilation
45
Operation
46
Operation Using the Control Buttons on the Transmitter
46
Configuration
47
Factory Settings
47
Transmitter with HART Communication and 4
47
Transmitter with PROFIBUS PA Communication
48
Transmitter with FOUNDATION Fieldbus Communication
49
Configuration Types
49
Configuring the Parameters Without an LCD Display
50
Configuration with the LCD Display
52
Offset Shift (OFFSET SHIFT)
53
Damping (DAMPING)
54
Characteristic (FUNCTION)
54
Fieldbus Address (ADDRESS)
54
Layout and Contents of the LCD Display
55
Displaying a Physical Value
55
Menu Structure
57
Menu-Controlled Pressure Transmitter Programming
59
Parameter Description
60
Configuration with the PC / Laptop or Handheld Terminal
62
Configuration with the Graphical User Interface (DTM)
64
System Requirements
64
Setting the Damping Value
65
Correcting the Zero Shift
65
Setting the Lower and Upper Range Limit Values
65
Ex Relevant Specifications
66
Potentially Explosive Atmospheres
66
Specifications
70
Functional Specifications
70
Operating Limits
71
Pressure Limits
71
Environmental Limits
72
Electrical Data and Options
72
Measuring Accuracy
74
Operating Influences
74
Technical Specification
75
Mounting Dimensions (Not Design Data)
76
Pressure Transmitter with Barrel Housing
76
Pressure Transmitter with DIN Housing
77
Pressure Transmitter with Front-Bonded Diaphragm (Barrel Housing)
78
Pressure Transmitter with Ball Valve Connection (Barrel Housing)
79
Mounting with Bracket for Barrel Housing (Option)
80
Mounting with Bracket for DIN Housing (Option)
81
Maintenance / Repair
82
10.1 Removal
83
10.1.1 Removing the Electronics
83
10.1.2 Screw Torques for the Process Connection
83
Appendix
84
11.1 Approvals and Certifications
84
Index
87
