Chapter 2 – Mechanical Installation
ACA 6xx Sections and ACS/ACC 6x7 (132 to 3000 kW) Frequency Converters 2-5
Final Placement of the
Shipping Splits
(Not allowed in marine versions)
Removing the Lifting
Lugs and Bars
Remove the lifting bars (if used) after lifting, as they disturb the cooling
of the unit. Remove the lifting lug of marine versions. Refasten the
original bolts or fasten the upper vibration dampers (if used) in
order to maintain the degree of protection of the cabinet.

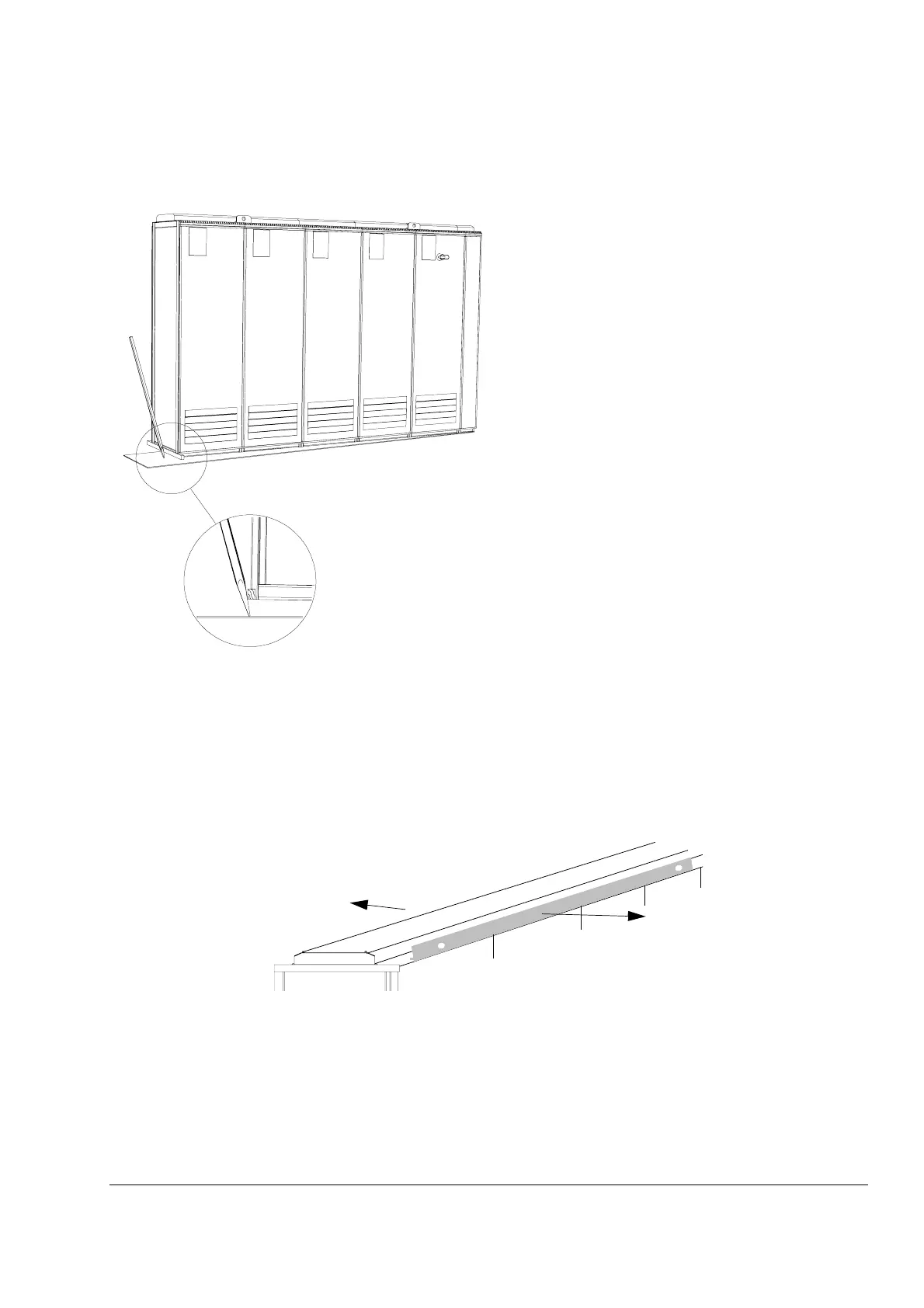

The cabinets can be moved into their final
position by using an iron bar and a wooden
piece at the bottom edge of the cabinet.
Care is to be taken to properly place the
wooden piece so as not to damage the
cabinet frame.
