48 ACH580 Installation, Operation and Maintenance Manual
ACH580-01 Installation
Hand key ( ):
• In local control / Off mode: Starts the drive. The drive will switch to the Hand
mode.
• In external control: Switches the drive to local control / Hand mode, keeping it
running.
Off key ( ):
• Stops the drive and switches to the Off mode.
Auto key ( ):
• In local control: The drive will switch to external control.

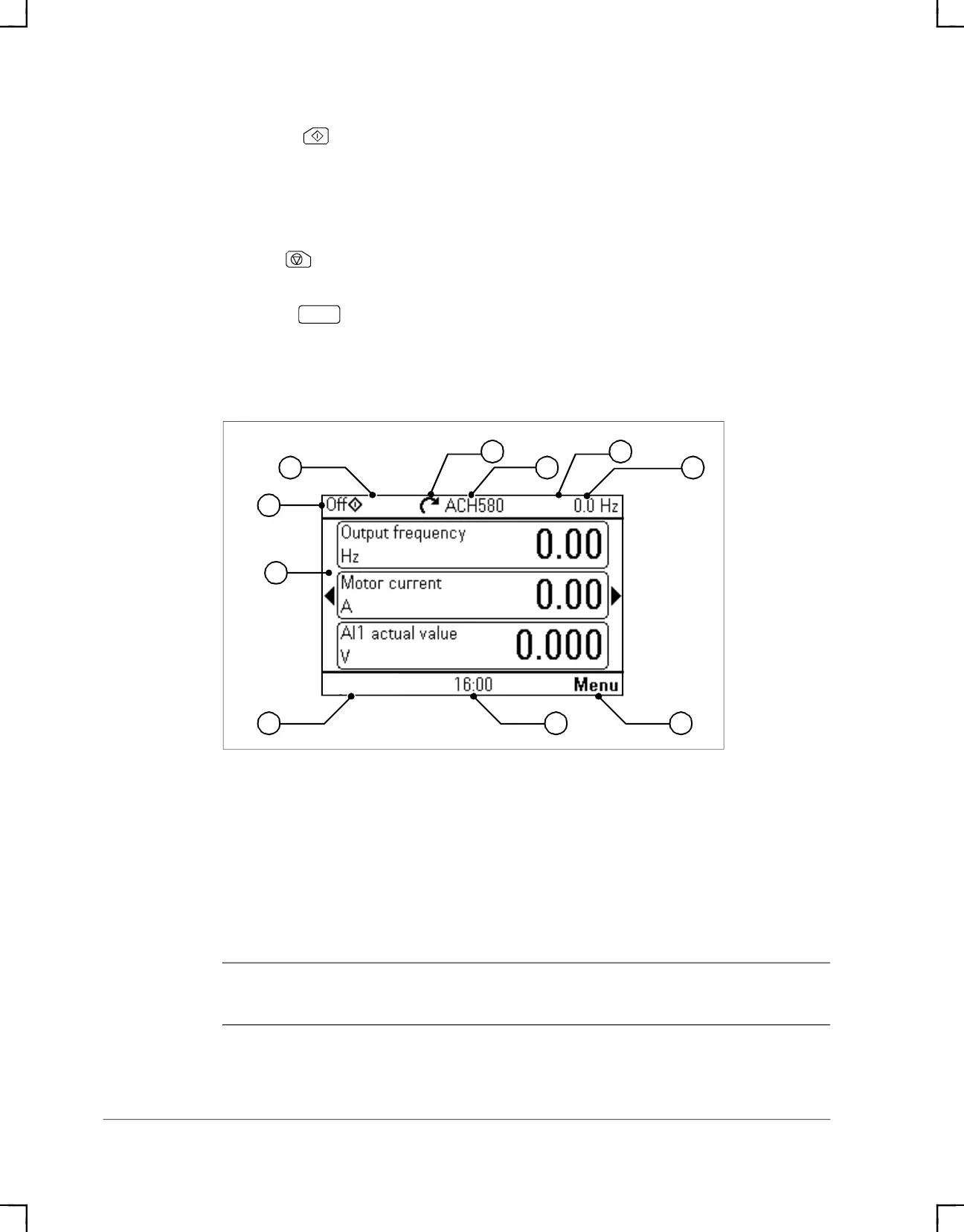

Control panel display
1. Control location and related icons
2. Status icon
3. Drive name
4. Reference value
5. Content area
6. Softkey selections
7. Clock
Note: Complete programming information is available in the ACH580 HVAC control
program firmware manual, publication number 3AXD50000027537.
Auto
1
4
5
6
7
12
6
31
ACH580_Inst_Op_Maint_Rev G.book Page 48
