Appendix A – ACS/ACC/ACP 604/607 Technical Data
ACS/ACC/ACP 604/607 Drives ACx=ACS/ACC/ACP A-13
Optional Terminal Block
2TB

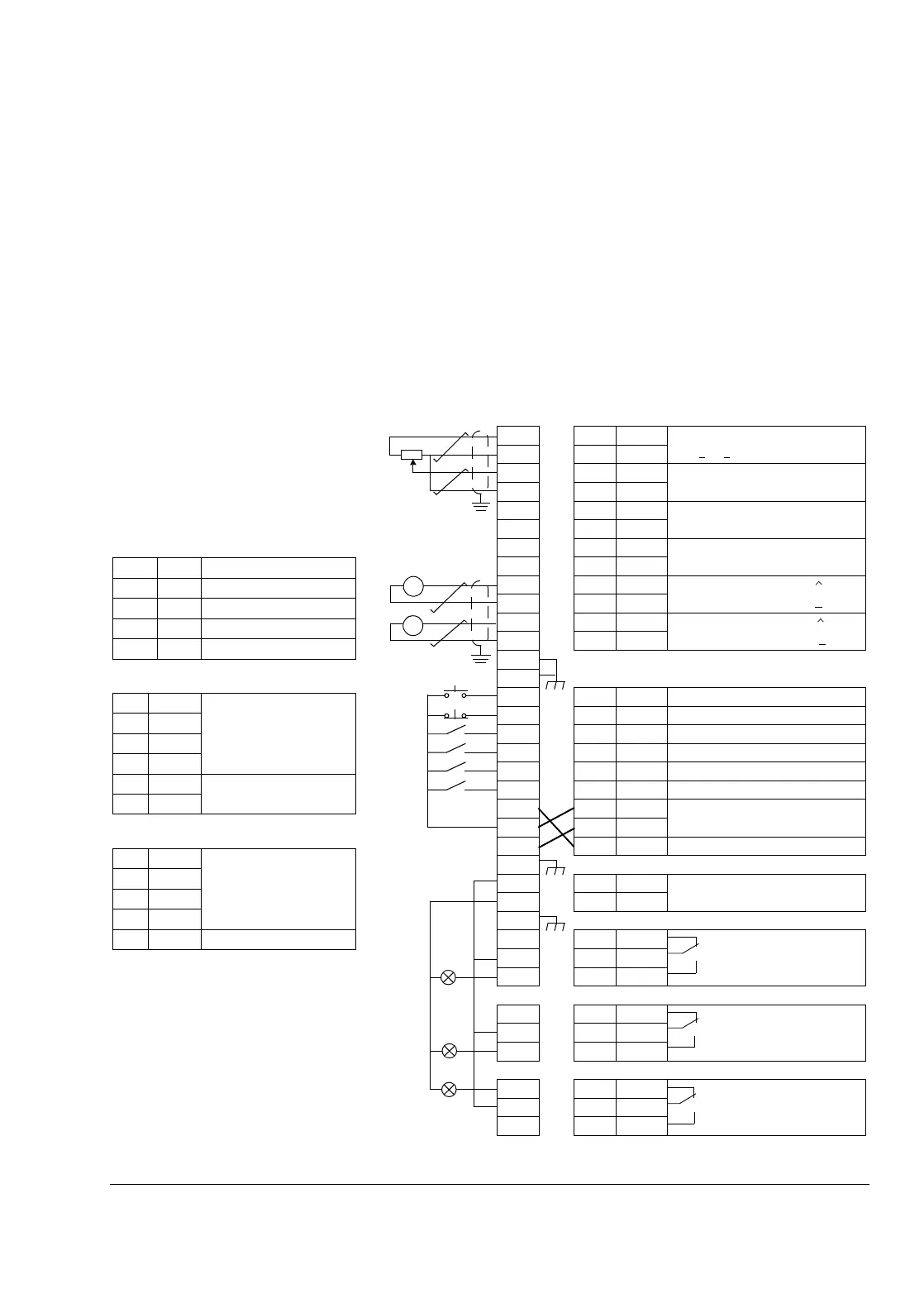

External connections to optional terminal block 2TB. This option is
available only with ACS 600 Standard Application Program. External
control connections with Factory Macro are shown below. Connections
are different with other application macros (see
Firmware Manual
).
.
ACS 607 I/O Interface
(optional)
ACS 601/604/607
NIOC Board
(A2)
Programmable I/O
Factory Settings
2TB X21
1 -------- 1 VREF Reference voltage
10 V d.c.
1 k<
R
L
< 10 k
2 -------- 2 GND
3 -------- 3 AI1+ Speed reference
0(2)... 10 V
R
in
> 200 k
4 -------- 4 AI1-
5 -------- 5 AI2+ By default, not in use.
0(4)... 20 mA
, R
in
= 100
6 -------- 6 AI2-
7 -------- 7 AI3+ By default, not in use.
0(4)... 20 mA
, R
in
= 100
8 -------- 8 AI3-
9 -------- 9 AO1+ Motor speed 0(4)...20 mA
0...motor nom. speed,
R
L
< 700
10 -------- 10 AO1-
11 -------- 11 AO2+ Output current
0(4)...20 mA
0...motor nom. current,
R
L
< 700
12 -------- 12 AO2-
13
14 X22
15 -------- 1 DI1 Start
16 -------- 2 DI2 Stop
17 -------- 3 DI3 Forward/Reverse
1)
18 -------- 4 DI4 ACCEL/DECEL 1/2
19 -------- 5 DI5 Constant speed select
2)
20 -------- 6 DI6 Constant speed select
2)
21 7 +24V +24 V d.c. max. 100 mA
22 8 +24V
23 9 DGND Digital Ground
24 X23
25 -------- 1 +24 V Auxiliary voltage output, non-
isolated, 24 V d.c. 250 mA
26 -------- 2 GND
27 X25
28 -------- 1 RO11
Relay output 1
Ready
29 -------- 2 RO12
30 -------- 3 RO13
X26
31 -------- 1 RO21
Relay output 2
Running
32 -------- 2 RO22
33 -------- 3 RO23
X27
34 -------- 1 RO31
Relay output 3
Fault (-1)
35 -------- 2 RO32
36 -------- 3 RO33
=
=
Terminal Block Size
X21, X22, X23, X25, X26, X27:
cables 0.5 to 1.5 mm
2
(#20 to #16 AWG)
2TB: cables 0.5 to 2.5 mm
2
(#20 to #14 AWG)
Control Cable Lead-through Size:
Ø: 2 x 3x2...11 mm (0.08 to 0.43”)
Factory settings of application software
selection B (type code):
DI1: Start, DI2: Stop, DI3: Reverse,
DI4: Acc/Dec 2,
DI5,6: Constant speed 1 to 3 select.
1)
Parameter 10.3 must be set to REQUEST.
2)
Operation: 0 = Open, 1 = Closed
Connector X28 for RS 485 connection
Connector X29 for RS 485 connection
DI 5 DI 6 Output
0 0 Set speed through AI 1
1 0 Constant Speed 1
0 1 Constant Speed 2
1 1 Constant Speed 3
1 TRANS
Panel Link Connections
2GND
3B-
4A+
5GND
Power to Remote Panel
6 +24V
1 TRANS
Panel Link Connections
2FAULT
3B-
4A+
5 GND Power to Panel
Fault
A
rpm
