NIOCP Board

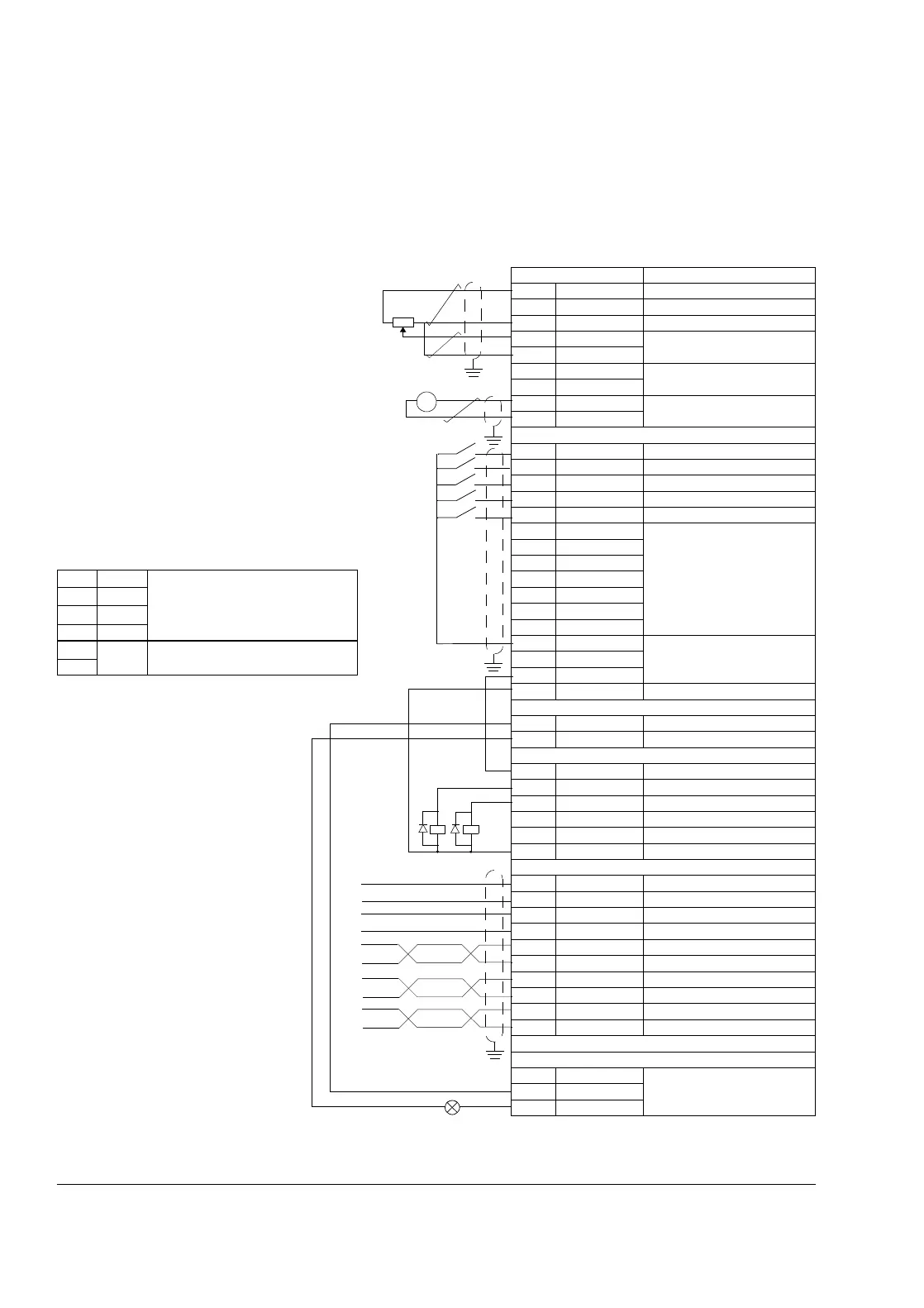

External control connections of ACP 600 with NIOCP board (and
Speed Control Application Macro) are below. External control
connections are different with other application macros (see
Firmware
Manual
).
Terminal Block X1 Function
1 +10 V Reference Voltage +10 VDC
2 AGND Analog Ground
3 –10 V Reference Voltage –10 VDC
4 AI1+
External Reference 1: Speed
Reference
5 AI1–
6 AI2+
External Reference 2: Not
defined
7 AI2–
8AO1+
SPEED ACT 1
9AO1–
Terminal Block X2
1 DI1 START/STOP
2 DI2 Not defined
3 DI3 FAULT RESET
4 DI4 SPEED REF SW2
5 DI5 ACC/DEC 1/2 SEL
6 DI6
Not defined
7 DI7
8 DI8
9 DI9
10 DI10
11 DI11
12 DI12
13 +24 DV
Control Voltage Output14 +24 DV
15 +24 DV
16 DGND Digital Ground
Terminal Block X4
1 +24 V Auxiliary Voltage Output
2DGND 0 V
Terminal Block X5
1 +24 DV Control Voltage Input
2 DO1 ACT SPEED=0
3 DO2 RUNNING
4 DO3 FAULT (-1)
5 DO4 ACT SPEED=REF
6 DGND Digital Ground
Terminal Block X8
1 UENC+ Power Supply
2 SENSE+ Sense+
3 SENSE– Sense–
4 UENC– 0 V
5 A+ Channel A+
6 A– Channel A–
7 B+ Channel B+
8 B– Channel B–
9 Z+ Channel Z+
10 Z– Channel Z–
Terminal Block X7
1RO1 NCC
1 Relay Output, READY Signal2RO1 CM
3RO1 NOC
rpm
Terminal Block Size
X21, X22, X23, X25, X26, X27: cables 0.5 to 1.5 mm
2
Control Cable Lead-through Size:
Ø: 2 x 3x2...11 mm
1
2
3
4
5
6
TRANS
Power to Remote Panel
Panel Link Connections
GND
B-
A+
GND
+24 V
onnector X300 for RS 485 connection
