Installation
Attach the control panel directly to the drive or use a separate mounting kit (for example,
for cabinet door mounting).

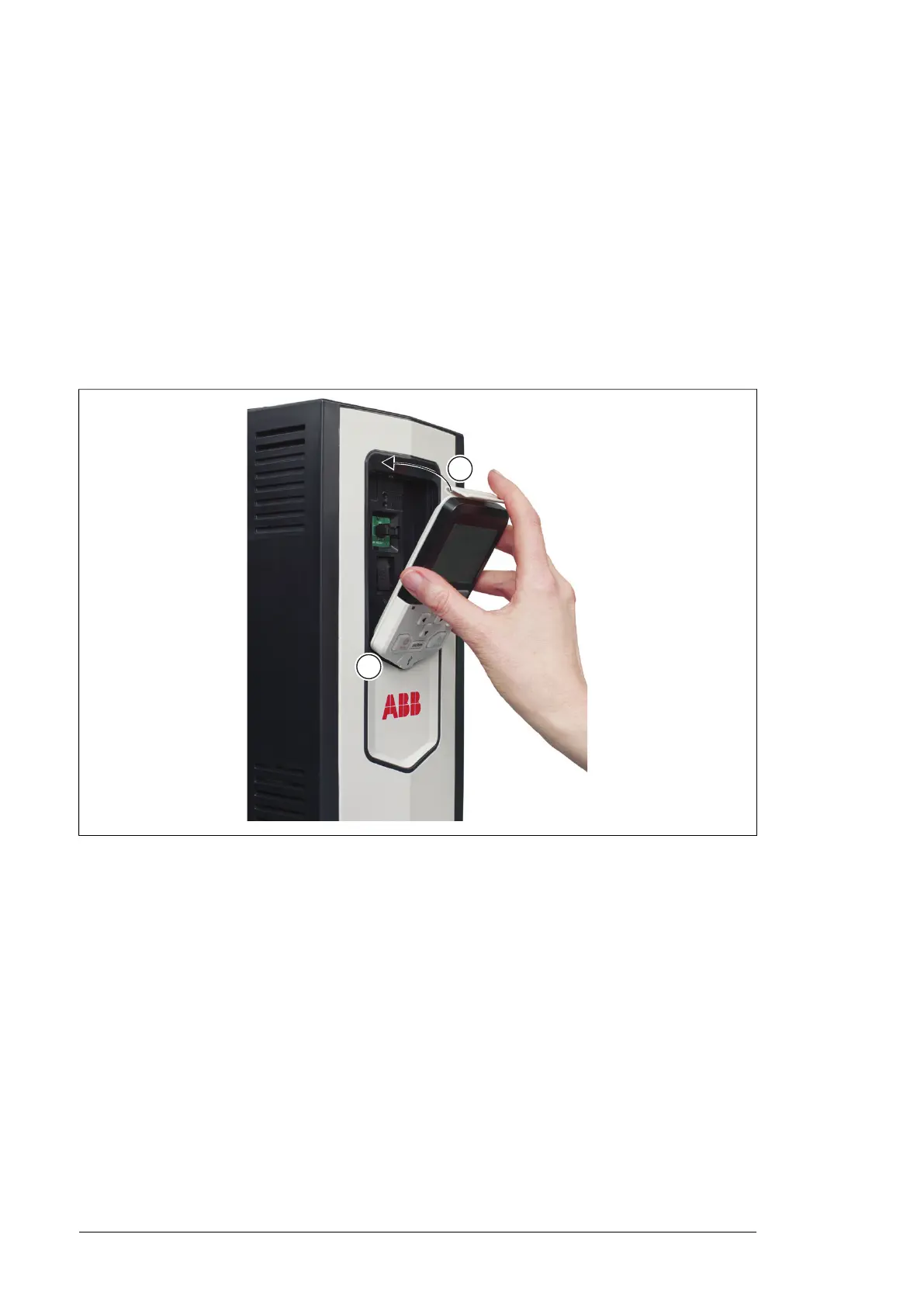

To attach the control panel,
1. Place its bottom end into the bottom of the slot in the drive (A).
2. Pivot the control panel and push the upper part (B) until you hear a click.
To detach the control panel,
1. Release the control panel by pressing the clip (B).
2. Pull the upper end of the control panel out of the slot in the drive.
B
A
14 Installation and start-up
