Menu

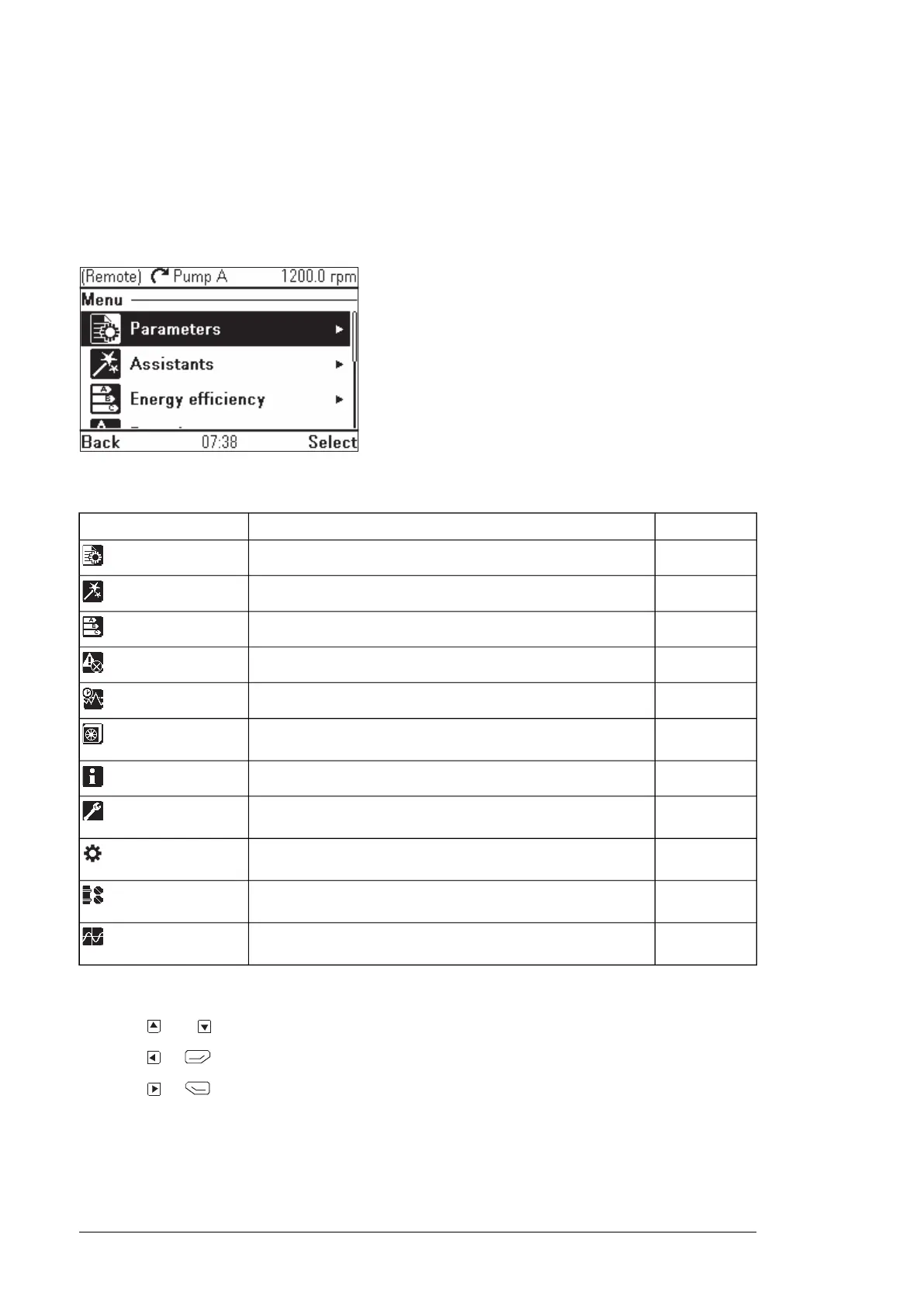

All functions of the control panel are accessed through the Menu which is the main menu
of the user interface. The sub-menus of the Menu are listed below and they are described
in more detail in the subsequent sections. The submenus depend on the product that is
controlled with the control panel.
The following sub-menus varies based on the drive/device to which the panel is connected:
See page…FunctionSub-menu
35
View and edit parameters.
Parameters
41
Launch an assistant.
Assistants
42
Use energy-saving features.
Energy efficiency
43
View information on faults and warnings.
Event log
43
View the load profile.
History graphs
44
Save settings in the control panel memory and restore them to the
drive.
Backups
46
View information on the drive and options.
System info
48
View and change time and date settings, language, display and
other settings, and edit texts.
Settings
49
View and change settings related to motor, PID, fieldbus, advanced
functions, clock, region, and display.
Primary settings
50
Provides terminal name, number, electrical status and logical
meaning of the drive.
I/O
50
Provides faults and warnings information and helps to resolve
potential problems.
Diagnostics
￭ Navigating in the Menu
•
Use and to select a menu item.
•
Use or (Exit) to go back to the Home view.
•
Use or (Select) to enter the selected sub-menu.
34 Functions in the main Menu
