Installation
44

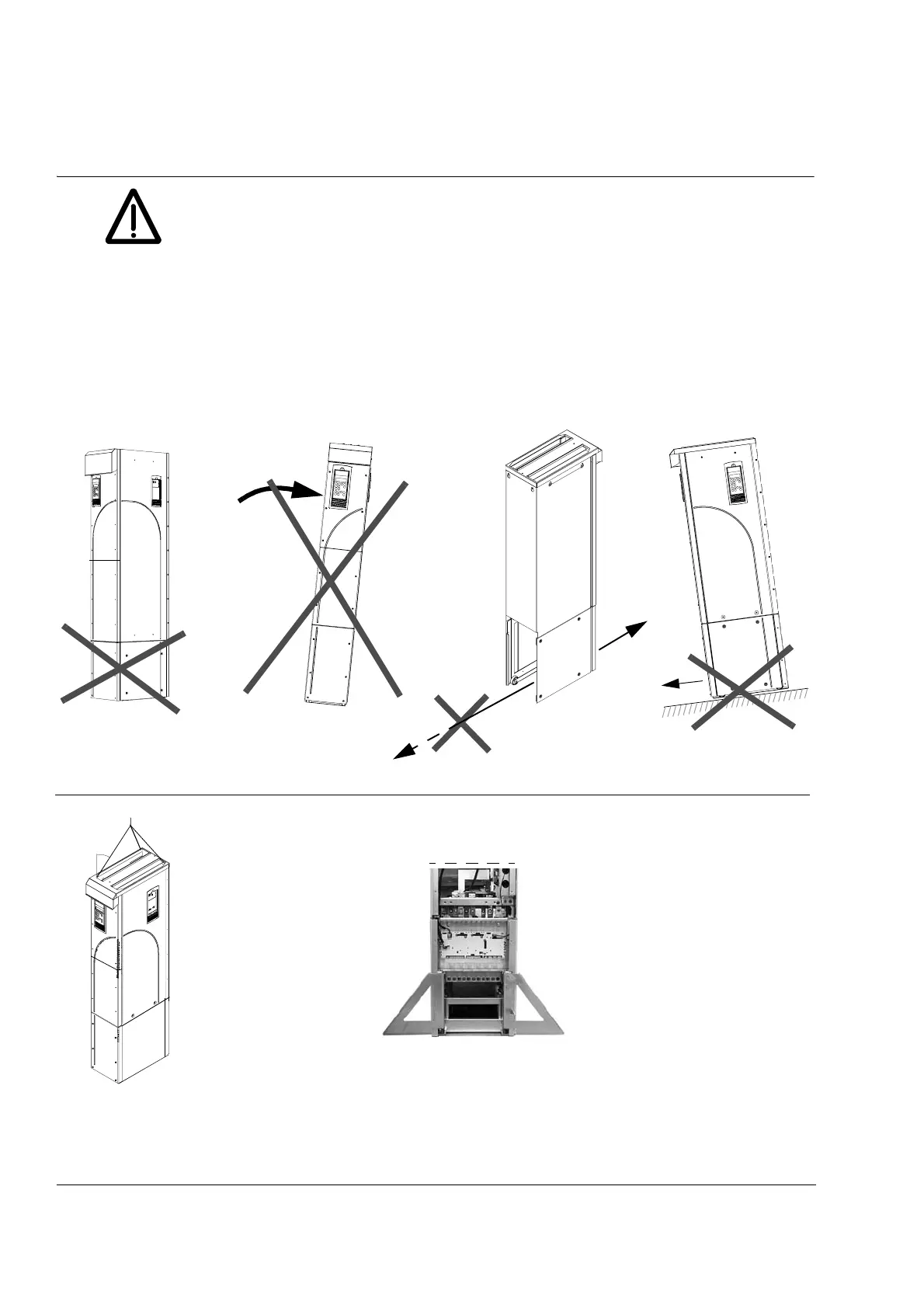

WARNING! The drive is heavy [frame size R7: 100 kg (220 lb), frame size R8:
230 kg (507 lb)]
. Lift the drive by the upper part only using the lifting lugs attached to
the top of the unit. The lower part will be deformed from lifting. Do not remove the
pedestal before lifting.
Do not tilt the drive. The centre of gravity of the unit is high. The unit will overturn
from a tilt of about 6 degrees.
Do not wheel the drive except for installation (the front direction is preferable
because the front wheels are steadier). The drive frame may be deformed from
wheeling when the pedestal is removed. If the drive is moved over long distances,
place it on its back on a pallet and move it by fork-lift.
Do not lift by the lower
part of the frame.
M
a
x
3
0
°
Front
Back
Do not tilt!
Do not wheel over
long distances.
Frame size R8:
The support legs must be locked to open
position during the installation and
always when wheeling the unit.
