￭ ACS880-11 and ACS880-31 frame R6

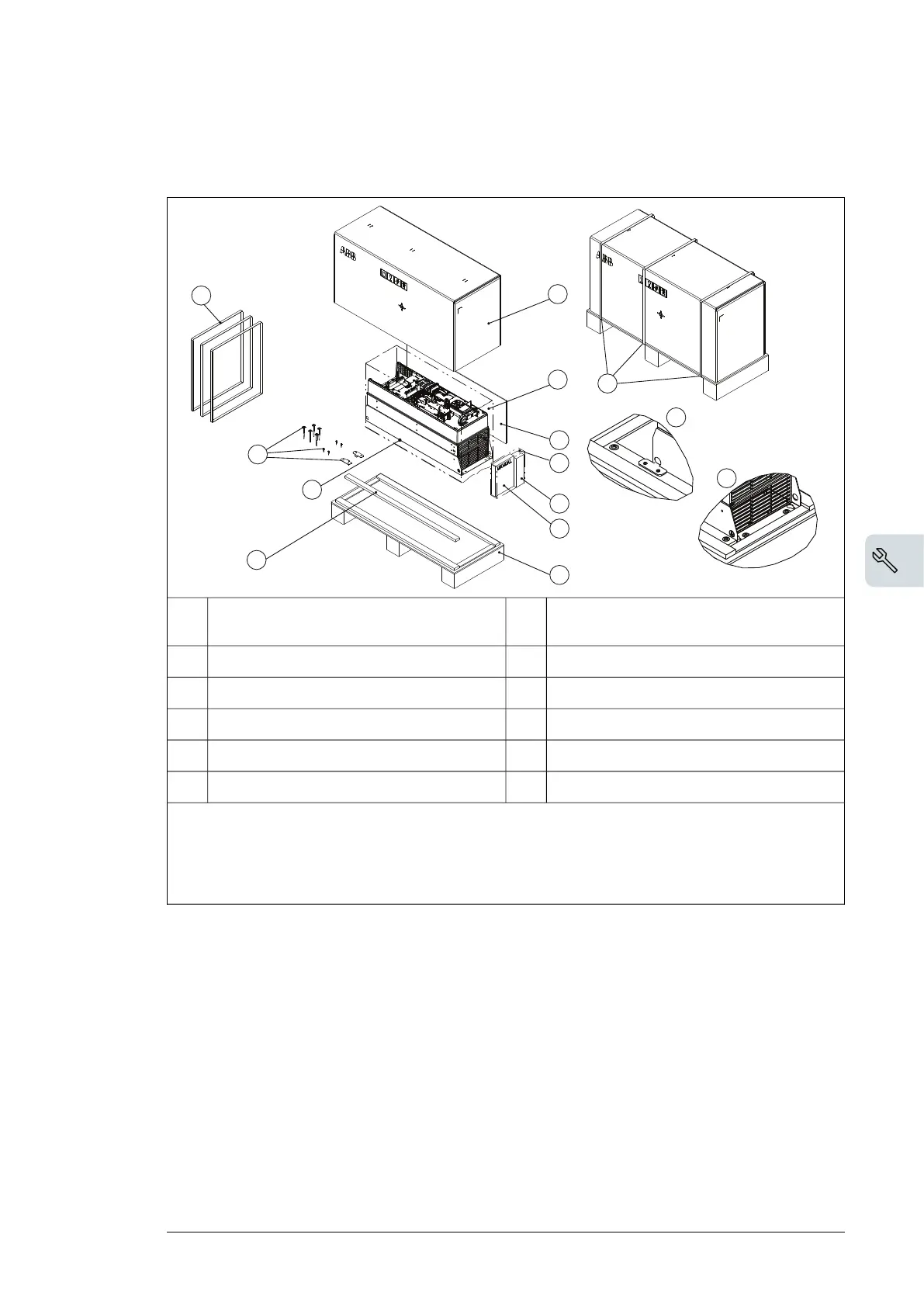

The figure below shows the drive package with its contents.
a
b
4
7
9
3
5
2
1
8
10
6
11
4
3AXD50000038252
Cardboard cover7Printed quick guides and manuals, multilingual
residual voltage warning sticker
1
Pallet8Accessories2
VCI bag9Mounting template3
Plywood support10Straps4
Packing brackets and screws11Plastic bag5
Drive with factory installed options6
To unpack:
• Cut the straps (4)
• Remove the cardboard cover (7)
• Undo the attaching screws (b) and packing brackets (a)
• Attach lifting hooks to the lifting eyes of the drive module. Lift the drive module with a hoist.
Mechanical installation 29
