ABB C1900 Series User Manual

15
Timer Option
bIAS
0.0
100.3
110.5
PrG 1
rAMP
SEG 12
t–– h
rPt-Ct
3
tIME
12:00
dAtE
24 JAN
No Timer Option
100.3
110.5
StOP
rAMP
SOAK
HOLd
H–HOLd
r–HOLd
r–rA–P
ENd
Profile Option
bIAS
0.0
E––h
Alternates
between the two
displays when
extended soak is
selected.
E––h displays
amount of time
soak extended
by.

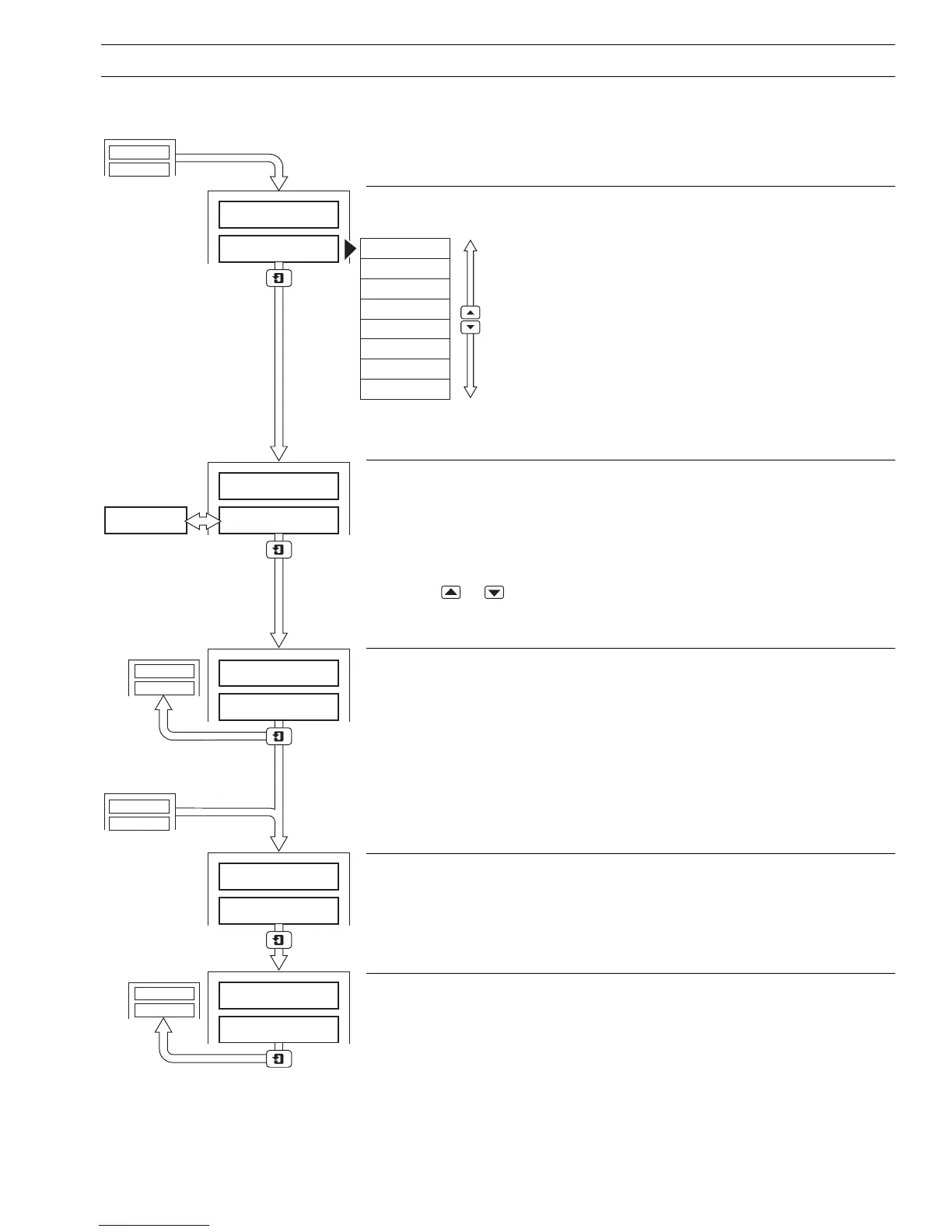

5 CONTROL OPERATION…
…5.2 Operating Page Displays
Profile Program Selected
Profile Status:
StOP – waiting for run command, profile is inactive
rAMP –program is running and ramping
SOAK –program is running and soaking
HOLd – operator hold or controller is in manual
H–HOLd – holdback hold in hold, due to guaranteed ramp/soak
hysteresis values being exceeded
r–HOLd –retort function has placed controller in hold
r–rAMP –retort function is ramping set point back to soak value
END – current program is completed but digital input signal is
in 'Run' state.
Current Profile Segment
Time Remaining
Time remaining until the end of the current segment (in minutes or hours), depending
on the
Ramp/Soak Time Units set in the Profile Control Page, Advanced Software
Options Manual. 'h' is displayed if hours are selected.
Use the
or keys to add or subtract the extended time from the soak time.
Refer to the Profile Control Page. If the extended soak value is set to '0' the Time
Remaining feature is disabled.
Repeat Count
Remaining number of times the current profile is to be repeated.
Current Time
Time (displayed using 24hr clock)
Current Date
Day and Month
