ABB C1900 Series User Manual

4
Lift the chart clamp
and remove the chart
Fit new chart ensuring
that it is beneath the
pen lifter bars
Locate chart
under guides
Rotate chart to align the
time line with the red pen
(see also Fig. 2.1)
Lower the chart clamp
A
L
R
M
T
A
T
M
A
N
75.0
dEG F
Raise pens
1
2
3
4
5
6
6
Lifter bars
Ensure that the arm is
positioned above its lifter
bar
7
Slide pen assembly onto
the appropriate bracket
until it clips into place –
see
Note
3
Remove spent
capsule
5
4
Remove cap
Fit new pen capsule
ensuring that the arm
locates in the pen
capsule slot
A
L
R
M
T
A
T
M
A
N
75.0
dEG F
Raise pens
1
Gently pull the arm off
the bracket – see
Note
2
…2 SETTING UP

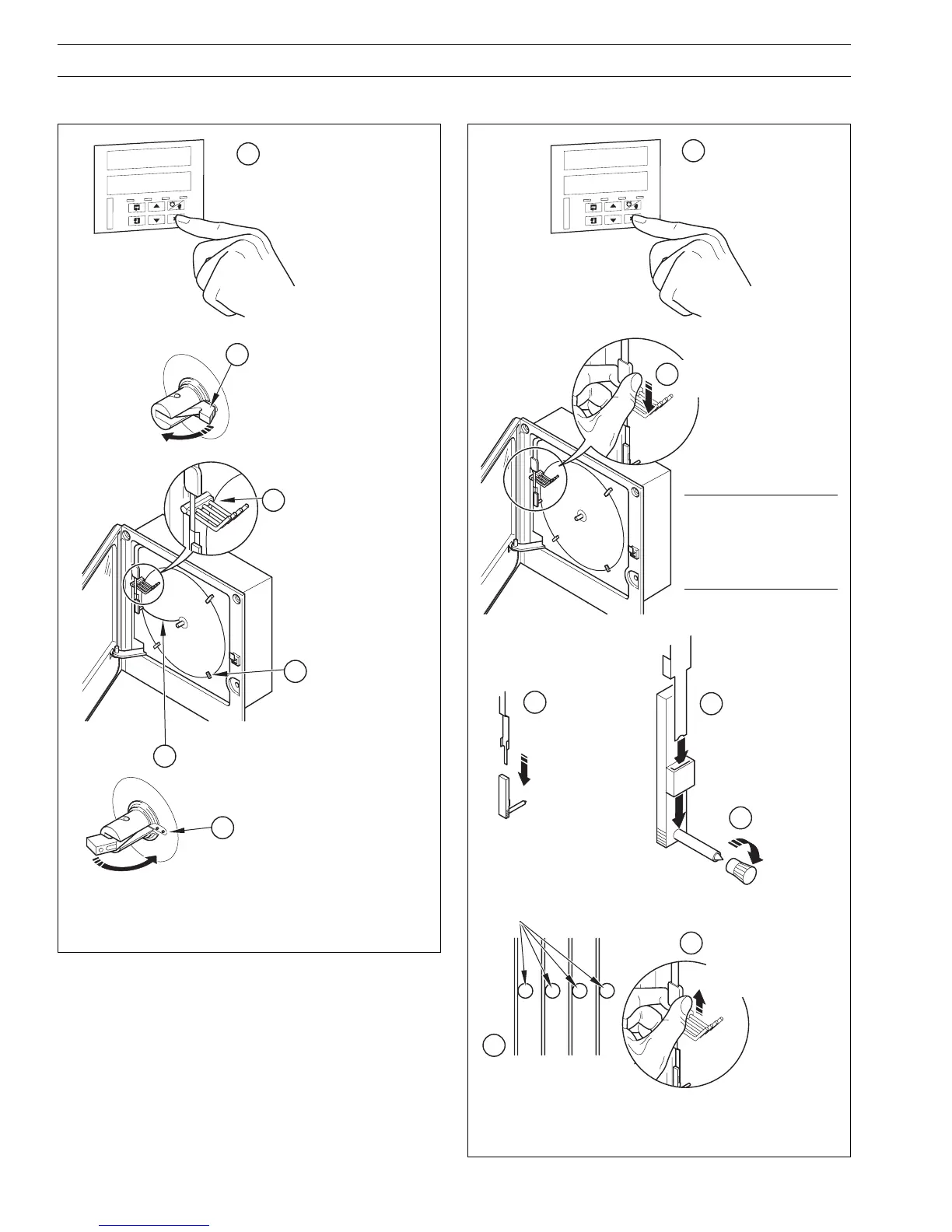

2.2 Fitting the Chart – Fig. 2.4 2.3 Fitting the Pen Capsule(s) – Fig. 2.5
Fig. 2.4 Fitting the Chart
Note. Take care not
to bend the arms
during removal and
refitting, as pen
clashing may result.
Fig. 2.5 Fitting the Pen Capsules
