Mounting the
speed control
device
Speed control device

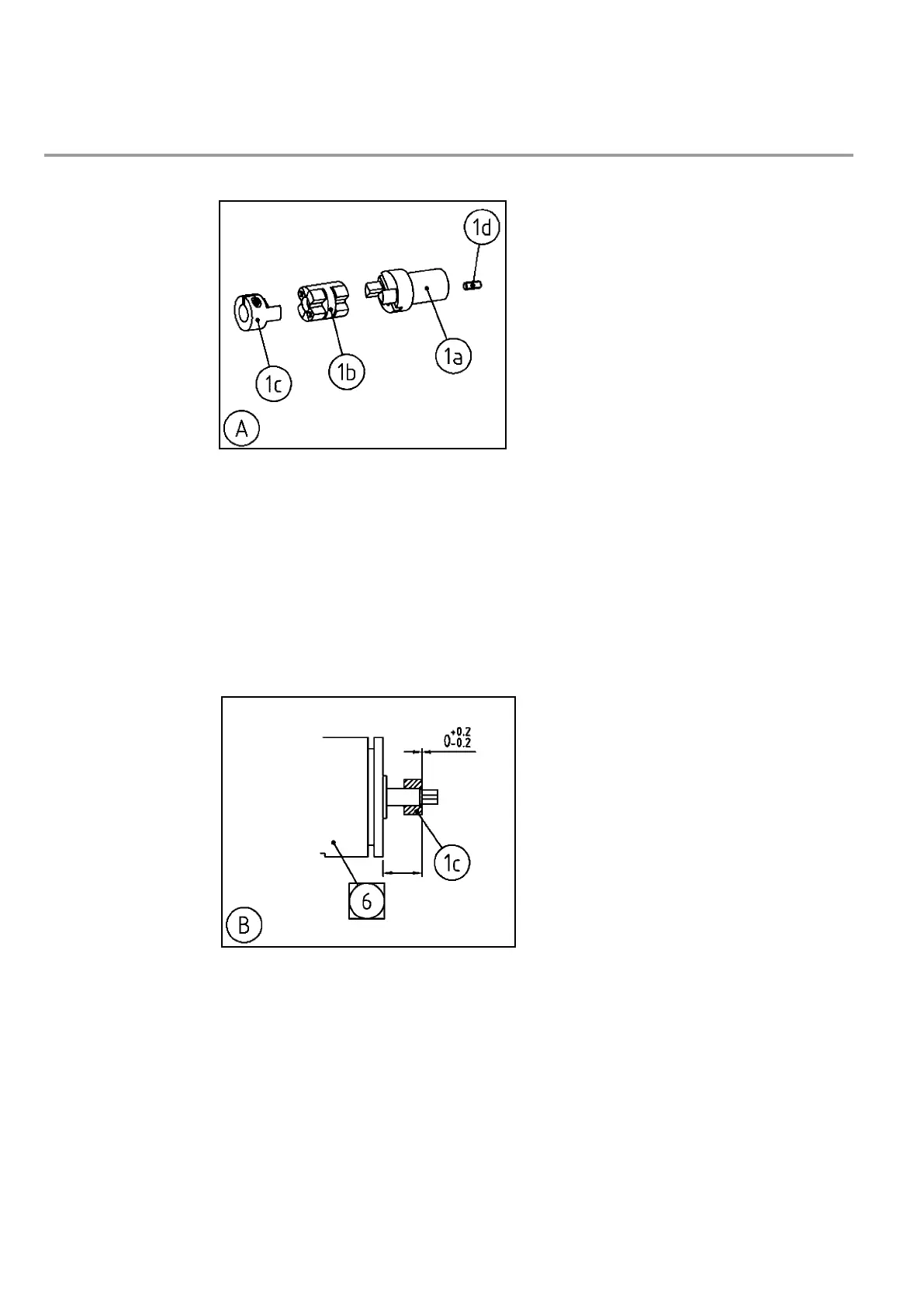

1. Split the coupling (1) into three parts (A).
2. Make sure that grease and dirt are removed from the shaft hole.
3. Mount the part from the coupling (1a) inside the rotor shaft and tighten it with a
screwdriver.
4. Lock the part from the coupling inside the shaft with the set screw (1d).
Check the dimension.
5. Lubricate plastic parts on the middle part of the coupling (1b) with
paraffin oil and assemble it on the part inside the shaft.
6. Assemble the last part of the coupling (1c) with the shaft of the speed control device.
(6). Check the distance (B).
For Leine & Linde speed control devices:
7. Assemble the speed control device on the tachoadapter (2) with three bolts (5).
8. Assemble the adapter package on the bearing cover with four bolts and washers
(3+4). Tightening torque M6 10Nm for shaft heights 180-280 or M8 24.5 Nm
for shaft heights 315-400 with a dynamometric wrench. Be gentle when pressing
the coupling parts together. Maximum axial assembly force 100N.
