Heat exchangers
Changing the water connection direction
1. Remove screws holding the cooling coil and
the cover.
2. Slide the coil out of the housing and rotate as
shown above.
3. Slide the coil into the housing and replace the
screws.
4. Replace the cover at the opposite side.

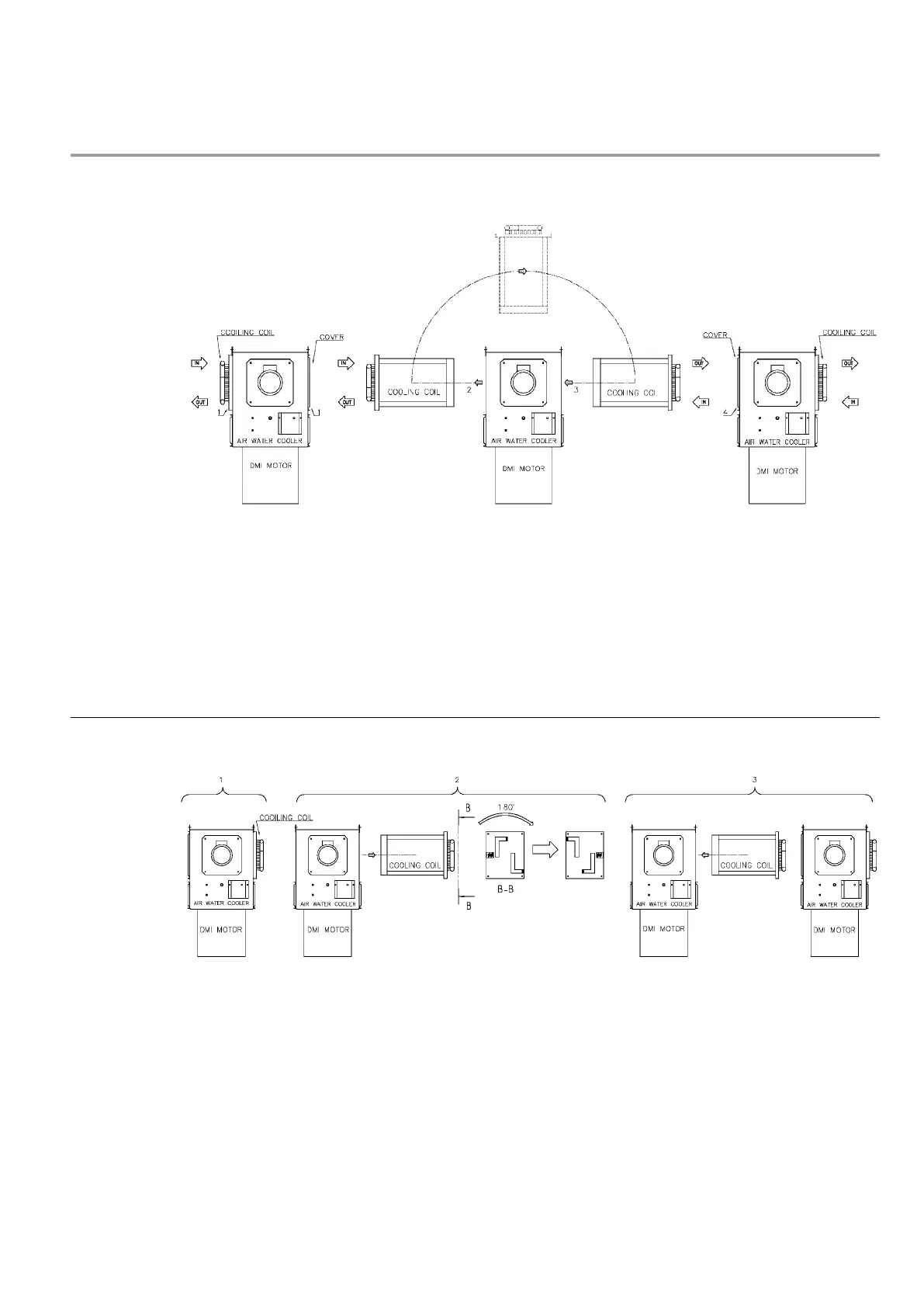

Figure 22
1. Remove screws holding the cooling coil.
2. Slide the coil out of the housing and rotate it
180° according to the picture above.
3. Slide the coil back into the housing and re-
place the screws.
Figure 23
