Speed control device
For POG, REO and TDP speed control devices:

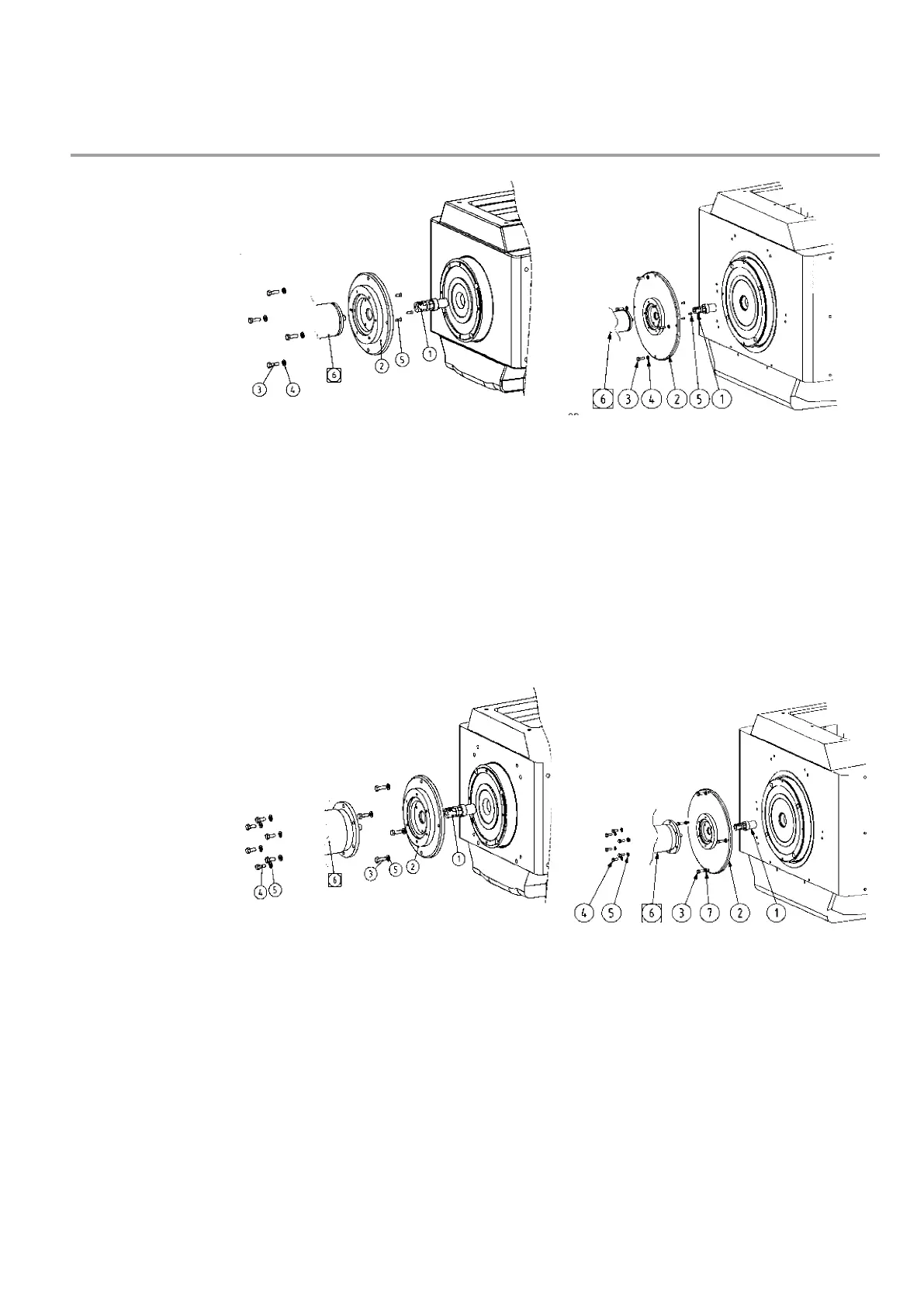

7. For shaft heights 180-280; assemble the adapter (2) on the bearing cover with four
bolts and washers (3+5). Tightening torque M6 10Nm with a dynamometric
wrench. For shaft heights 315-400; assemble the adapter (2) on the bearing
cover with four bolts and washers (3+7). Tightening torque M8 24,5Nm with a
dynamometric wrench.
8. Assemble the speed control device (6) on the tachoadapter (2) with six bolts and
washers (4+5). Be gentle when pressing the coupling parts together. Maximum
axial assembly force 100N.
