Using the control panel
3ADW000480R0101 DCS880 Quick guide e a
Using the control panel
Refer to ACS-AP-x assistant control panels user’s manual (3AUA0000085685) for detailed information.
Basic operation
What this chapter contains
The chapter describes the basic operations and components of the user interface, lists common user tasks and
gives short instructions on how to complete them.

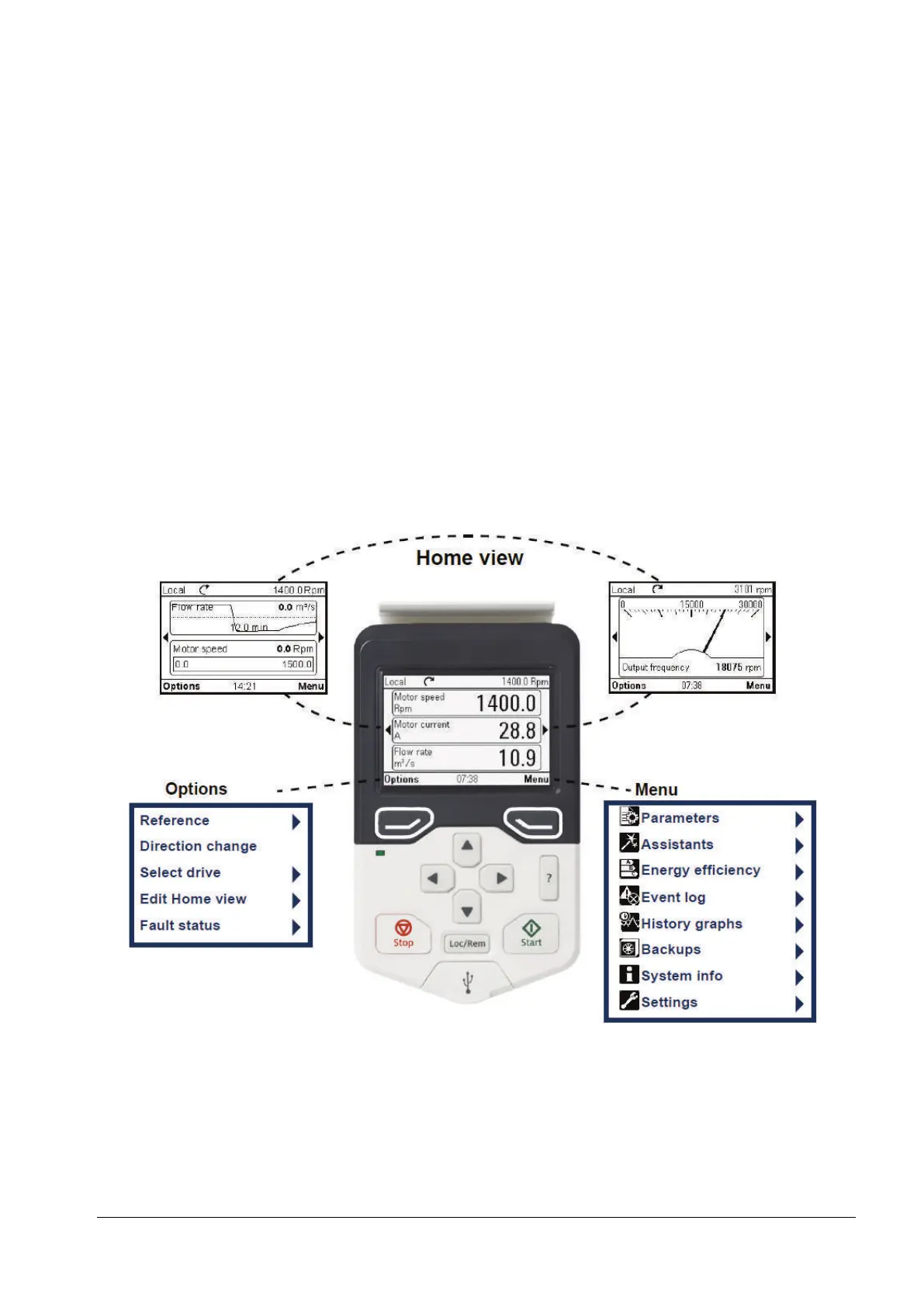

User interface overview
The user interface has the following main components:
− The Home view through which you can monitor signals.
− The main Menu through which you can access most functions of the control panel. The Menu functions are
described in detail in chapter Functions in the main Menu.
− The Options menu through which you can set a reference, select the drive, edit Home view pages, and see
the fault and warning status. The Options menu is described in detail in chapter Functions in the Options
menu.
− The Help view which provides advice in many situations.
− Faults and warnings view which appear when the drive or the control panel experiences an error.
Control panel navigation
Use the arrow keys and softkeys for navigation. Follow the choices on the screen.
