ABB FPBA-01 PROFIBUS DP User Manual

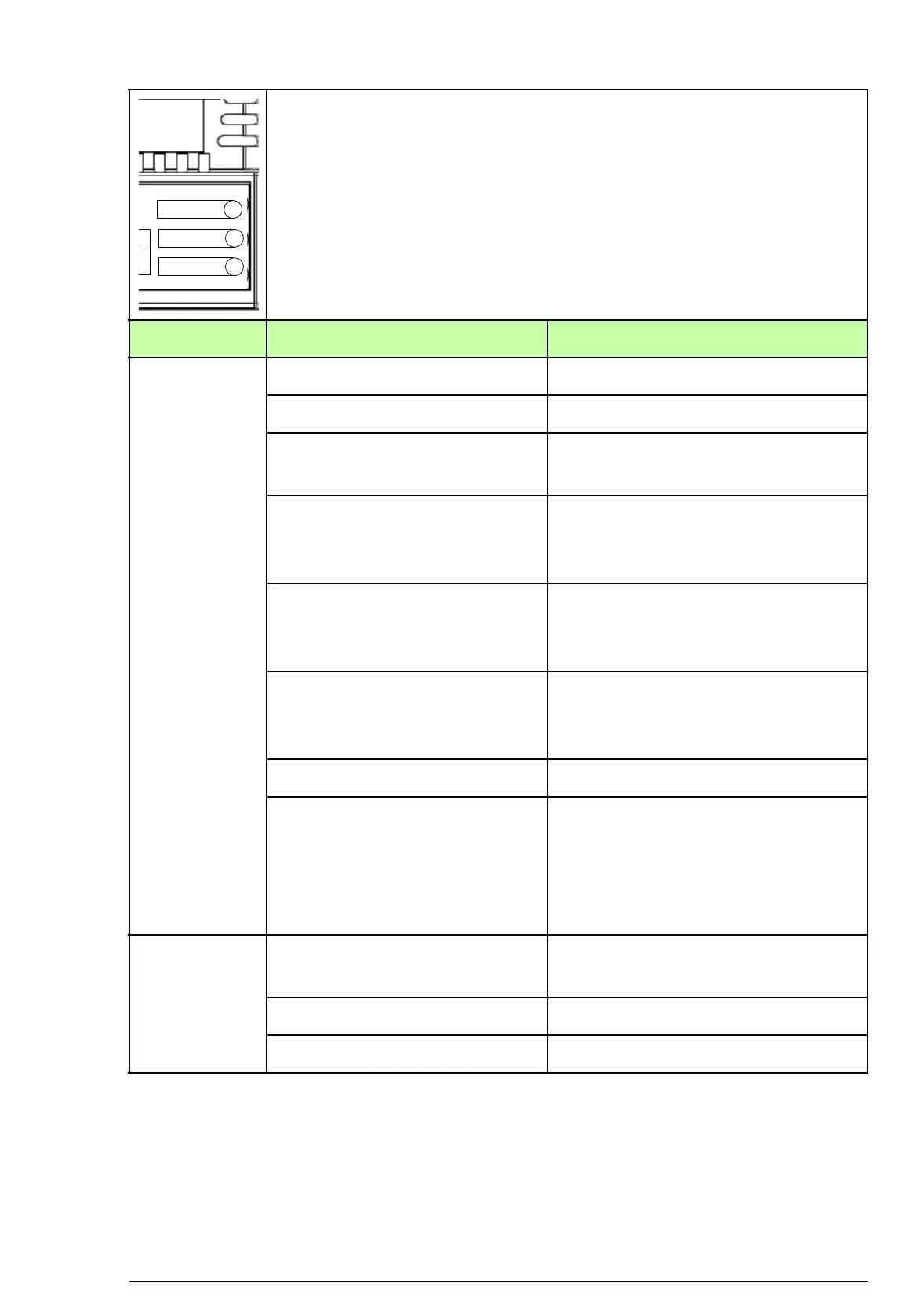

Diagnostics 177
MODULE
Green Module status OK
Blinking red Configuration mismatch
Blinking red in unison with
HOST (blinking red)
Establishing communication to
host
Blinking green in unison
with NETWORK (blinking
red)
Network connection lost
Blinking green once per
second with NETWORK
steady green
No communication with this
node
Blinking green 3 times per
second with NETWORK
steady green
Only Class 2 master
connection (no cyclic
communication established)
Red Module fault
Flashing orange,
alternating with the HOST
flashing orange
Internal file system error. The
error may be cleared by
cycling drive power. If the error
persists, contact your local
ABB representative.
NETWORK
Blinking green Establishing network
connection
Green Network connection OK
Blinking red Network connection lost
Name Color Function
HOST
MODULE
NETWORK
RK

ABB FPBA-01 PROFIBUS DP Specifications

General

Brand	ABB
Model	FPBA-01 PROFIBUS DP
Category	Adapter
Language	English
