Installation
and
commissioning
guide
2750
515-1
EN,
REV
.
14,
2020-06-26
39
4.6.4
Installation
of
the
bushing
on
the
transformer

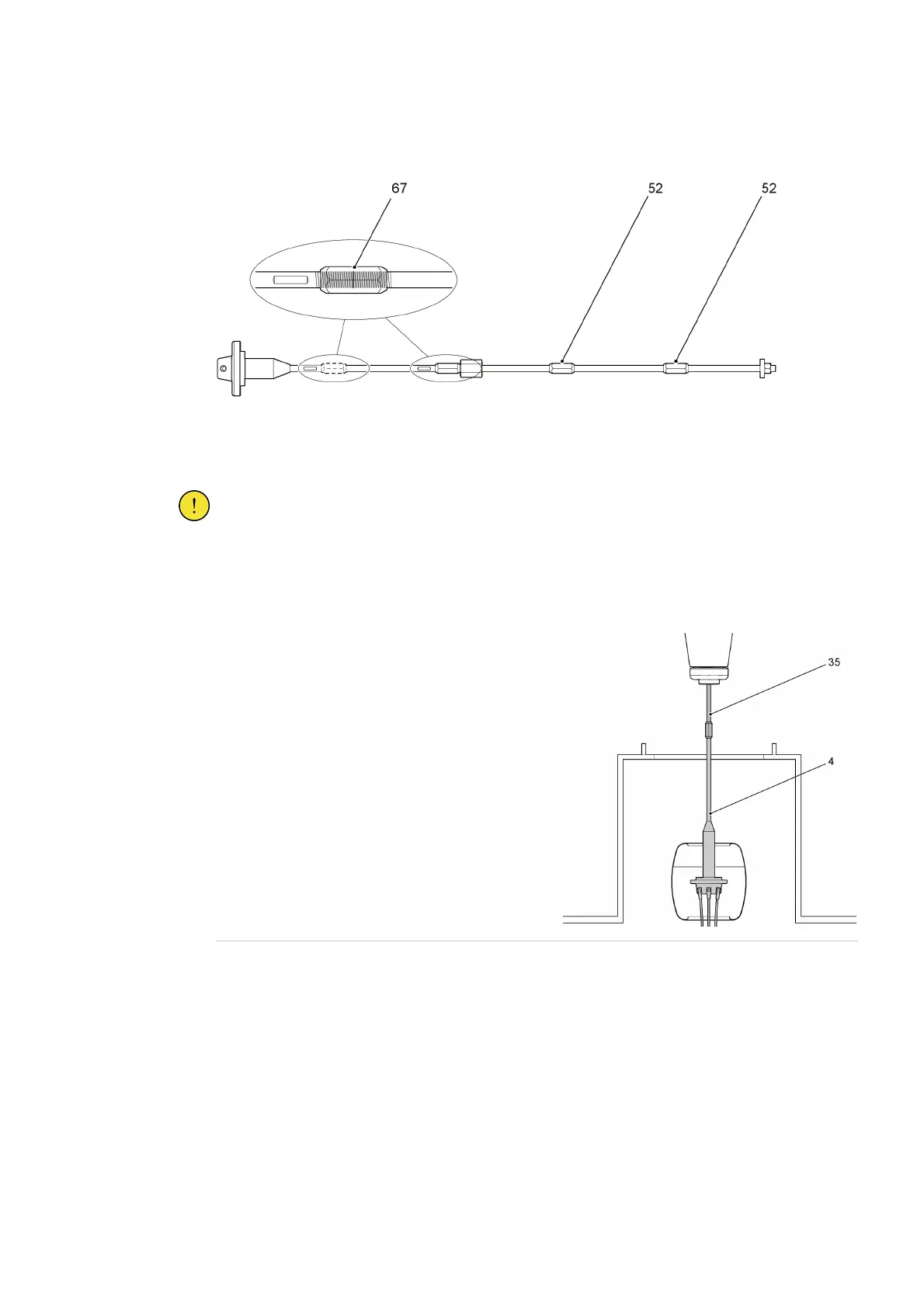

Overview
It
is
important
to
install
the
draw
rod
correctly
,
thus
the
ends
of
the
draw
rod
parts
must
make
contact
at
(67).
G006788
CAUTION!
Do
not
disassemble
the
joints
(52),
these
are
correctly
assembled
and
locked
with
tread-locking
fluid
by
ABB.
Procedure
1.
Connect
the
upper
draw
rod
(35)
to
the
lower
draw
rod
(4).
G005038
38
40
