Installation and commissioning guide
2750 515-1 EN, REV. 14, 2020-06-26
7
2 Product description
2.1 Design
Overview
The GOE is a capacitance graded oil impregnated paper bushing made for immersed oil/air service.
For a detailed description, please refer to the Technical guide, 1ZSE 2750-105.

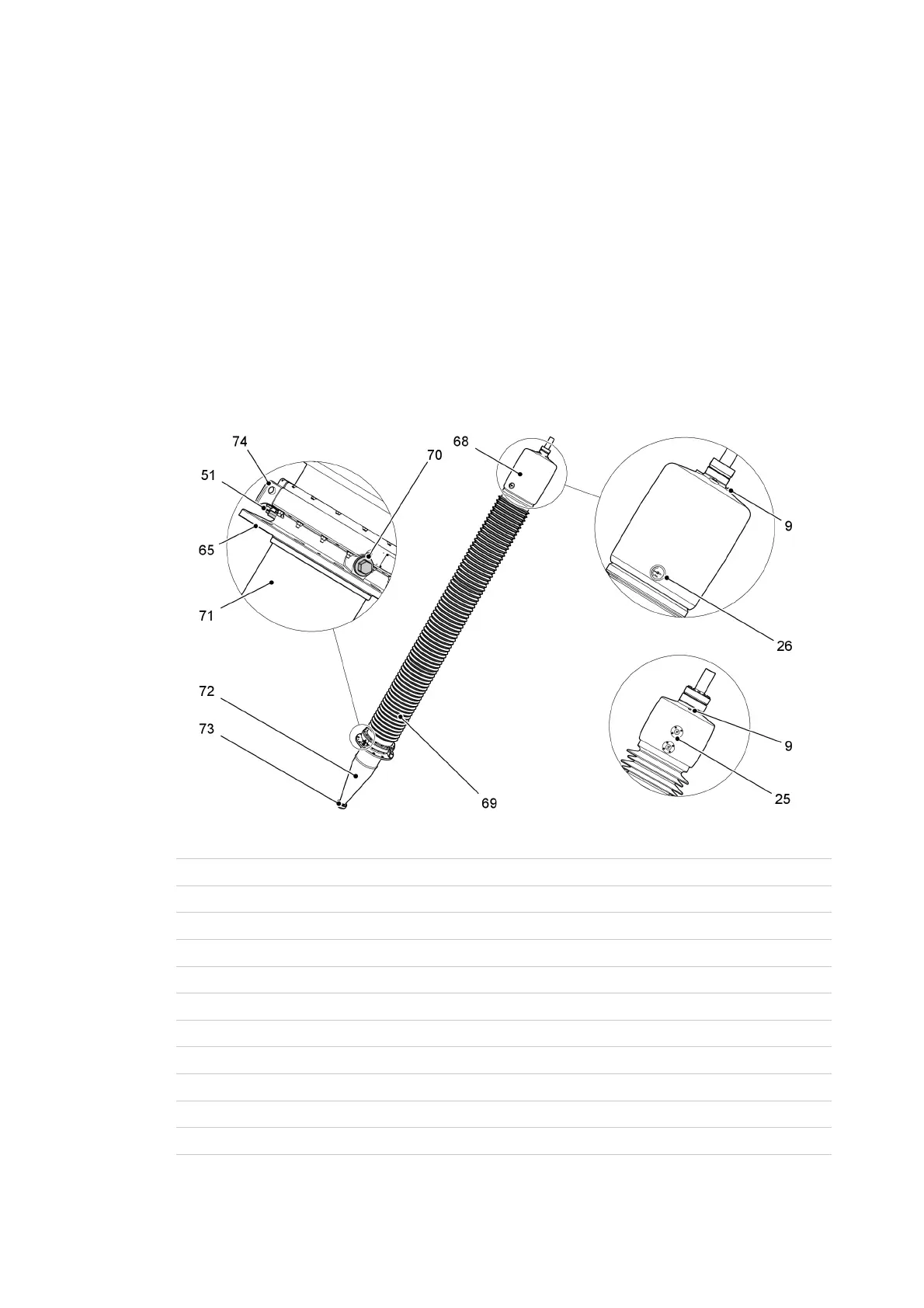

General schematics
G006916
9 Oil plug
25 Sight glass, GOE 250 to 950
26 Oil-level gauge, GOE 1050 to 2550
51 Oil sampling valve ¼”
65 Mounting flange
68 Top housing
69 Porcelain insulator, air side
70 Test tap
71 Extension for current transformer
72 Porcelain insulator, oil side
73 Bottom nut
74 Lifting eye
