4.5 Adjusting the device

Pos: 71 /DinA4 - Anleitungen Onli ne/Ueberschrif ten/3./Abschlus swiderstand @ 19\mod_1 321958079906_ 15.docx @ 1100 83 @ 3 @ 1

Pos: 72 /DinA4 - Anleitungen Onli ne/Inhalt/KN X/DoorEntry/Be dienung/Abschl usswiderstand se tzen 83220- AP-xxx @ 1 9\mod_131072 3392369_15.d ocx @ 1078 41 @ @ 1

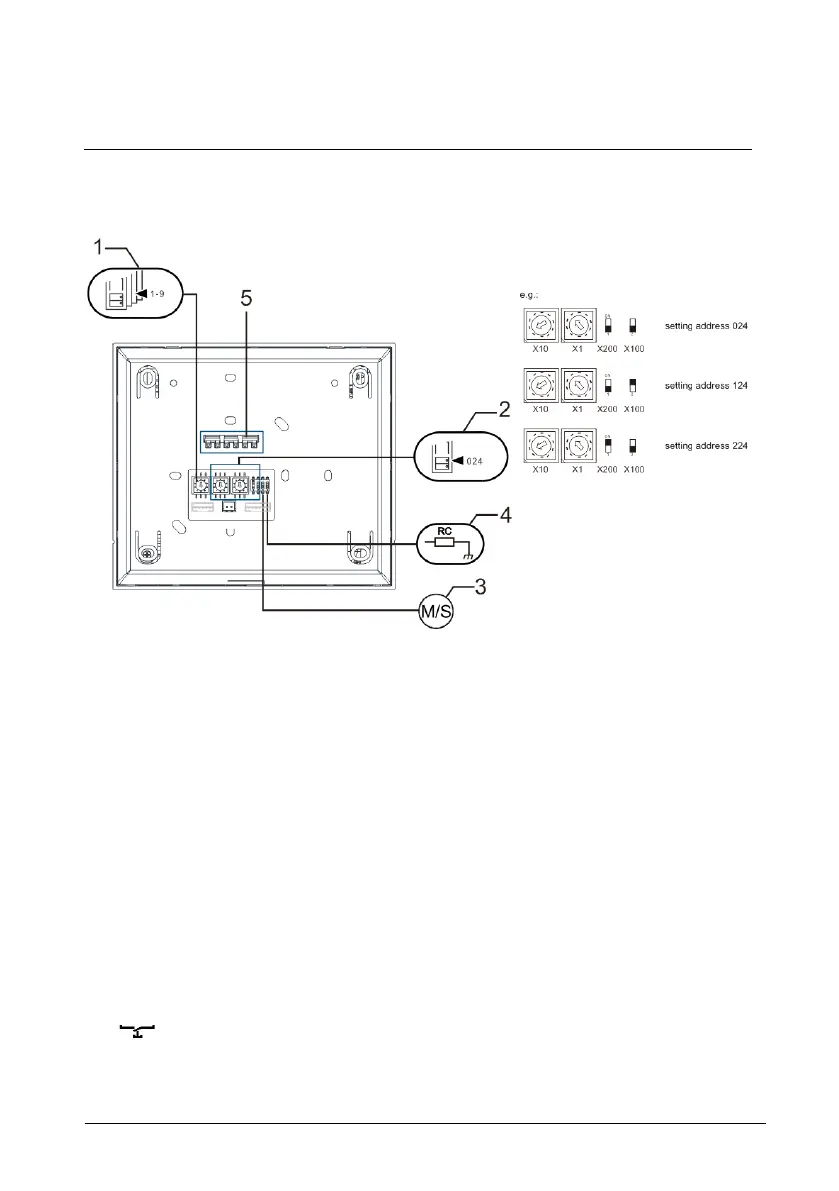

Fig.

Pos: 74 /DinA4 - Anleitungen Onli ne/Inhalt/KN X/DoorEntry/Be dienung/Mast er/Slave Schalter s etzen 83220-AP- xxx @ 19\mod_1310 723320966_1 5.docx @ 10 7833 @ @

1. Station

Selector switch to set the address of default outdoor station.

2. X10 X1

Selector switches to set the address (tens and units digits) of the indoor station.

X200 X100

Dip-switches to set the address (hundreds digits) of the indoor station.

3. Master /Slave function

Only one indoor station in each apartment must be set as "Master" (Switch should

be set as 'M/S on'). All additional indoor stations in the same apartment must be

set as "Slave" (Switch should be set as 'M/S off').

4. Terminal resistor

In video installations or mixed audio and video installations, the Switch must be

set as 'RC on' on the last device of the line.

5. a b = Bus connection

= Door bell connection

DC GND = Additional power supply

6. Connector for induction loop
