- 143 -
000845BG
7 - Operation

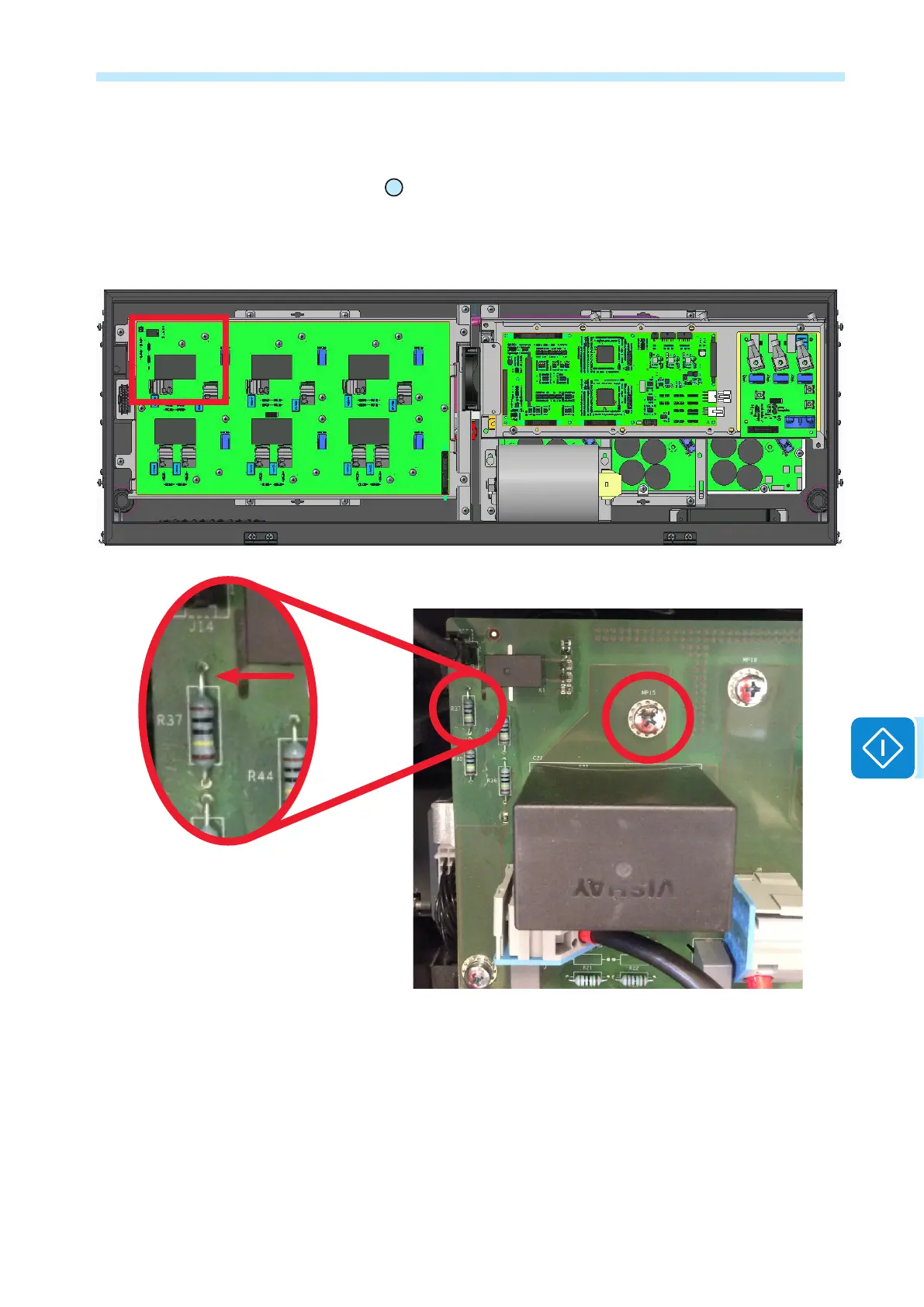

13. Voltage Absence Check on DC Bulk Capacitor
• Check there is no voltage on the DC Bulk (inside the power module
01
), measuring between:
Check Bulk Positive: R37 and PE
Check Bulk Negative: MP15 and PE
