ABB PVS-175-TL Quick Installation Guide

18 Quick Installation Guide - PVS-175-TL “A.1 Version”
EN

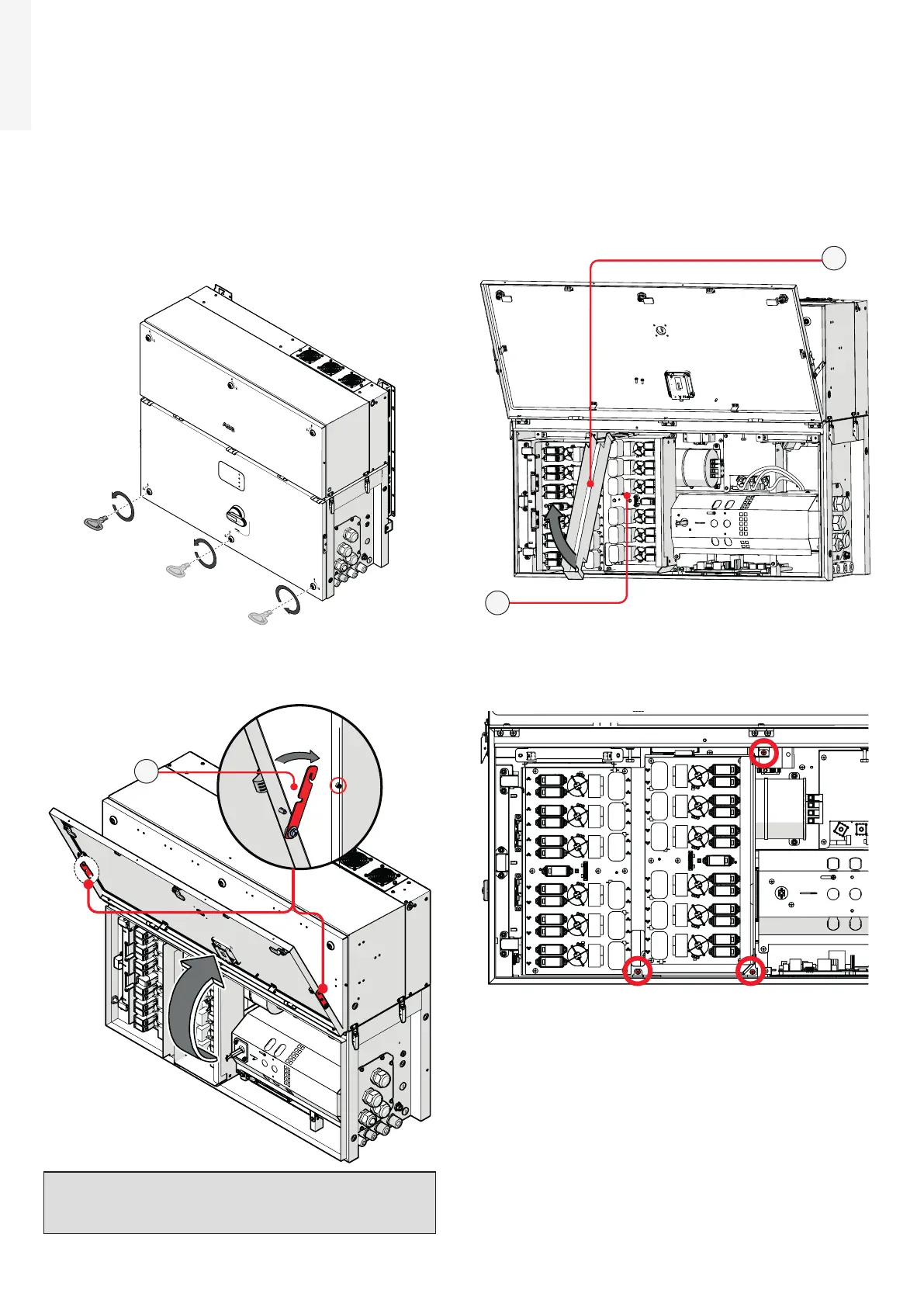

7.3 Opening the Wiring box cover
• Using the key tool provided with the installation
kit content in the wiring box package, open the
three cover quarter cam locks (05) following the
proper ways as shown in the related silkscreens
on the Wiring box cover (07).
• (only for -S2, -SX2 version) Set the wiring box AC
disconnect switch (09) to OFF position; otherwise
it will not be possible to open the Wiring box
cover (07).
PVS
• Open the Wiring box cover (07) and use the cover
support brackets (15) to lock the cover (07) in
open position.
15
ATTENTION – A Pay attention to properly
secure the cover support brackets (15) in
order to avoid falling of the cover!
7.4 Final fastening operations
In order to reach the two junction screws (20) and
complete the power module and wiring box mating,
the DC surge arrester plate (21) has to be opened
as follow:
• Remove the DC cable duct (22) from the DC surge
arrester plate (21).
22
21
• Remove the three M5 screws from the DC surge
arrester plate (21).
