Left Up Down Right Enter Clear/
Cancel
Clear/
Cancel
A040225

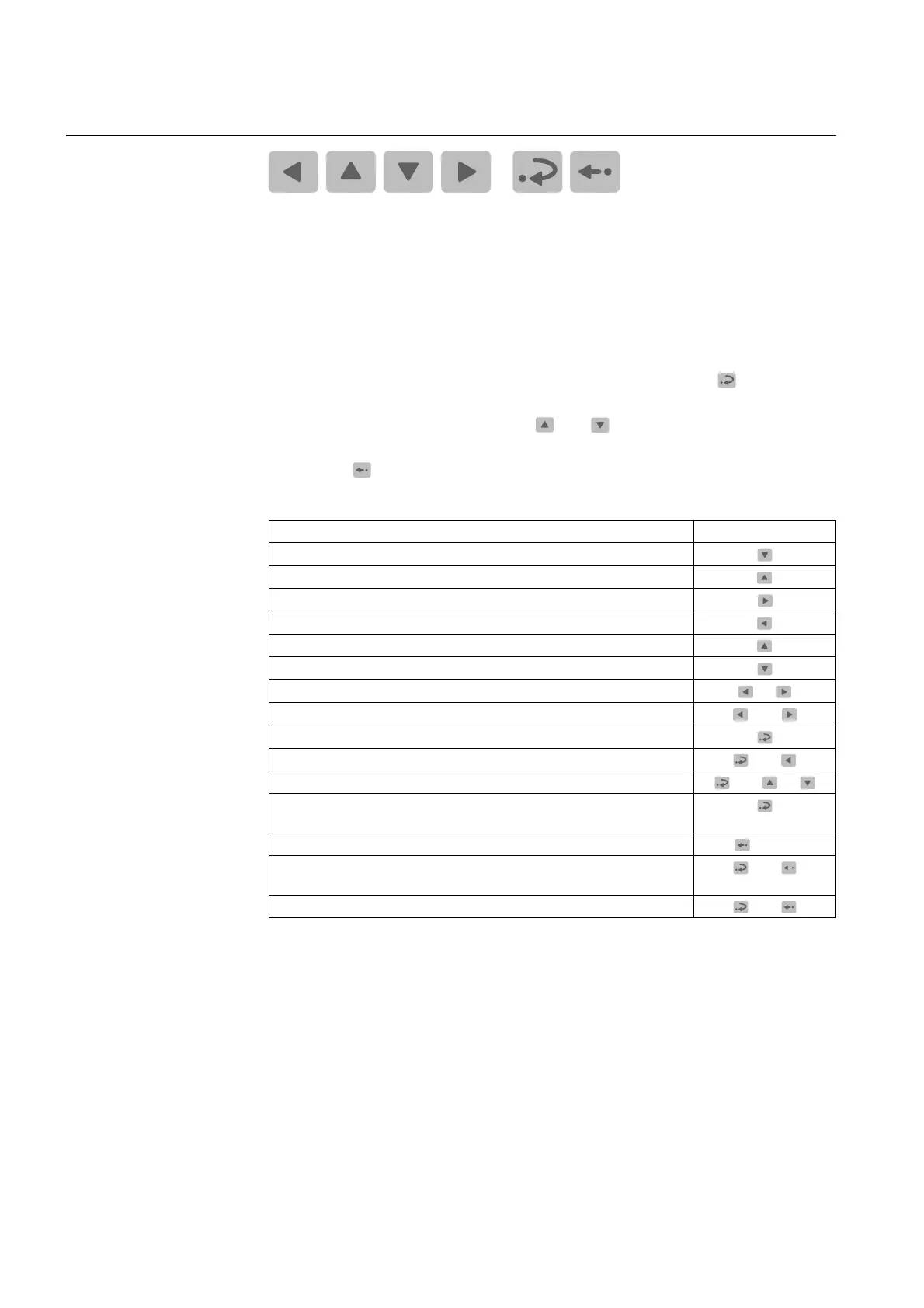

Fig. 4.1.2.-1 Navigation push buttons
Use the navigation buttons to view, select and edit the wanted menu items.
*
Activate the main menu by pressing an arrow button.
*
Move between the menu levels and menu items by using the arrow buttons.
*
Select the item to be edited or store a new value by pressing .
*
Increase or decrease the activated digit, shift the activated decimal point, or
navigate between options by using
and .
*
Cancel and return the display to the previous mode (view mode or idle mode), by
pressing
Table 4.1.2.-1 Button navigation and editing
Wanted step or operation Push button
Step downward in the main menu or a submenu
Step upward in the main menu or a submenu
Entering a submenu from the main menu or a higher submenu
Leaving a submenu for the main menu or a higher submenu
Increasing a value in the setting mode
Decreasing a value in the setting mode
Moving the cursor in the setting mode
or
Selecting the front connection at power up
and
Entering or leaving the setting mode, storing a new value
Entering the monitoring state
and
Adjusting the display contrast
and or
Resetting or canceling, leaving the setting mode without storing a
new value
Resetting latched output contacts in the idle mode
for 5 s
Acknowledging and resetting targets, latched output contacts and
memorized values
and
Resetting thermal level to 0 at power up
and
4.1.3. Display
4.1.3.1. Display test at power up
When connecting the auxiliary voltage to the relay:
16
REF 610REF 610
Feeder Protection Relay
Operator's Manual - ANSI Version
1MRS755539
