ABB REF 610 User Manual

HMI PASSWORDS
TIME
TRIP CIRCUIT SUP
Main Menu
Group Menu
Parameter Menus
SETTINGS
CONFIGURATION
MEASUREMENTS
RECORDED DATA
CONFIGURATION
FREQUENCY :60
CONFIGURATION
FREQUENCY :50
FREQUENCY
CONFIGURATION
FUNCTION TEST/DI
COMMUNICATION
LANGUAGE
MEMORY SETTINGS
SETTING PASSWORD
CONFIGURATION
hh.mm;ss
CONFIGURATION
YY-MM-DD
TCS ENABLED
TCS DISABLED
INFO
OPERATION
COMM. PASSWORDS
STORE COUNTER
CONFIGURATION
STORE CNTR :0
A040262_2

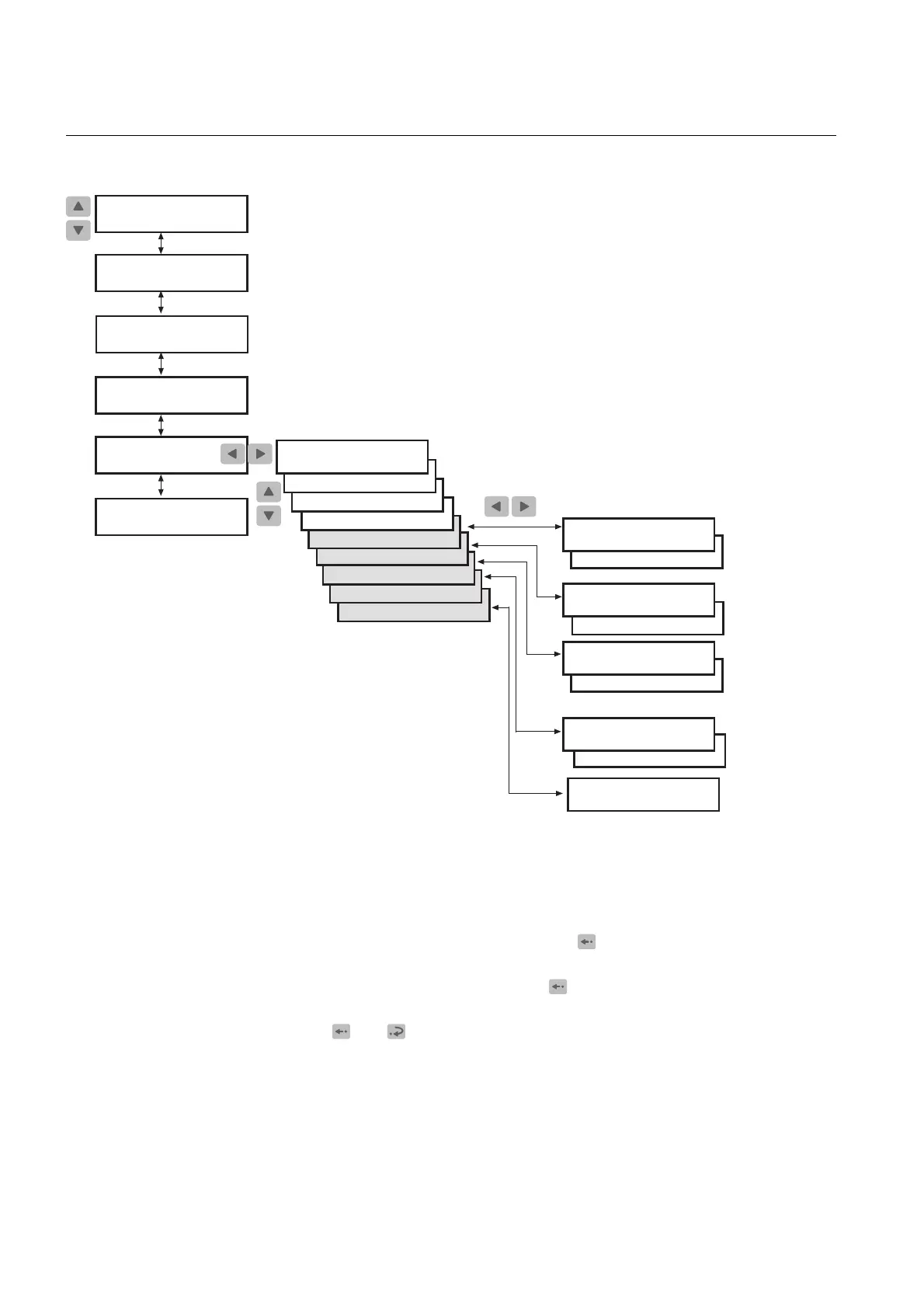

Fig. 4.2.2.3.-2 CONFIGURATION menu, part 2
4.2.2.4. How to acknowledge and reset targets, output contacts and
memorized values
*
To clear the LEDs and the display, press . The LEDs and the display are
cleared only if the fault has disappeared.
*
To unlatch the output contacts, press for at least five seconds. Note that the
LEDs and the display have to be cleared before this.
*
Press and simultaneously for at least half a second to perform a master
reset, that is, to clear targets and memorized values and to unlatch the output
contacts. The display being inverted confirms this action. Memorized values
include recorded data, disturbance recorder data and average values (demand
values).
38
REF 610REF 610
Feeder Protection Relay
Operator's Manual - ANSI Version
1MRS755539
