4.2.1.4. INFO menu group
The main menu group INFO contains information which you may need when
ordering repair service.
1. Press an arrow button to access the main menu.
2. Use the arrow buttons to select INFO and press to enter the first submenu.
The first submenu shows the device type, relay serial number, test date, the CPU
module as well as the optional DNP 3.0 communication module.
3. For specific information on the CPU module, use
to select CPU MODULE and
press
to view the CPU software number and revision. While in the CPU
software number and revision view, press
to view the CPU build number or
to view the CPU serial number.
4. Use the arrow buttons to monitor the corresponding information on the optional
DNP 3.0 communication module.
While in the DNP serial number view, press
to view the DNP protocol name.
5. To return the display to the idle mode, press
.
567 8
1
23 4
Main Menu
Parameter Menus
SETTINGS
CONFIGURATION
MEASUREMENTS
RECORDED DATA
REF 610
COM. MODULE
INFO
xxxxxxxx
YYYYMMDD
CPU MODULE
INFO
1MRS118512 A
INFO
1MRS118531 A
xxxxxxxx
xxx
xxxxxxxx
INFO
xxx
INFO INFO
Cancel
OPERATION
DNP 3.0
A040251_2

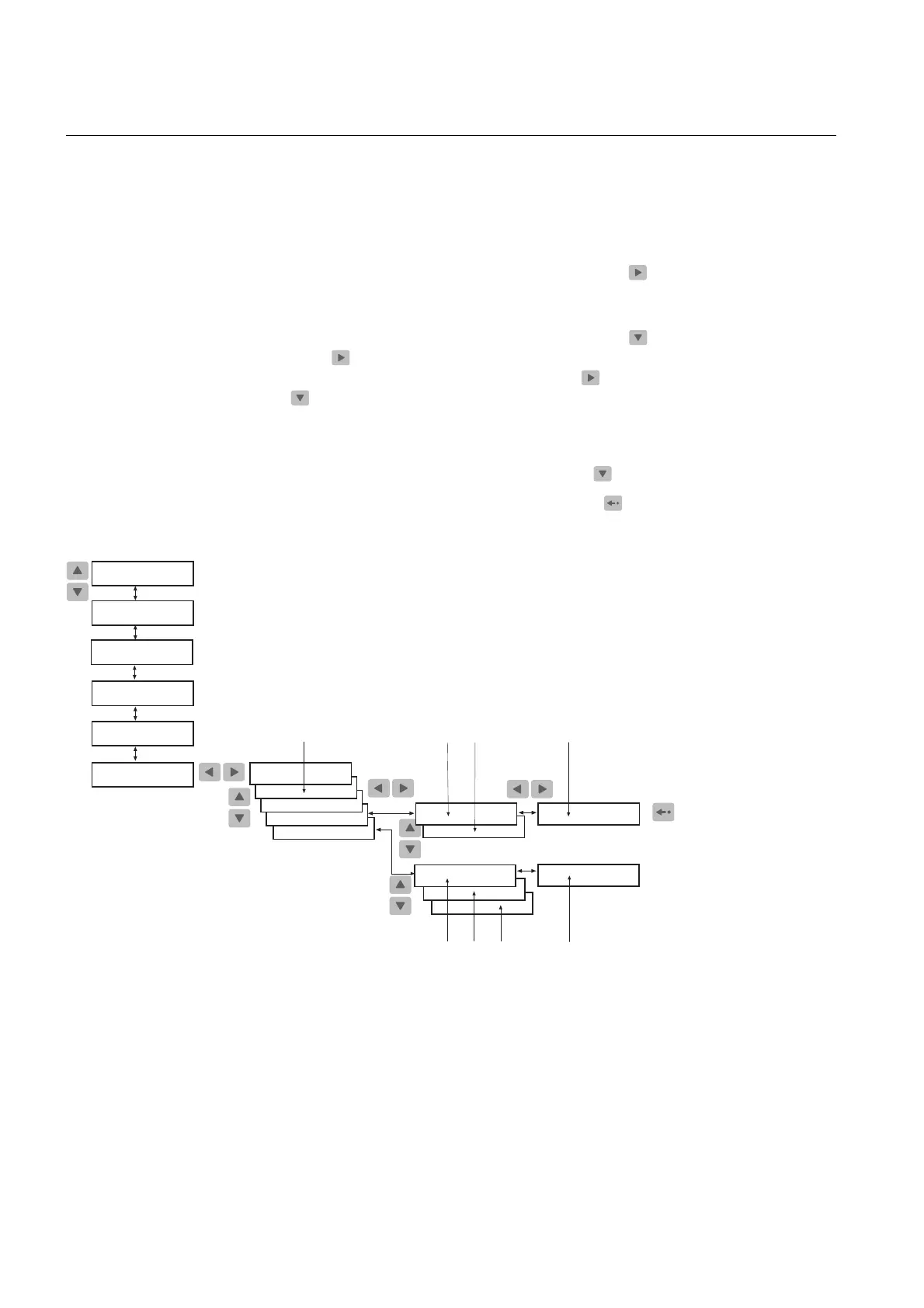

Fig. 4.2.1.4.-1 INFO menu group
1) Relay serial number
2) CPU module software number and revision
3) CPU module serial number
4) CPU module software build number
5) Communication module software number and revision
6) Communication module serial number
7) Communication module protocol name
8) Communication module software build number
