ABB SPAU 341 C User Manual

12

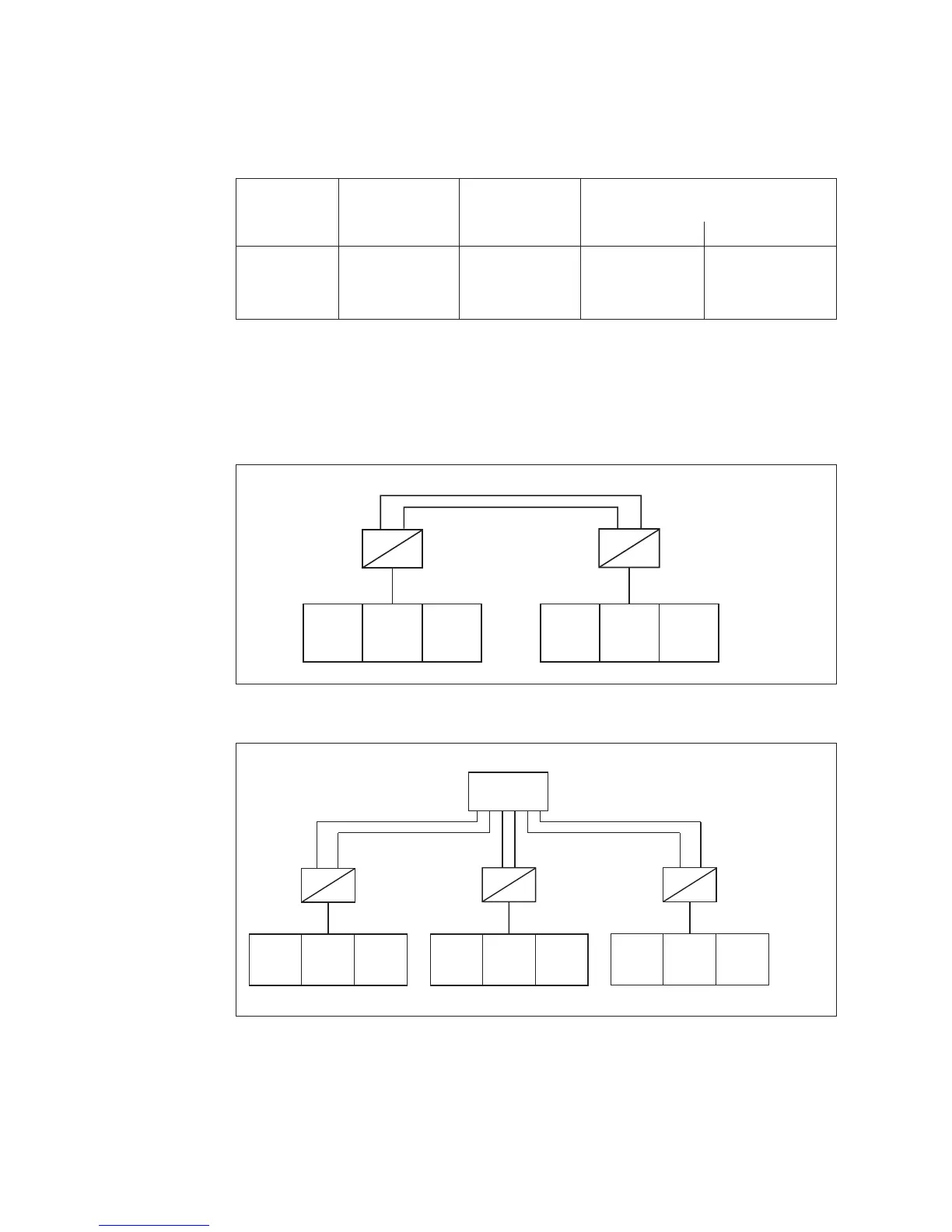

Fig. 4. Parallel operation of two regulators, using the minimizing circulation current principle.
Address codes
When two or more SPAU 341 C regulators are
operated in parallel, using the bus connection
modules SPA-ZC 100 as communication de-
vices, certain slave numbers have to be selected
for the regulating modules. The bus connection
modules SPA-ZC 100 can be ordered with fac-
tory configurations, adapted for these specific
regulator applications. The factory configura-
tion can be used when the parallel connected
regulators are working independently, without
being connected to a substation bus system. The
factory configuration of the bus connection
modules assumes that the address codes of the
regulating modules are as follows:
Regulator SPCU 1D50, SPCN 1D56, SPA-ZC 100 _
address codes address codes 1MRS 090704-xx
Plast fiber, xx= Glass fiber, xx=
Regulator 1 10 11 AB DB
Regulator 2 20 21 AC DC
Regulator 3 30 31 AD DD
If the regulators are to be connected to a sub-
station bus system, and the slave address codes
of the factory configuration interferes with the
previously selected codes, the bus connection
modules have to be reconfigured. During con-
figuration phase the monitor registers in sub-
menus 1…7 under register 3 of the SPCU 1D50
module, might be useful. The settings for par-
allel operation are described in detail in the
manual of the automatic voltage regulating
module, SPCU 1D50.
Fig. 5. Parallel operation of three regulators, using the minimizing circulation current principle.
SPAU 341 C1
Regulator 1
SPAU 341 C1
Regulator 2
LON
SPA
LON
SPA
Tx RX
Tx RX
Address:
10
Address:
11
SPCU 1D50
SPCN 1D56
Address:
20
Address:
21
SPCU 1D50
SPCN 1D56
SPA bus
SPA bus
SPA-ZC 100 BB - AB (Plastic) or
MM - DB (Glass)
SPA-ZC 100 BB - AC (Plastic) or
MM - DC (Glass)
LON bus
SPAU 341 C1
Regulator 1
SPAU 341 C1
Regulator 2
LON
SPA
LON
SPA
Tx RX
Tx RX
Address:
10
Address:
11
SPCU 1D50
SPCN 1D56
Address:
20
Address:
21
SPCU 1D50
SPCN 1D56
SPA bus
SPA bus
SPA-ZC 100 BB - AB (Plastic) or
MM - DB (Glass)
SPA-ZC 100 BB - AC (Plastic) or
MM - DC (Glass)
SPAU 341 C1
Regulator 3
LON
SPA
Tx RX
Address:
30
Address:
31
SPCU 1D50
SPCN 1D56
SPA bus
SPA-ZC 100 BB - AD (Plastic) or
MM - DD (Glass)
LON Star coupler
RER 111
Rx Tx Rx Tx Rx Tx
LON bus
