ABB TPL-C Series User Manual

Operation Manual / TPL67-C.. - TPL71-C..
Taking out of operation at short notice
9
Fit cover plate
9.3
Page 109
© Copyright 2016
ABB. All rights reserved.
April 2016 HZTL2488_EN Revision C
Fit cover plate
9.3
NOTICE

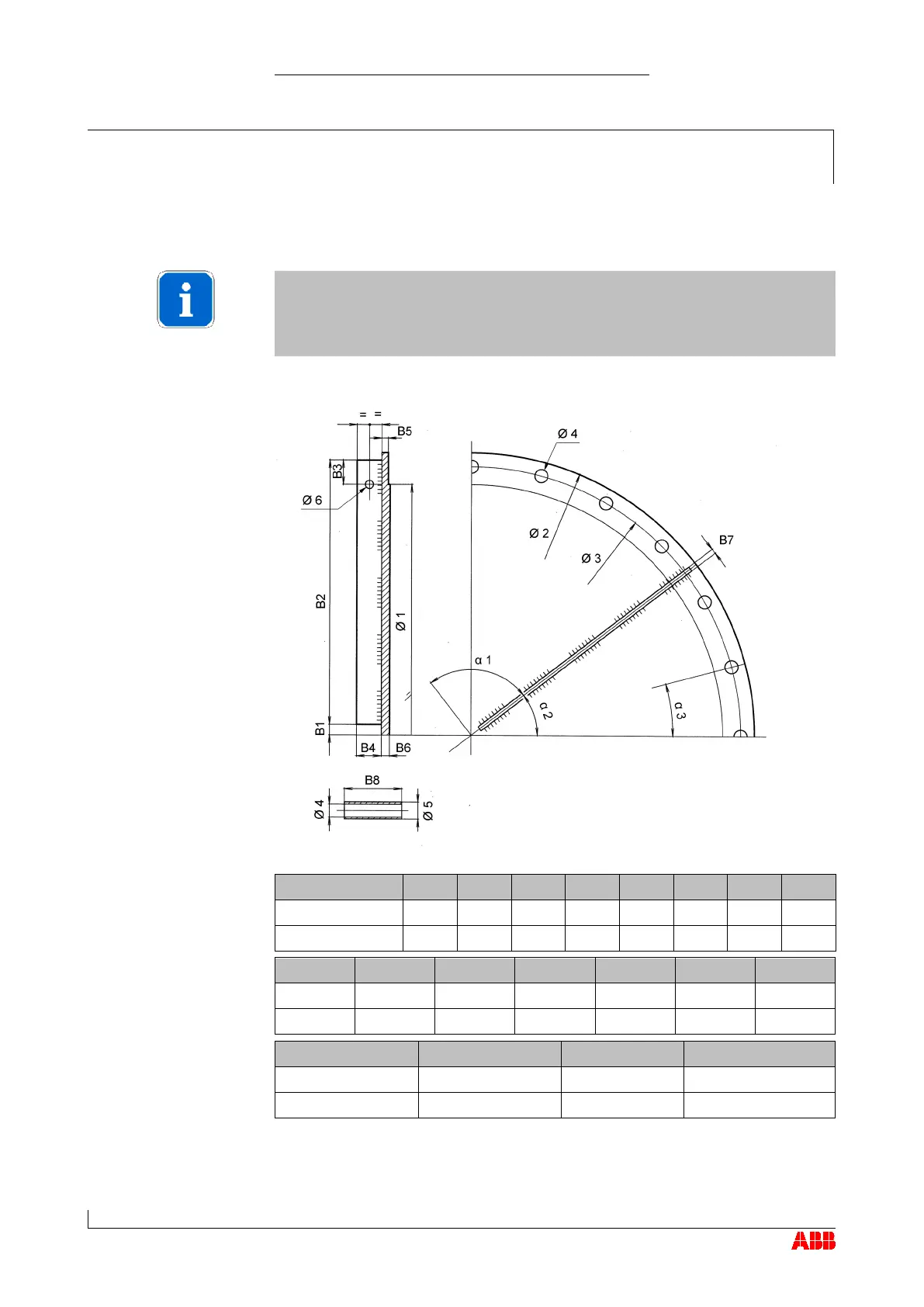

The cover plate (material: General structural steel, in accordance with
DIN EN 10025-2) must be manufactured in-house according to the
drawing.
Product
B1
B2
B3
B4
B5
B6
B7
B8
TPL67-C
13
325
30
30
8
10
6
70
TPL71-C 13 385 30 30 8 10 6 84
Product
Ø 1
Ø 2
Ø 3
Ø 4
Ø 5 min.
Ø 6 min.
TPL67-C 616 694 660 16 22 15
TPL71-C 726 818 779 18 25 15
Product
⍺ 1
⍺ 2
⍺ 3
TPL67-C 4 x 90° 37.5° 24 x 15°
TPL71-C
4 x 90°
37.5°
24 x 15°
9.3
Cover plate dimensions
[mm]
