Operation Manual / TPL67-C.. - TPL71-C..
Maintenance
5
Cleaning the filter silencer
5.2
Page 52
© Copyright 2016 ABB. All rights reserved.
April 2016 HZTL2488_EN Revision C
Cleaning the filter silencer
5.2

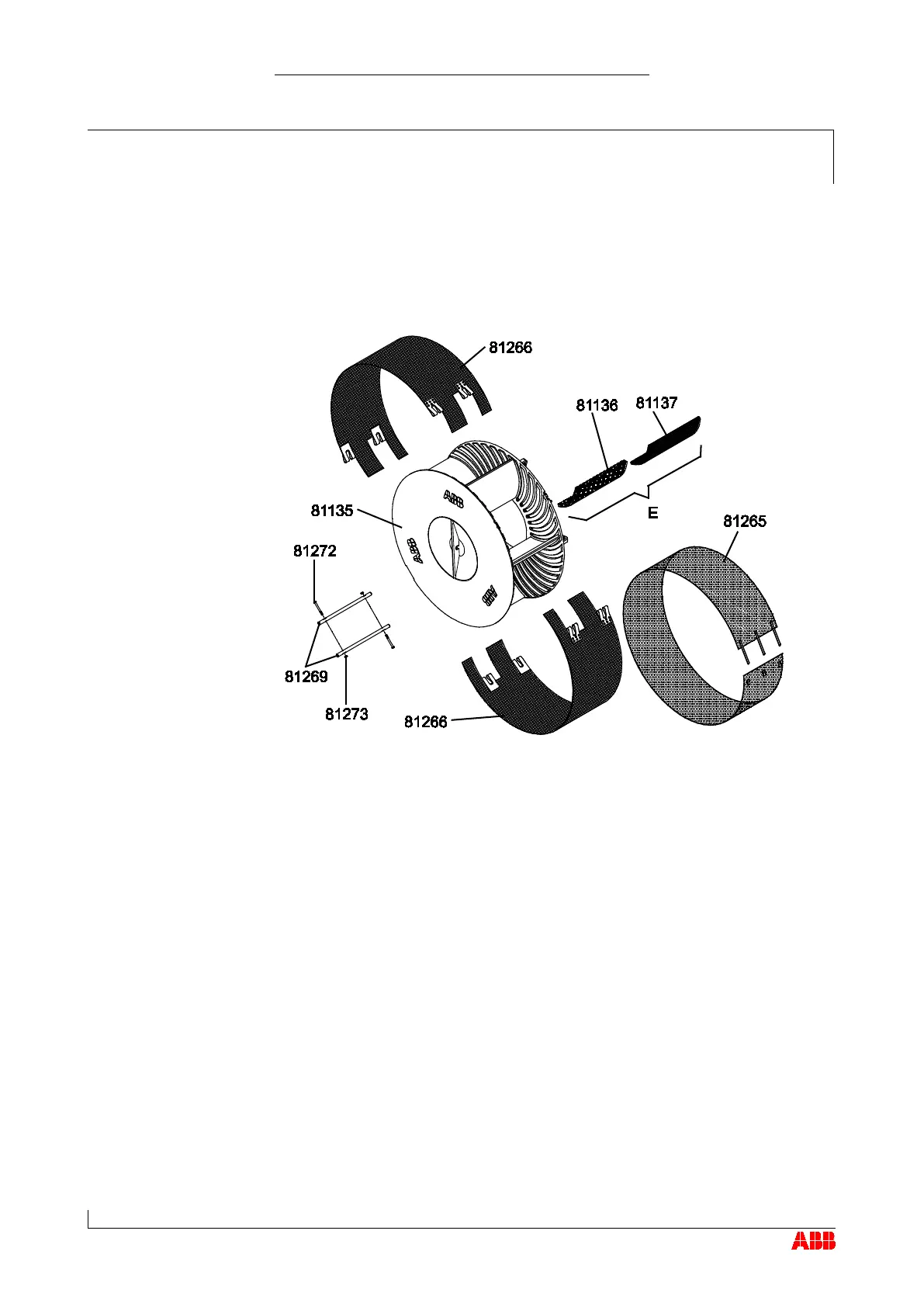

Filter silencer and connecting rod
81265 Filter ring (if provided) 81136 Absorption segment
81269
Connecting rods
81137
Sheet-metal covering
81266 Cover grid 81135 Filter silencer body
81272 Screwdriver 81273 Lock nut
E
Insert unit = absorption segment + sheetmetal covering
5.2
5.2.1
