ABB TPL67-C Series User Manual

Operation Manual / TPL67-C.. - TPL71-C..
Disassembly and assembly
8
Removing and fitting filter silencer or air
suction branch
8.3
Page 93
© Copyright 2017 ABB. All rights reserved.
February 2017 HZTL2488_EN Revision D
Removing and fitting filter silencer or air suc-
tion branch
8.3
 Disconnect all air lines in accordance with the engine builder’s instruc-
tions.
 Dismantle the insulation where necessary.


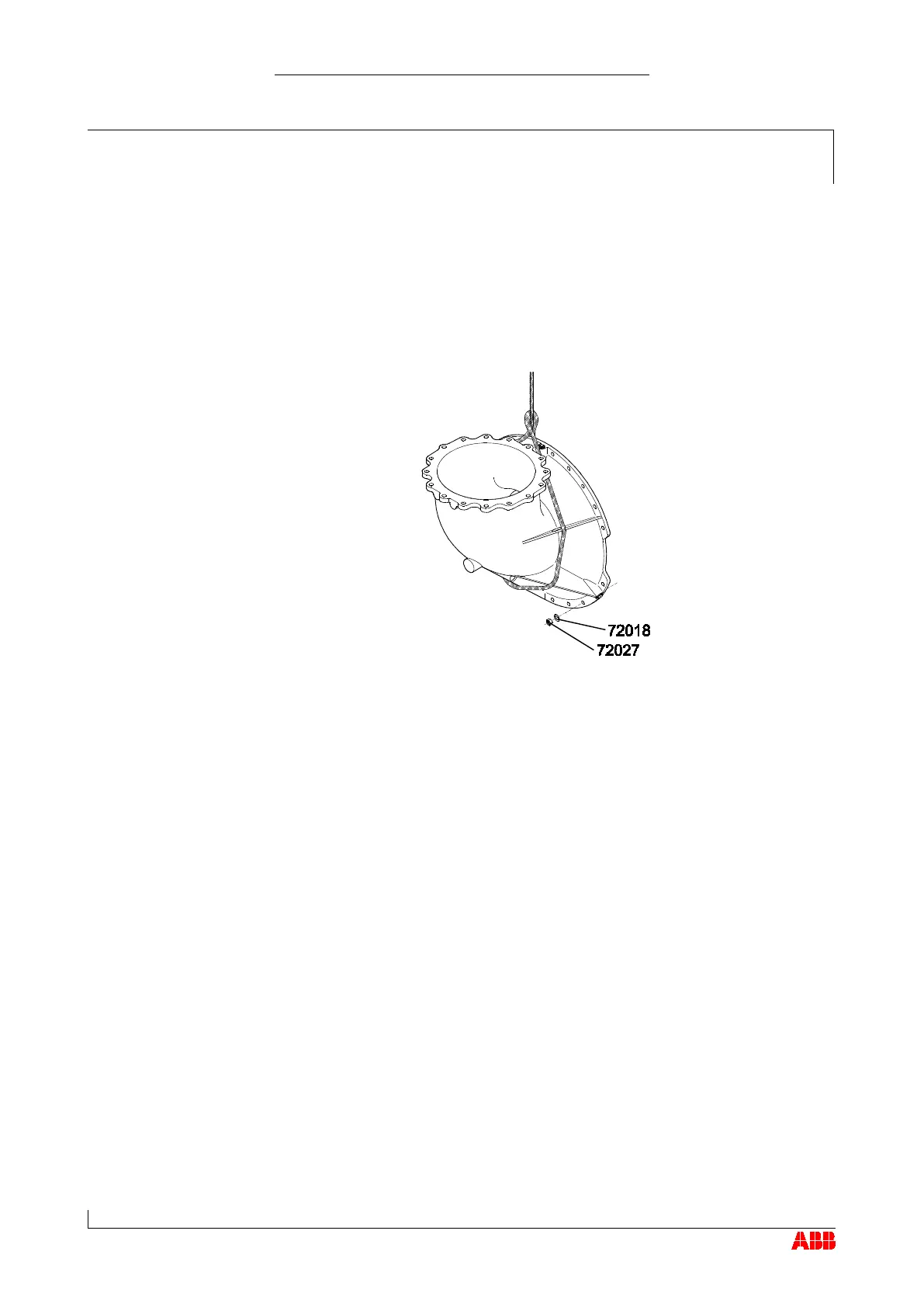

Pass a lifting gear around the air suction branch. It is permissible to
pass the lifting gear through holes possibly provided in the ribs to im-
prove stability.
 Unscrew the nuts (72027) and remove them together with the washers
(72018).
 Remove the air suction branch and set it down to one side.
 Fit the air suction branch in reverse order.
8.3
Removing the air suction
branch
Installing the air suction
branch
