ABB TPS F Series User Manual

Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 93
April 2015 HZTL2412_EN Revision E

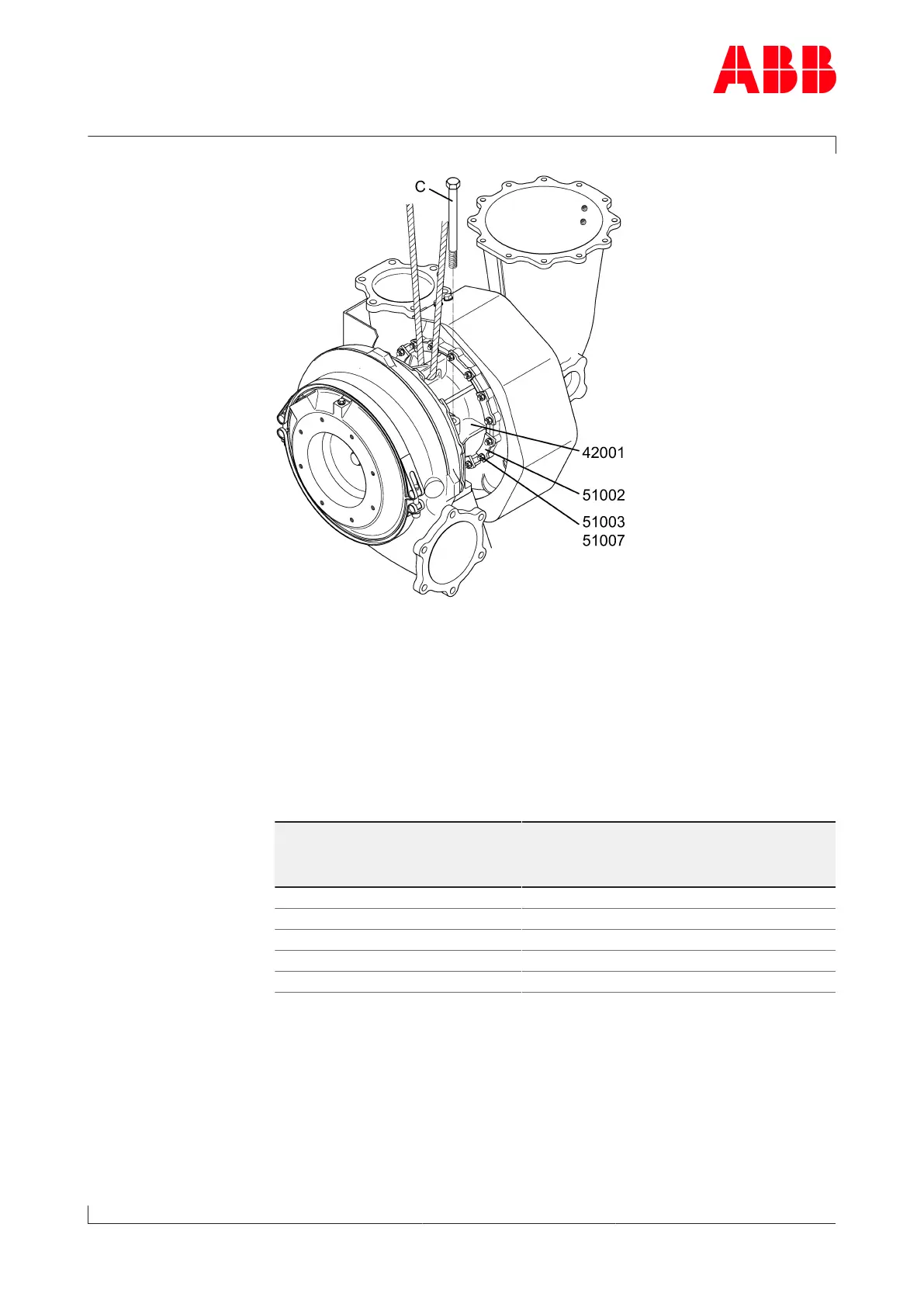

Disassembling and assembling turbocharger
8.3
Removing the compressor casing
WARNING
Risk of burning
Touching hot surfaces or contact with hot operating materials can lead
to serious burns.
 Do not touch hot surfaces and heed the warning plate on the
turbocharger.
 Wear heat-resistant safety gloves and protective clothing.
 Allow the turbocharger to cool down before carrying out any work.
Wear safety gloves against thermal risks.
 Disconnect all air lines in accordance with the enginebuilder’s
instructions.
 Remove the screws for the compressor casing insulation and
dismantle the insulation.

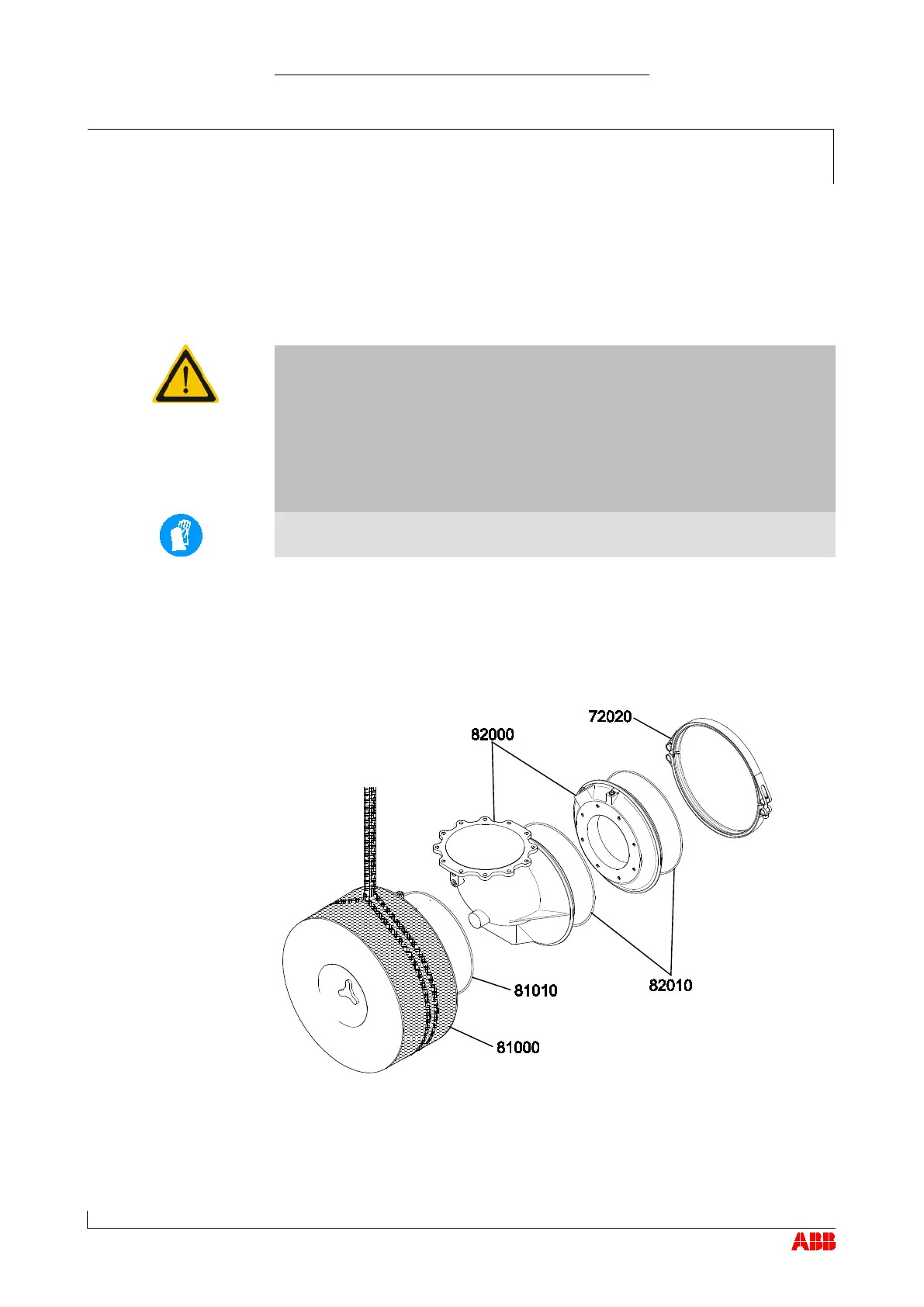

 Undo the V-clamp (72020) and remove the filter silencer (81000) or air
suction branch (82000).
8.3
If provided
© Copyright 2015 ABB. All rights reserved.
