4.2.2 Mounting on linear actuators
For mounting on a linear actuator in accordance with DIN / IEC 534 (lateral mount per NAMUR)
a complete mounting kit is available, and consists of the items in the following table:

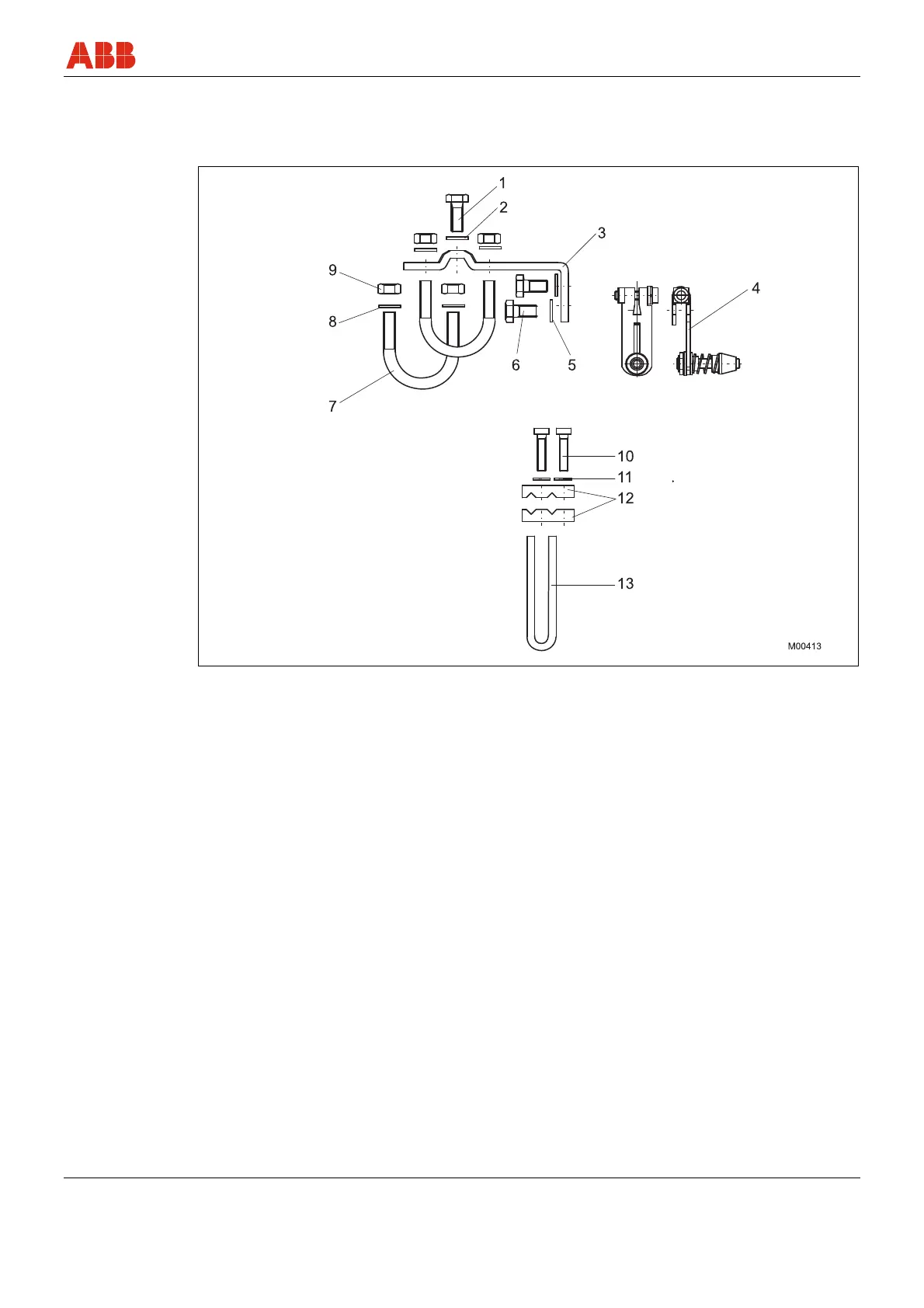

Fig. 5: Mounting kit for linear actuators
• Lever (4) with follower pin, for stroke adjustment 10 ... 35 mm (0.39 ... 1.38 inch) or
20 ... 100 mm (0.79 ... 3.94 inch)
• Follower guide (13) with two screws (10), spring washers (11) and clamp plates (12)
• Mount bracket (3) with two screws (6) and two shims (5)
• Screw (1) and shim (2) for mounting to cast iron yoke
• Two U-bolts (7) with two shims (8) and two nuts (9) for mounting to columnar yoke
Required tools:
- Wrench, size 10 / 13
- Allen key, size 4
To Next Page
