41
T

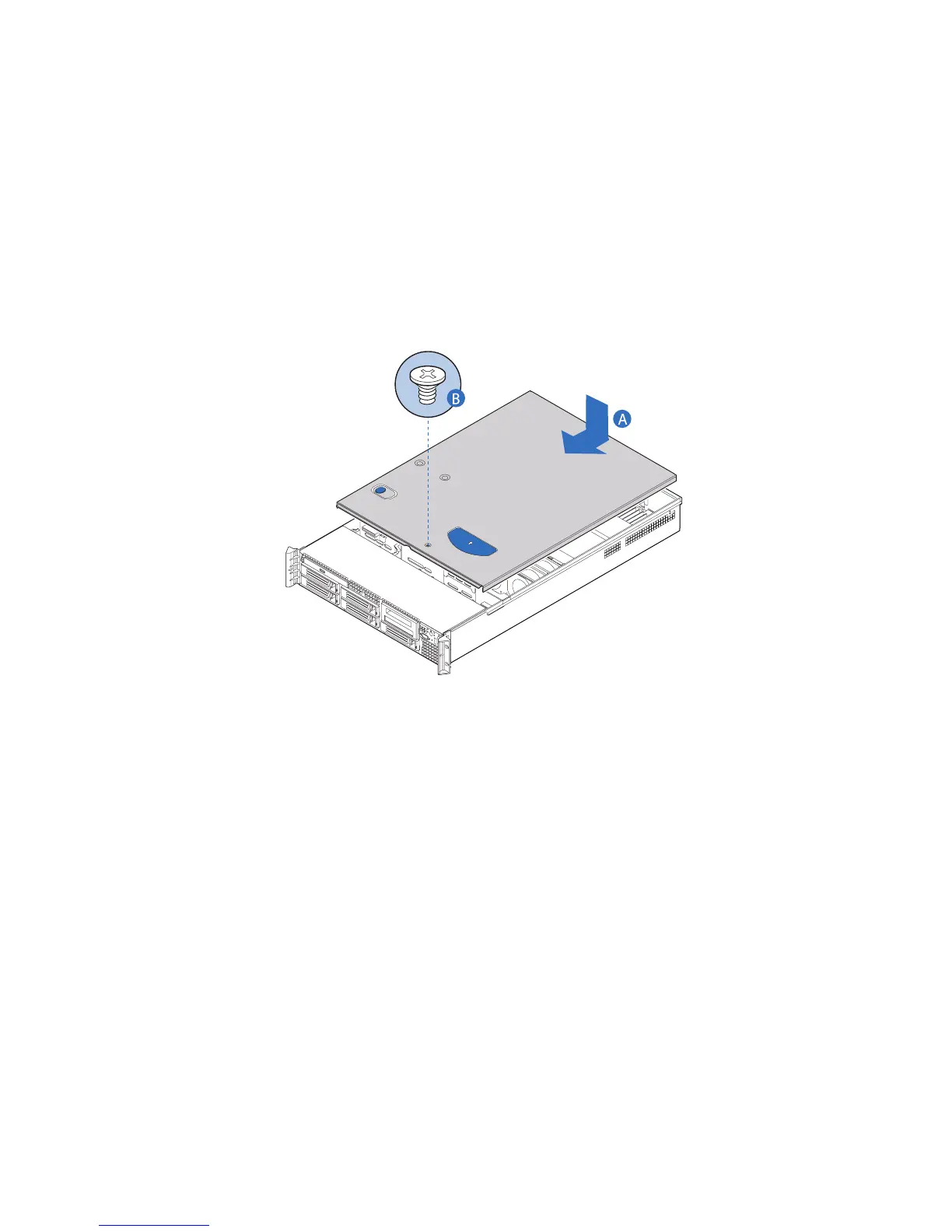

o install the top cover:
1
Observe the ESD precautions an
d pre-installation instructions
described on page 35.
2
Place the top cover on the chassi
s so that the tabs on the cover
align with the slots on the chassis .
3
Slide the top cover toward the front
of the chassis until it is fully
closed
(A)
.
4
Replace the screw on the top cover
(B)
.
50
