Machine Maintenance Procedures 3-33
Speaker Module Removal 0
Prerequisite:
Mainboard Removal
1. Find Speaker Module (B) on base assembly as shown on Figure 3-27.
2. Remove the black tape (D) securing the speaker cables (A) on base assembly. Refer to
Figure 3-30.
3. Remove the speaker cables (A) from the cable guides (Figure 3-30).
4. Remove four (4) screws (C) from base assembly (Figure 3-30).

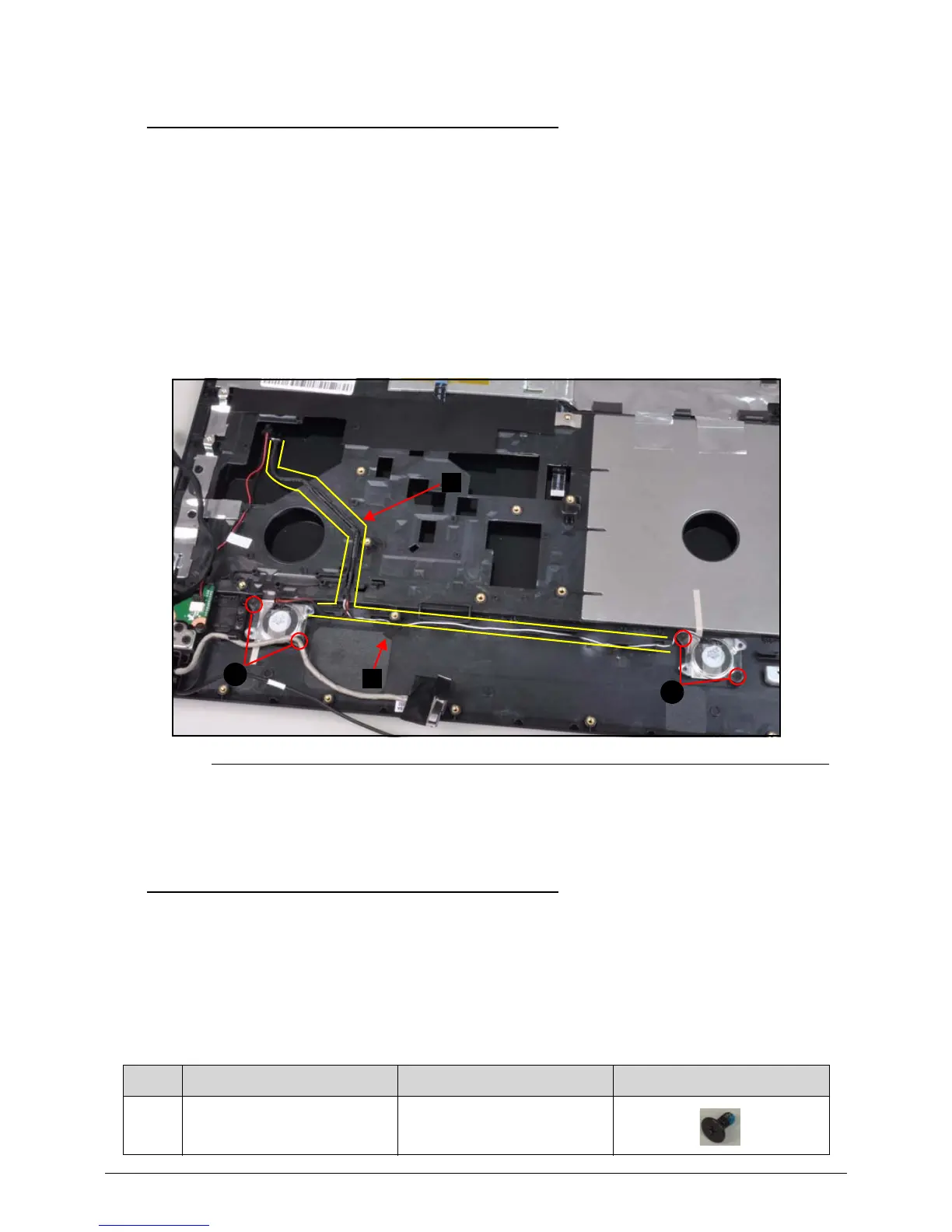

Figure 3-30. Speaker Module
5. Remove Speaker Module from Base Assembly.
Speaker Module Installation 0
1. Place the speaker cables (A) into the cable guides and secure it with the black tape
(D) on Base Assembly. Refer to Figure 3-30.
2. Place speaker module onto base assembly (Figure 3-27).
3. Install and secure four (4) screws (C) to the base assembly. Refer to Figure 3-30.
4. Install mainboard.
ID Size Quantity Screw Type
C M2.0*3.95 4
