5-4 Jumper and Connector Locations

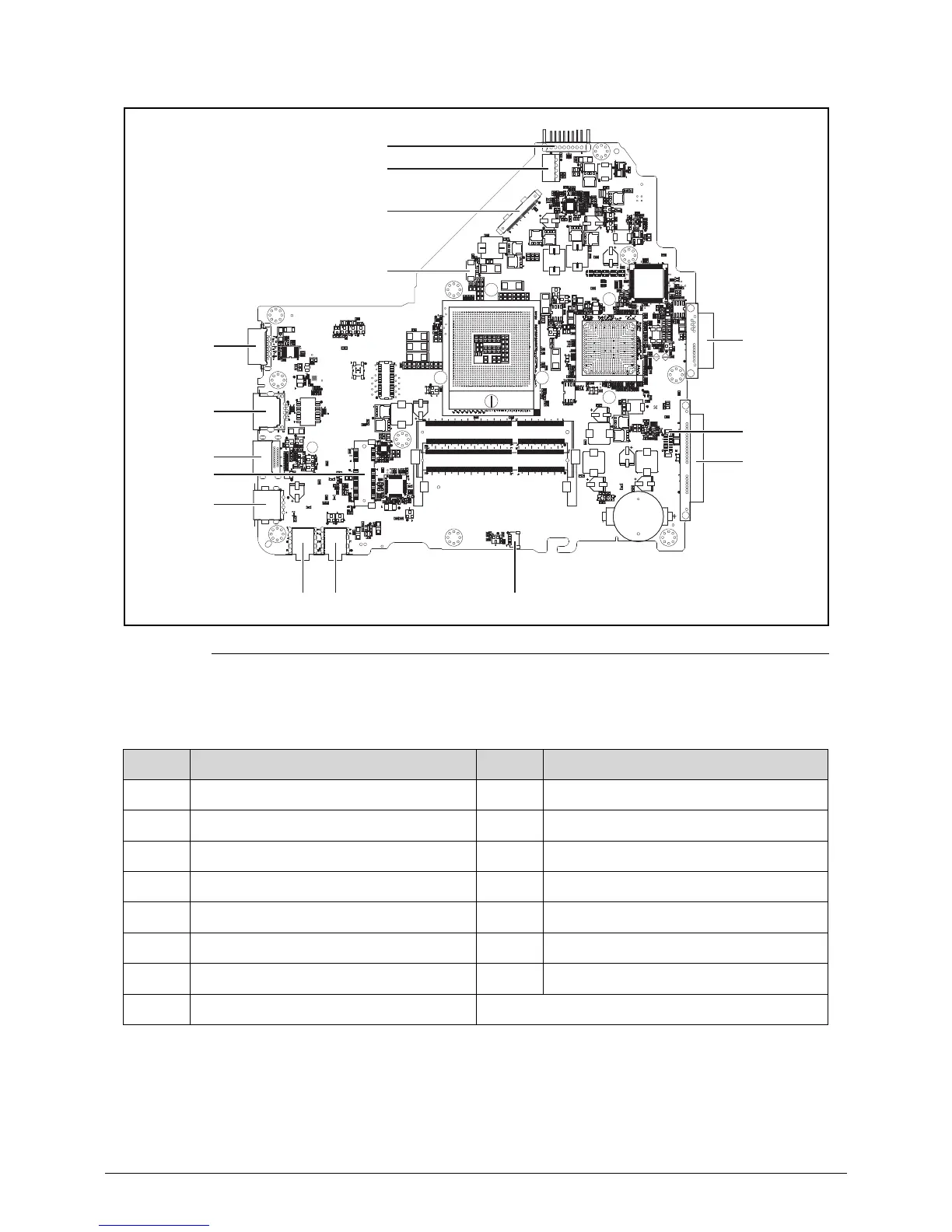

Figure 5-2. Mainboard Bottom
Table 5-2. Mainboard Bottom
Item Description Item Description
1 Battery Connector 9 USB Connector
2 DC-IN Connector 10 ODD Connector
3 LVDS Connector 11 USB attachedboard Connector
4 Fan Connector 12 HDD Connector
5 VGA Connector 13 Microphone Connector
6 RJ-45 Connector 14 Headphone Connector
7 HDMI Connector 15 Bluetooth Connector
8 Mini Card Connector
1
2
3
4
5
6
7
9
8
13 14 15
10
11
12

Acer Aspire 4349 Specifications

General

Processor	Intel Pentium B940
RAM	DDR3
Storage	320 GB HDD
Display	1366 x 768
Graphics	Intel HD Graphics
Operating System	Windows 7 Home Basic
Battery	6-cell Li-ion
Optical Drive	DVD-Super Multi DL
Dimensions	342 x 245
