Removing the LCD Bezel 0
1. Refer to Removing the LCD Module.
2. Remove the two screw covers at the bottom of the LCD bezel.

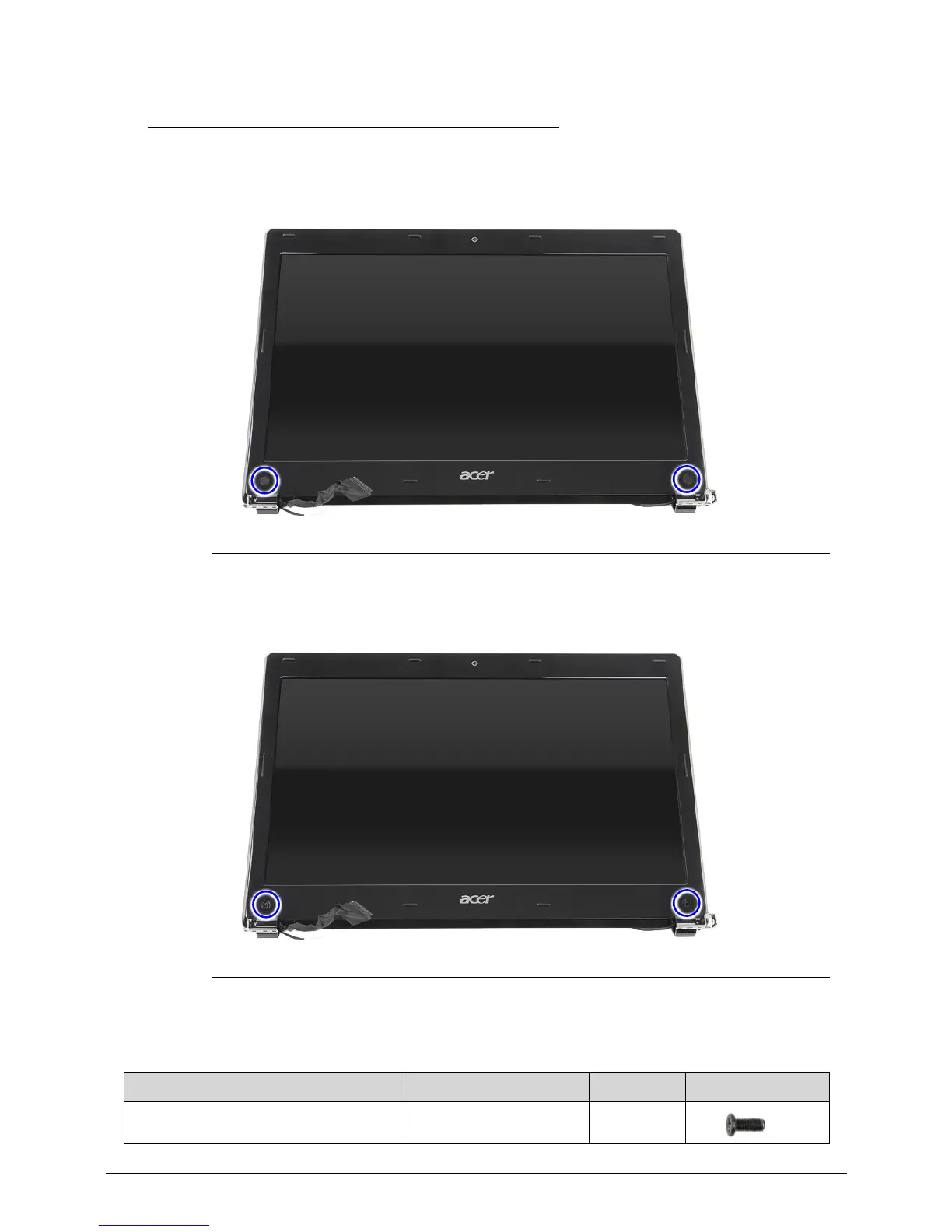

Figure 3-72. LCD Bezel Screw Covers
3. Remove the two screws (D) at the bottom of the LCD bezel.
Figure 3-73. LCD Bezel Screws
Table 3-19. Screws
Step Screw Quantity Screw Type
LCD Bezel Disassembly M2.5 x L5 2
