Acer Aspire 4743Z User Manual

3-70 Machine Maintenance

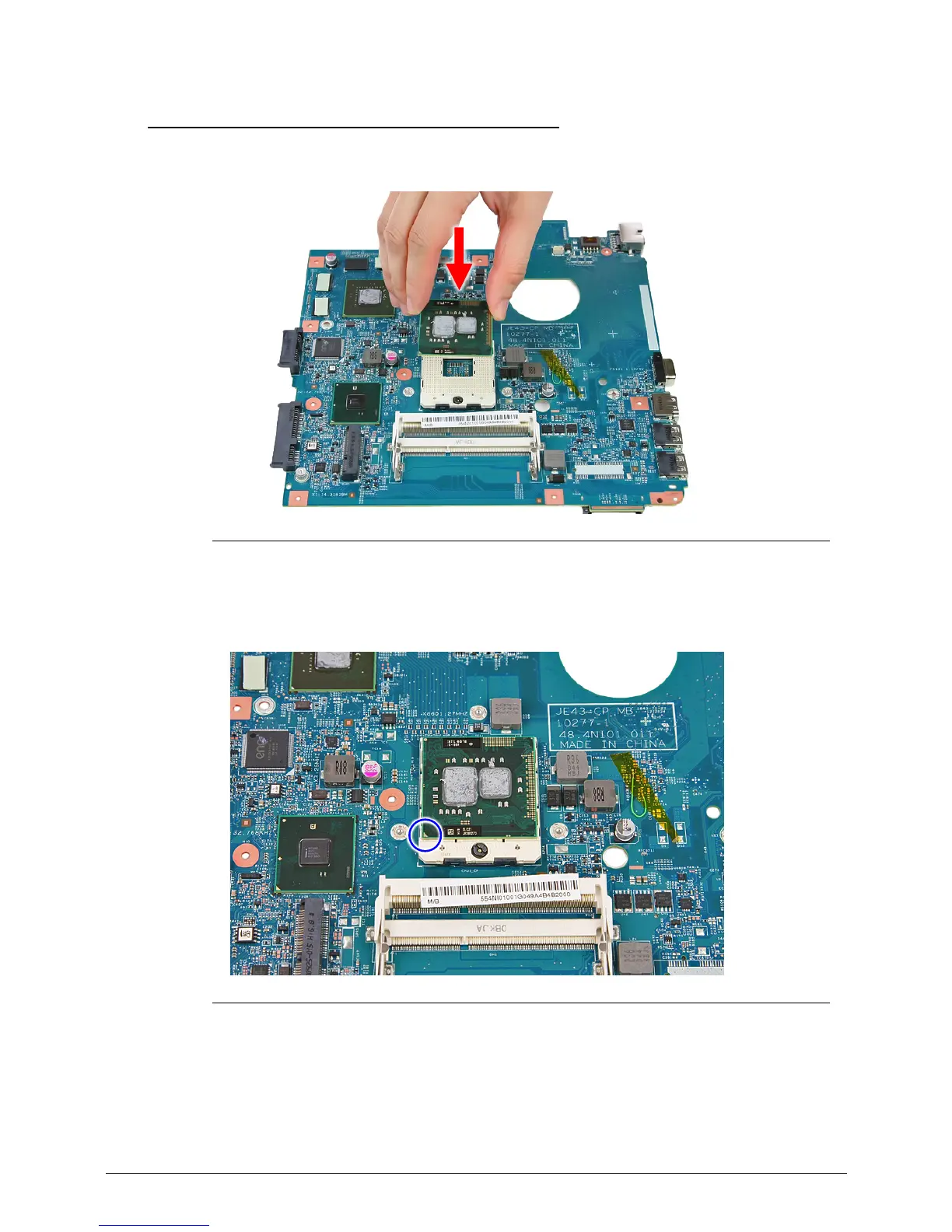

Replacing the CPU 0
1. Place the CPU into the socket.
Figure 3-109. CPU
2. Make sure the gold arrow on the corner of the CPU is aligned with the beveled corner of
the socket. The CPU will easily fit into the socket if you oriented it properly.
Figure 3-110. CPU

Acer Aspire 4743Z Specifications

General

Brand	Acer
Model	Aspire 4743Z
Category	Laptop
Language	English
