4. Tighten the five (5) spring-loaded captive screws to secure thermal module in place.
Follow the sequence of the number beside each screw when securing the thermal
module.

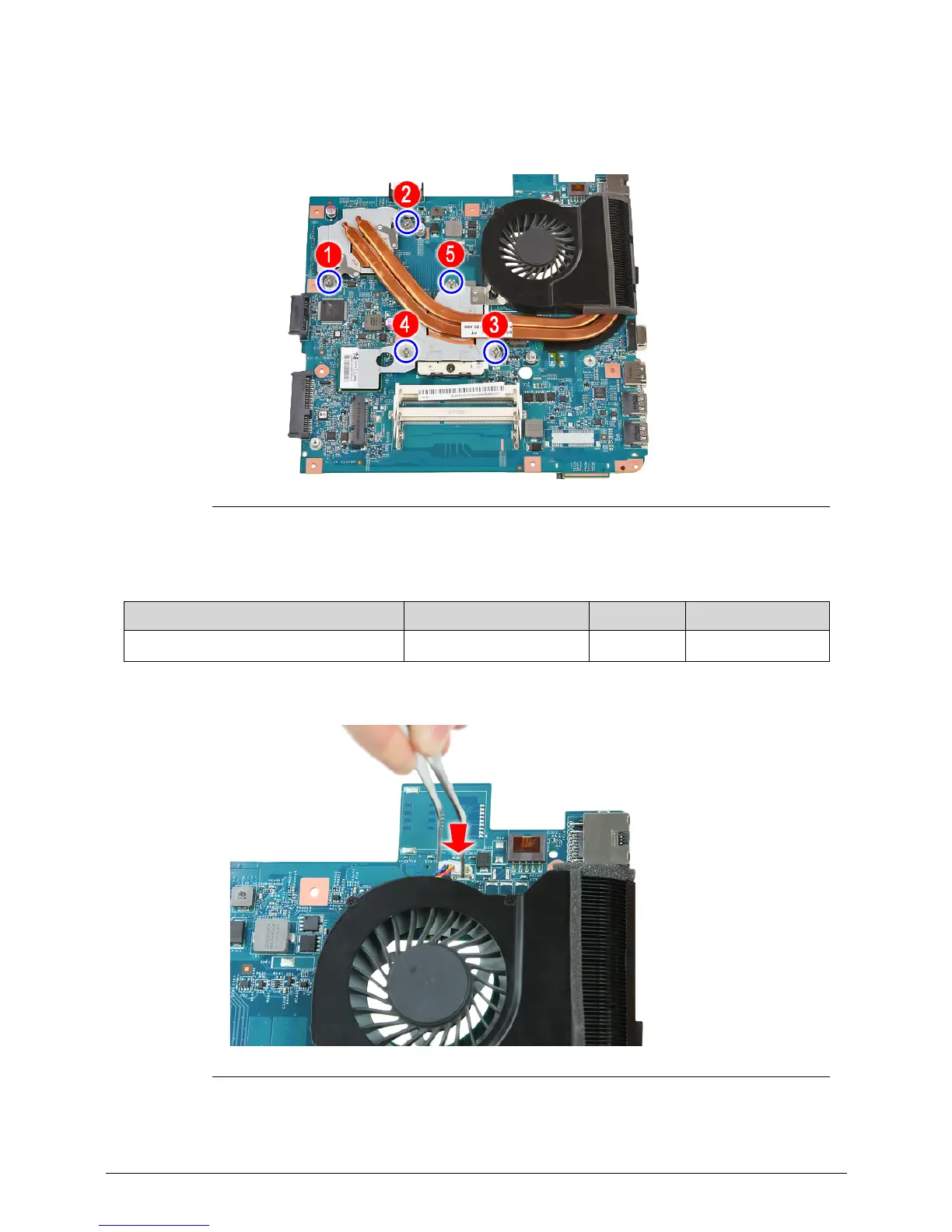

Figure 3-113. Thermal Module Screws
5. Connect the fan cable to the mainboard.
Figure 3-114. Fan Cable
Table 3-26. Screws
Step Screw Quantity Screw Type
Thermal Module Assembly N/A 5 N/A
