5-4 Jumper and Connector Locations

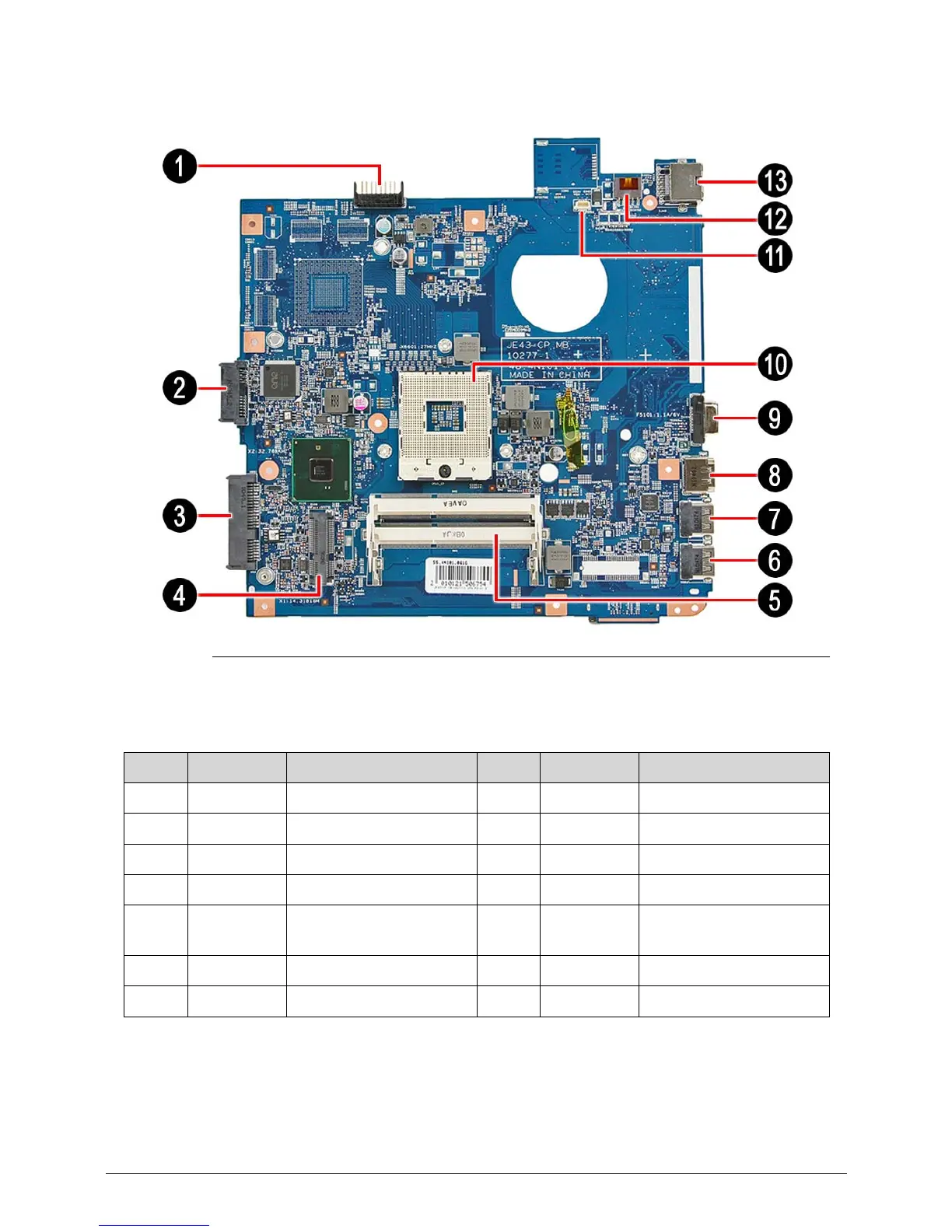

Figure 5-2. Bottom View
Table 5-2. Mainboard Bottom
No. Code Component No. Code Component
1 BAT1 Battery connector 8 HDMI1 HDMI out port
2 ODD1 SATA ODD connector 9 CRT1 Monitor port
3 HDD1 HDD connector 10 CPU1_CP Processor socket
4 WLAN1 WLAN module slot 11 FAN1 Fan connector
5 DM1-2 DDR3 slots 1 and 2 12 DCIN1 DC power cable
connector
6 USB2 USB port 2 13 RJ45 Ethernet jack
7 USB1 USB port 1
