94 Chapter 3

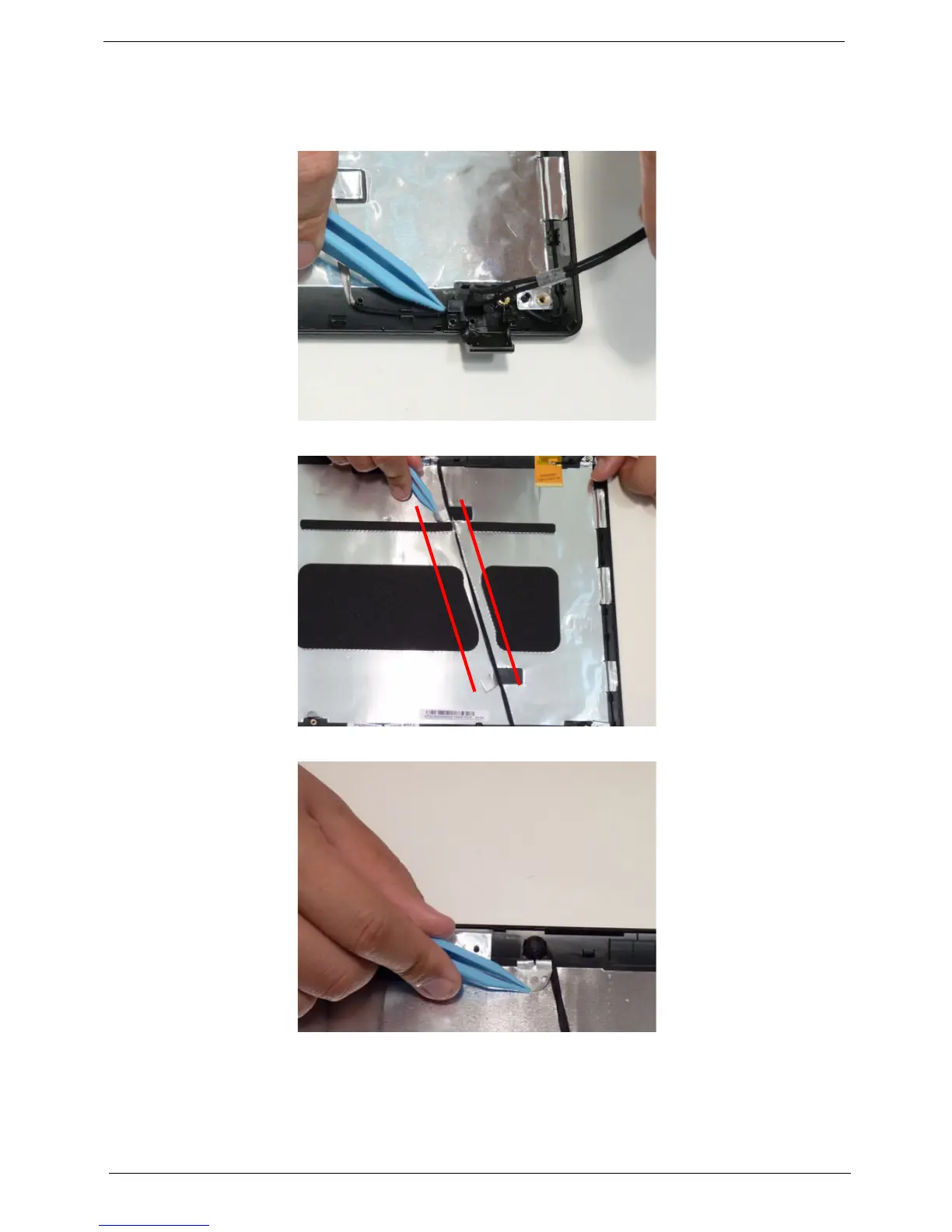

Removing the Microphone Cable
1. See “Removing the LCD Panel” on page 90.
2. Remove the cable bundle from the hinge channel.
3. Peel back the foil tabs and remove the microphone cable from the cable channel.
4. Peel back the foil tab on the microphone set.
