Replacing the Thermal Module
IMPORTANT: Apply a suitable thermal grease and ensure all heat pads are in place before replacing the Thermal
Module.
The following thermal grease types are approved for use:
• N-302 Dimand TIM Grease
• Honeywell
The following thermal pads are approved for use:
• Eapus XR-PE
1. Remove all traces of thermal grease from the CPU using a lint-free cloth or cotton swab and Isopropyl
Alcohol, Acetone (1), or other approved cleaning agent.
2. Apply a small amount of thermal grease to the centre of the CPU—there is no need to spread the grease
manually, the force used during the installation of the Thermal Module is sufficient.

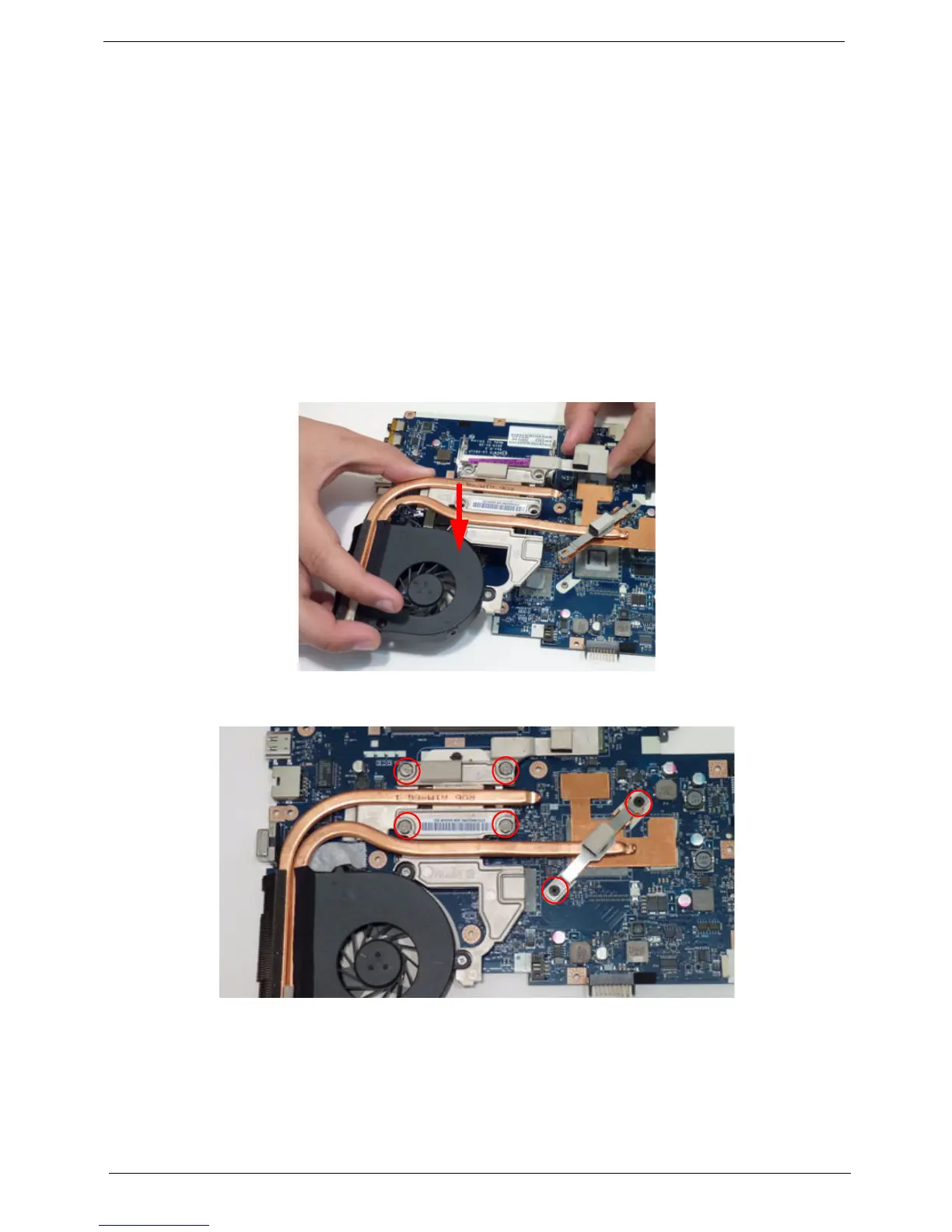

3. Align the screw holes on the Thermal Module and Mainboard then replace the module. Keep the module as
level as possible to spread the thermal grease evenly.
4. Replace the four (4) securing screws (in reverse numerical order from screw 4 to 1), then the two (2) screws
on the GPU.
1
2
3
4
