Acer Aspire 5333 User Manual

Machine Maintenance Procedures 3-29
ODD Board Removal 0
Prerequisite:
Upper Cover Removal
1. Locate board (A) on lower cover.
2. Disconnect FFC cable (F) from mainboard connector (C).
3. Remove screw (D) from board.

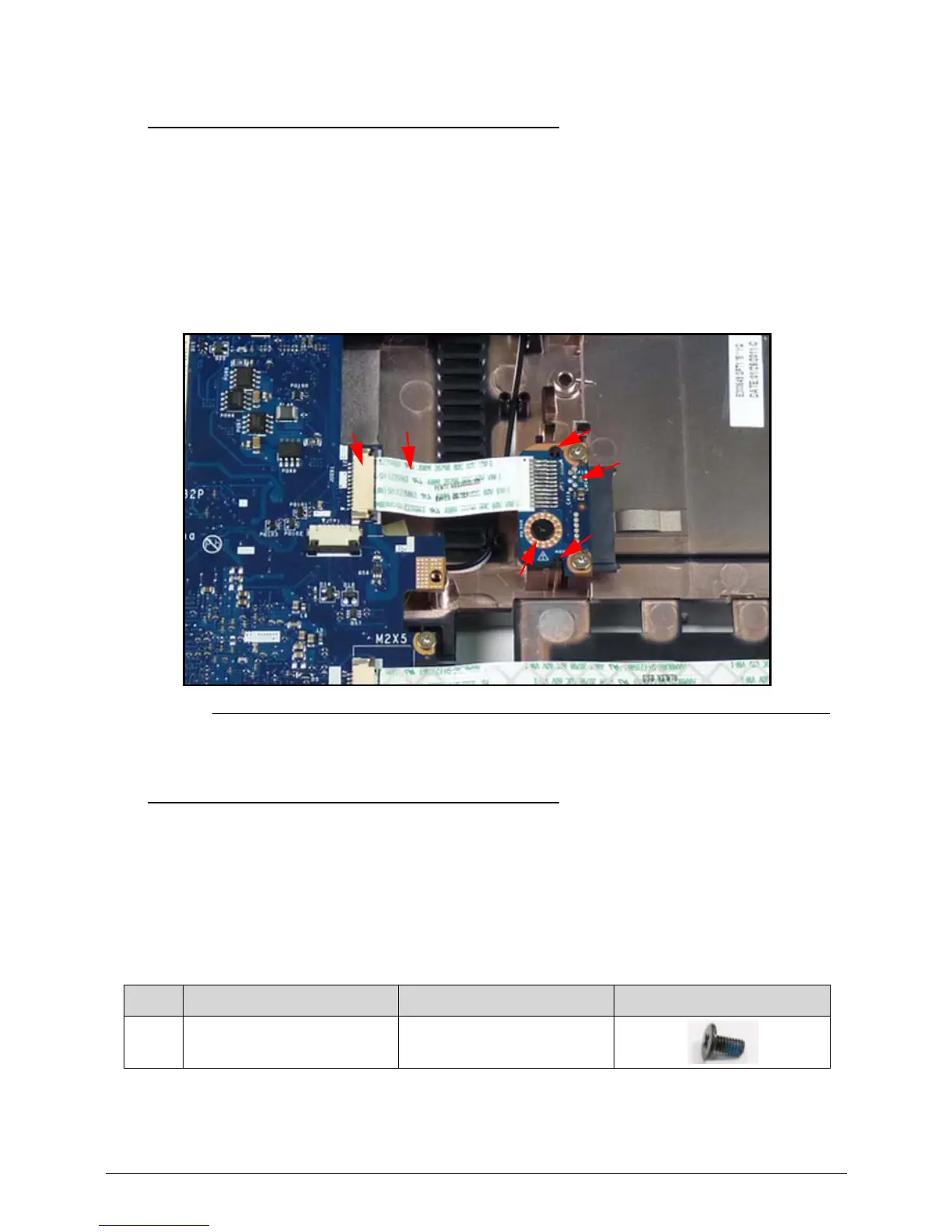

Figure 3-30. ODD Board
ODD Board Installation 0
1. Align module (A) to pins (E) on lower cover.
2. Install module (A).
3. Connect FFC cable (F) to mainboard connector (C).
4. Install and secure screw (D) to module (A).
5. Install upper cover.
ID Size Quantity Screw Type
D M2.5x5 1
A
F
C
D
E
E
