WLAN Module Removal 0
Prerequisite:
Lower Logic Door Removal
1. Locate module (A) on lower cover.
2. Lift mylar (F) to provide access to module (A).
3. Disconnect antenna cable (B) from WLAN module.
4. Remove screw (D) from module.
5. Remove WLAN module (A) from mainboard connector (E).

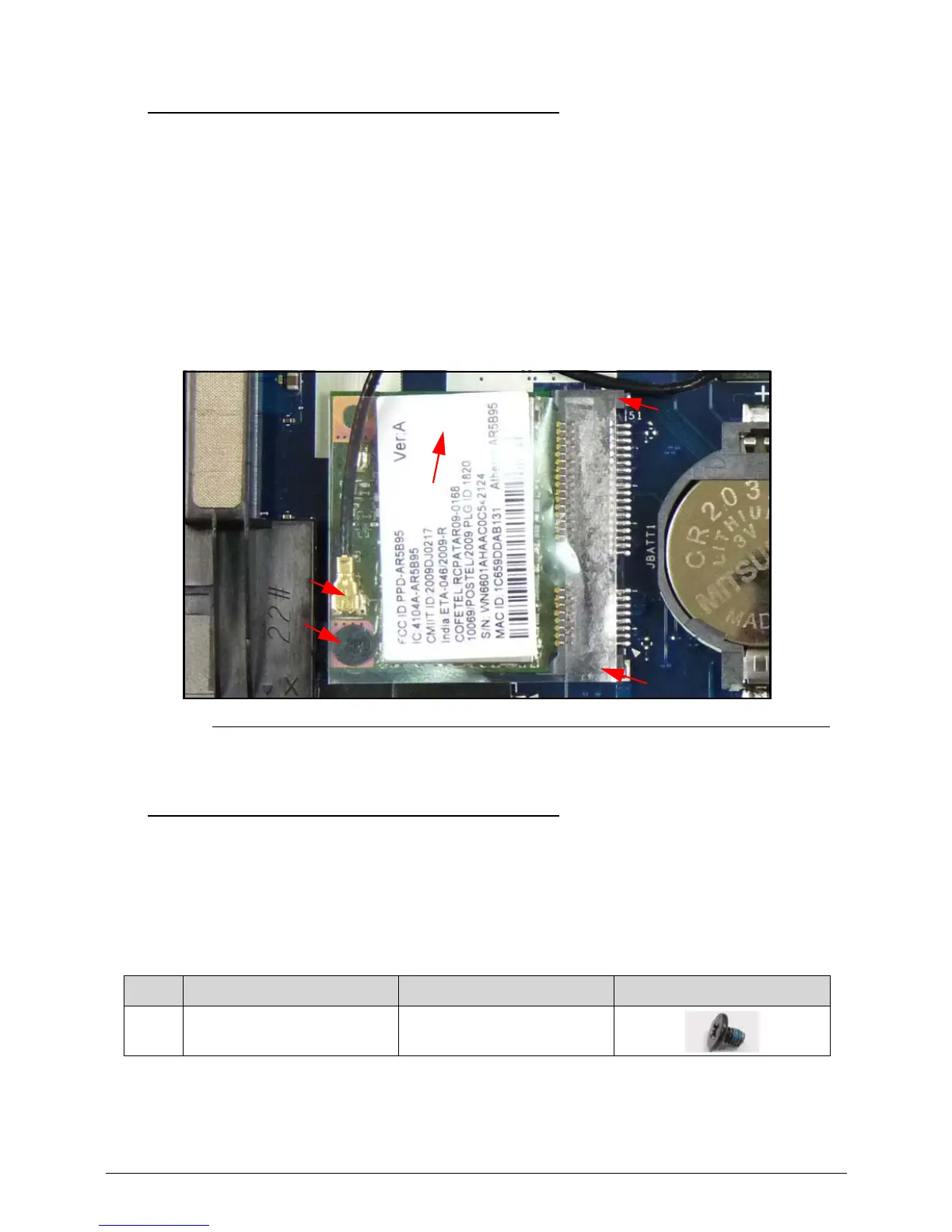

Figure 3-12. WLAN Module
WLAN Module Installation 0
1. Insert module (A) into mainboard connector (E).
2. Install and secure screw (D) to module.
3. Connect antenna cable (B) to WLAN module.
4. Install lower logic door.
ID Size Quantity Screw Type
DM2x3 1
A
E
B
D
F
