Acer V193W Product Service Manual

- 24 -
4.2. Disassembly /Assembly
Assembly Procedure
Preparation before assemble
1.Clean the room for work
2.Identify the area for material
3.Prepare the implement, equipments, materials as bellow:
1.) Press-fixture
2.) working table
3.) Screw-driver
4.) knife*1
5.) glove
6.) cleaning cloth
7.) ESD protection
ite
m
Operation
Tool
Notes

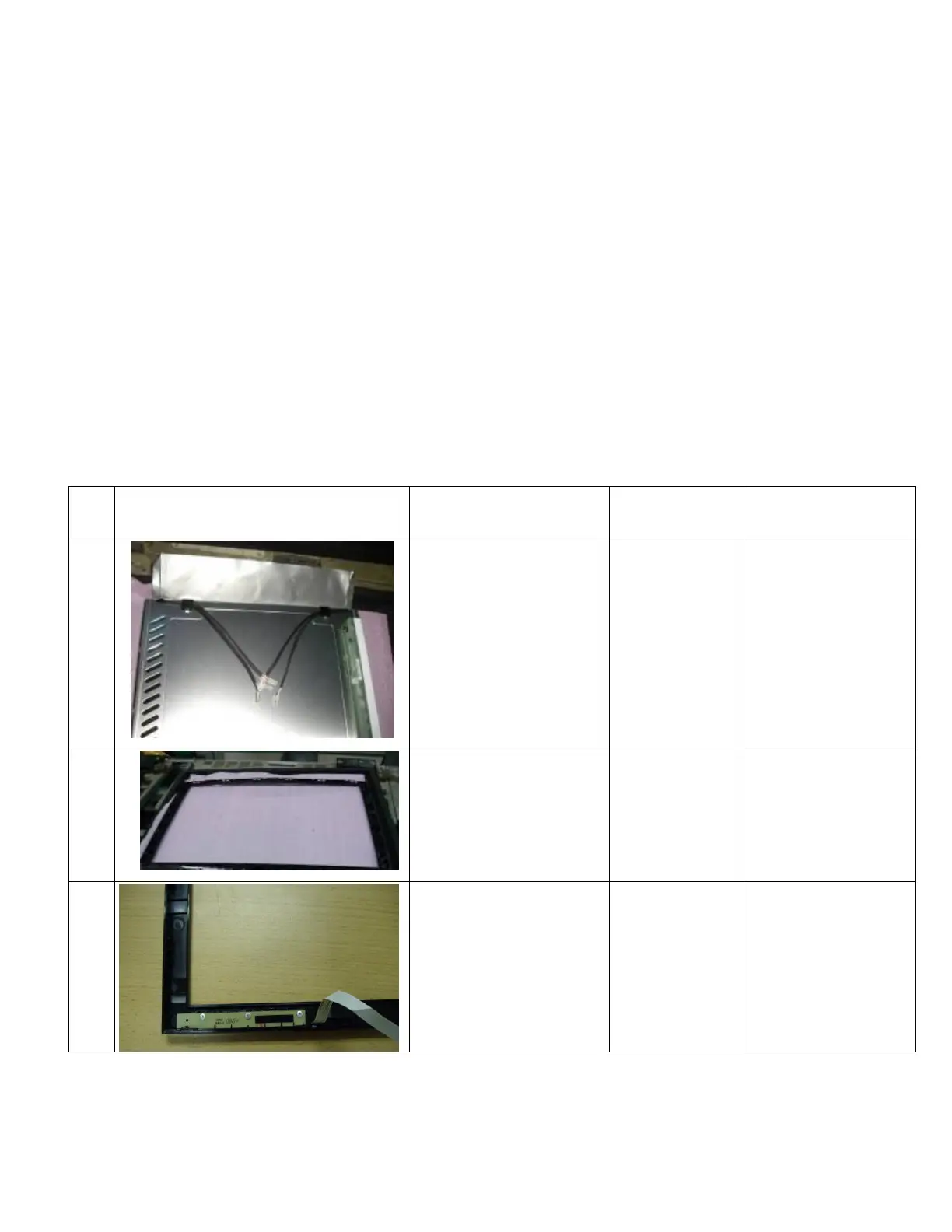

1
Stick the big Al tape to
panel which can protect
the Light-wire.
The tape must cover
the connect of the
wire
2
Check and put CLM-F on
the cushion carefully,
3
Assembly the Ctrl board
to CLM-F.

Acer V193W Specifications

General

Pixel pitch	0.284 x 0.284 mm
Display diagonal	19 \
Display resolution	1440 x 900 pixels
Vertical scan range	55 - 75 Hz
Viewable size, vertical	255 mm
Contrast ratio (typical)	2000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	408 mm
Viewing angle, horizontal	176 °
Display brightness (typical)	300 cd/m²
Certification	UL, CUL, TUV/GS, T-Mark, ISO9241-3/-7/-8, FCC/B, VCCI, CE, TCO03, C-tick, BSMI, WHQL, ISO 13402-6
Product color	Black
Market positioning	-
Cable lock slot	Yes
Tilt angle range	-5 - 15 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Power consumption (off)	1 W
Power consumption (standby)	2 W
Power consumption (typical)	26 W

Weight and Dimensions

Depth (without stand)	360 mm
Width (without stand)	442 mm
Height (without stand)	162 mm
Weight (without stand)	4300 g
