Acer V193W Product Service Manual

- 38 -
5.2 Software / Firmware Upgrade Process
5.2.1 Hardware prepared:
Hardware Requirement:
1. ISP board x 1
2. DSUB VGA cables x 2
3. Printer cable (with one male connector and another female connector) x 1.
4. PC or Notebook with parallel (printer) port x1.

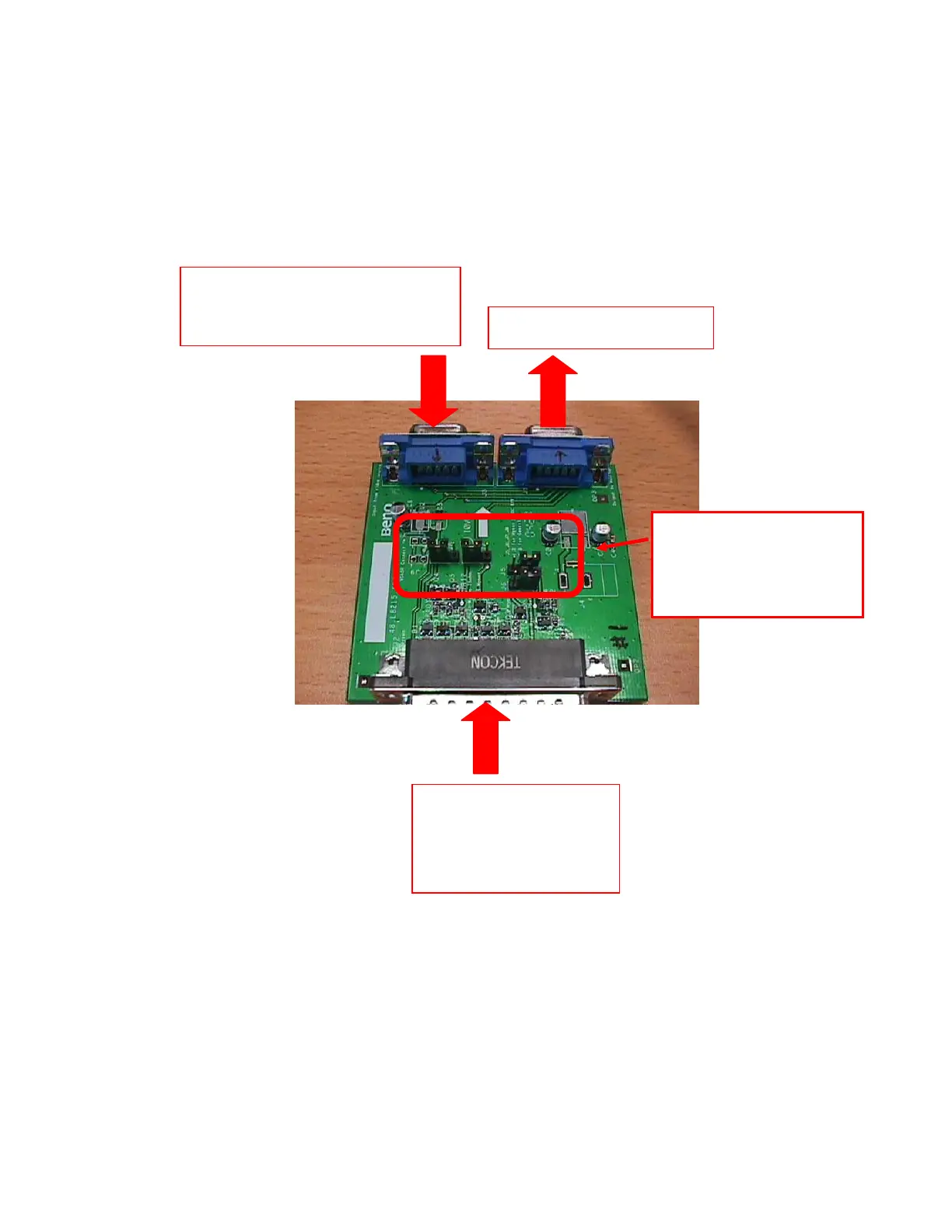

Connect to target monitor
VGA signal input from 15pin D-sub
cable of PC or NB.
Connect ISP board and PC
with printer port cable
Check the Jumpers on the
ISP Circuit Board (make sure
J5, J6, J7, J8 are set at ping
1,2 )

Acer V193W Specifications

General

Pixel pitch	0.284 x 0.284 mm
Display diagonal	19 \
Display resolution	1440 x 900 pixels
Vertical scan range	55 - 75 Hz
Viewable size, vertical	255 mm
Contrast ratio (typical)	2000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	408 mm
Viewing angle, horizontal	176 °
Display brightness (typical)	300 cd/m²
Certification	UL, CUL, TUV/GS, T-Mark, ISO9241-3/-7/-8, FCC/B, VCCI, CE, TCO03, C-tick, BSMI, WHQL, ISO 13402-6
Product color	Black
Market positioning	-
Cable lock slot	Yes
Tilt angle range	-5 - 15 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Power consumption (off)	1 W
Power consumption (standby)	2 W
Power consumption (typical)	26 W

Weight and Dimensions

Depth (without stand)	360 mm
Width (without stand)	442 mm
Height (without stand)	162 mm
Weight (without stand)	4300 g
