Acer V193W Product Service Manual

- 59 -
6.2 Circuit Operation Theory
I. Introduction:
V193W is a 19 inch and 24bits color TFT LCD monitor, which can support the resolution up to 1280 x 1024. It
has VGA input and compliant with VESA specification to offer a smart power management. The monitor has
DDC/CI function to make the monitor communicate with PC by Acer ADM DDC/CI software, and also it has
ACM function to let the monitor contrast ratio up to 10000:1. It also offers OSD Menu for users to control the
adjustable items and get some information about this monitor.
II. Block diagram
V193W consists of a main body and a stand (base). The main body contains a AUO/ LGD TFT LCD
module with 2 CCFL lamps, a power board (includes AC/DC
、
DC/DC
、
inverter and panel power
source), a control board and an interface board. The block diagram is shown as below.

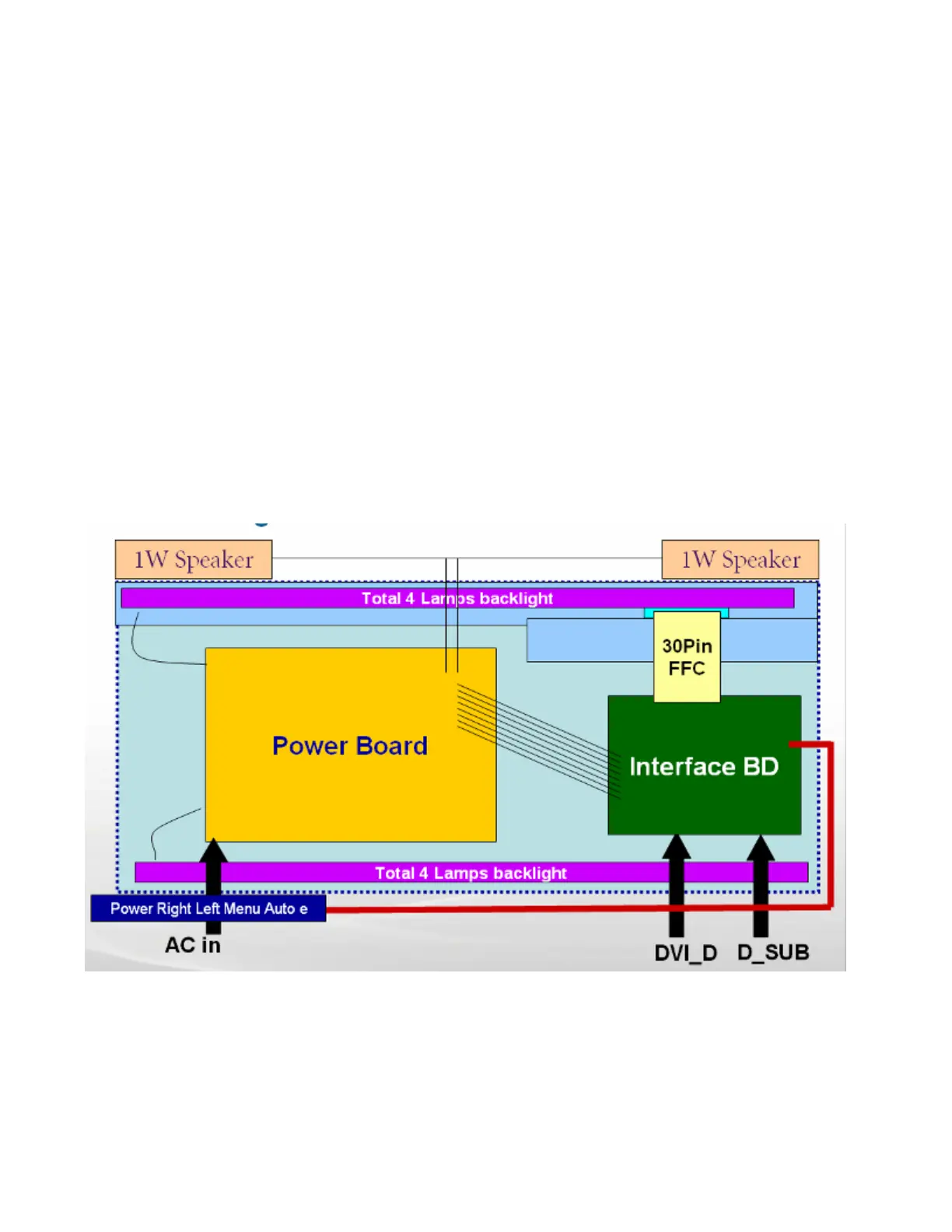

Fig. Block diagram for V193W LCD monitor

Acer V193W Specifications

General

Pixel pitch	0.284 x 0.284 mm
Display diagonal	19 \
Display resolution	1440 x 900 pixels
Vertical scan range	55 - 75 Hz
Viewable size, vertical	255 mm
Contrast ratio (typical)	2000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	408 mm
Viewing angle, horizontal	176 °
Display brightness (typical)	300 cd/m²
Certification	UL, CUL, TUV/GS, T-Mark, ISO9241-3/-7/-8, FCC/B, VCCI, CE, TCO03, C-tick, BSMI, WHQL, ISO 13402-6
Product color	Black
Market positioning	-
Cable lock slot	Yes
Tilt angle range	-5 - 15 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Power consumption (off)	1 W
Power consumption (standby)	2 W
Power consumption (typical)	26 W

Weight and Dimensions

Depth (without stand)	360 mm
Width (without stand)	442 mm
Height (without stand)	162 mm
Weight (without stand)	4300 g
