95 Chapter 3
Removing the LCD Panel

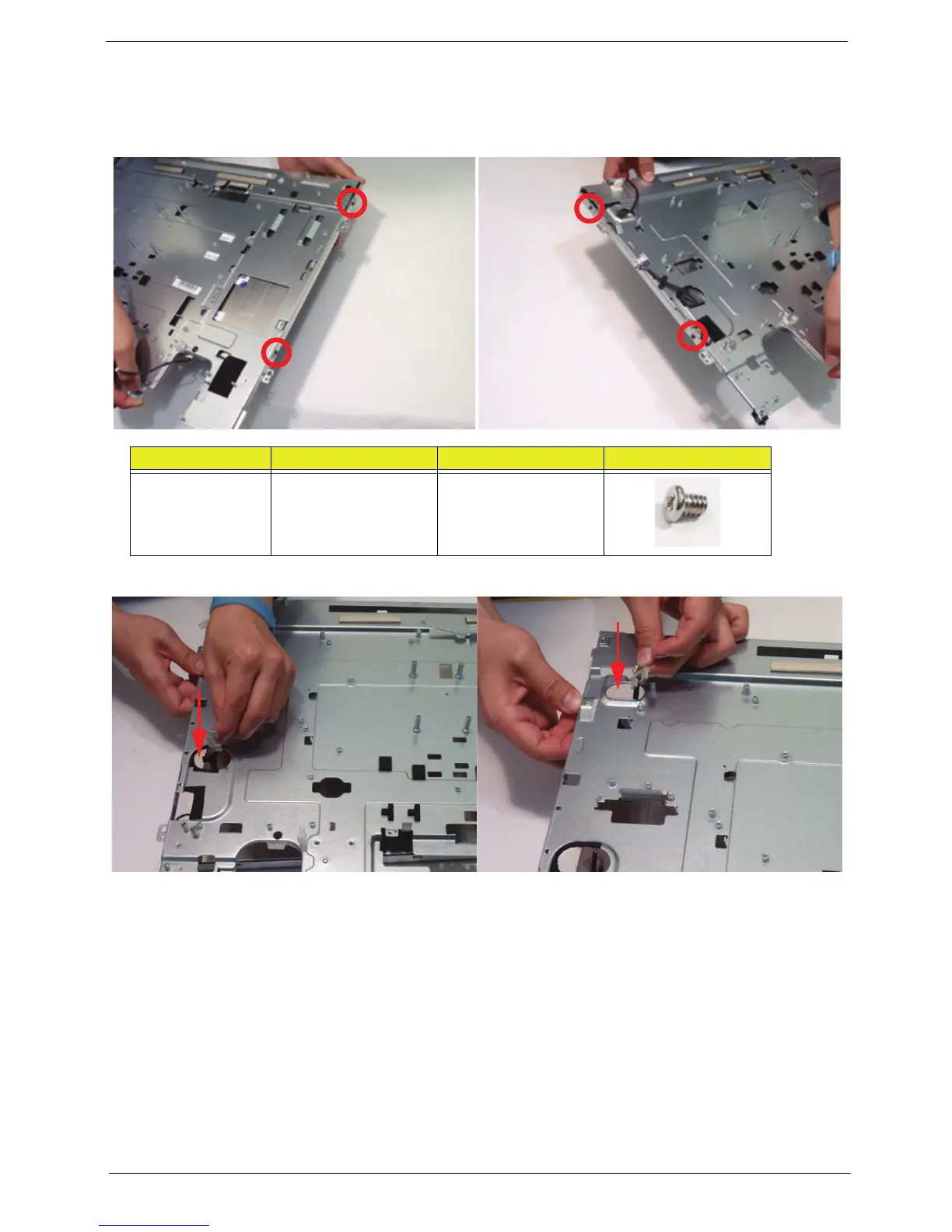

1. See “Removing the Frame” on page 89.
2. Remove the four (4) screws from the LCD assembly.
3. Lift the edge of the LCD bracket and pass the converter cables through.
Step Size Quantity Screw Type
LCD Panel M3*4 4
