ICR-2701
1.2 Hardware Overview
The router case preview is shown in Figure 1. A short description of hardware parts of the
router is listed in Table 1, including the links to the chapters with a detailed description. For
a router in a plastic box, the description of the components is similar.

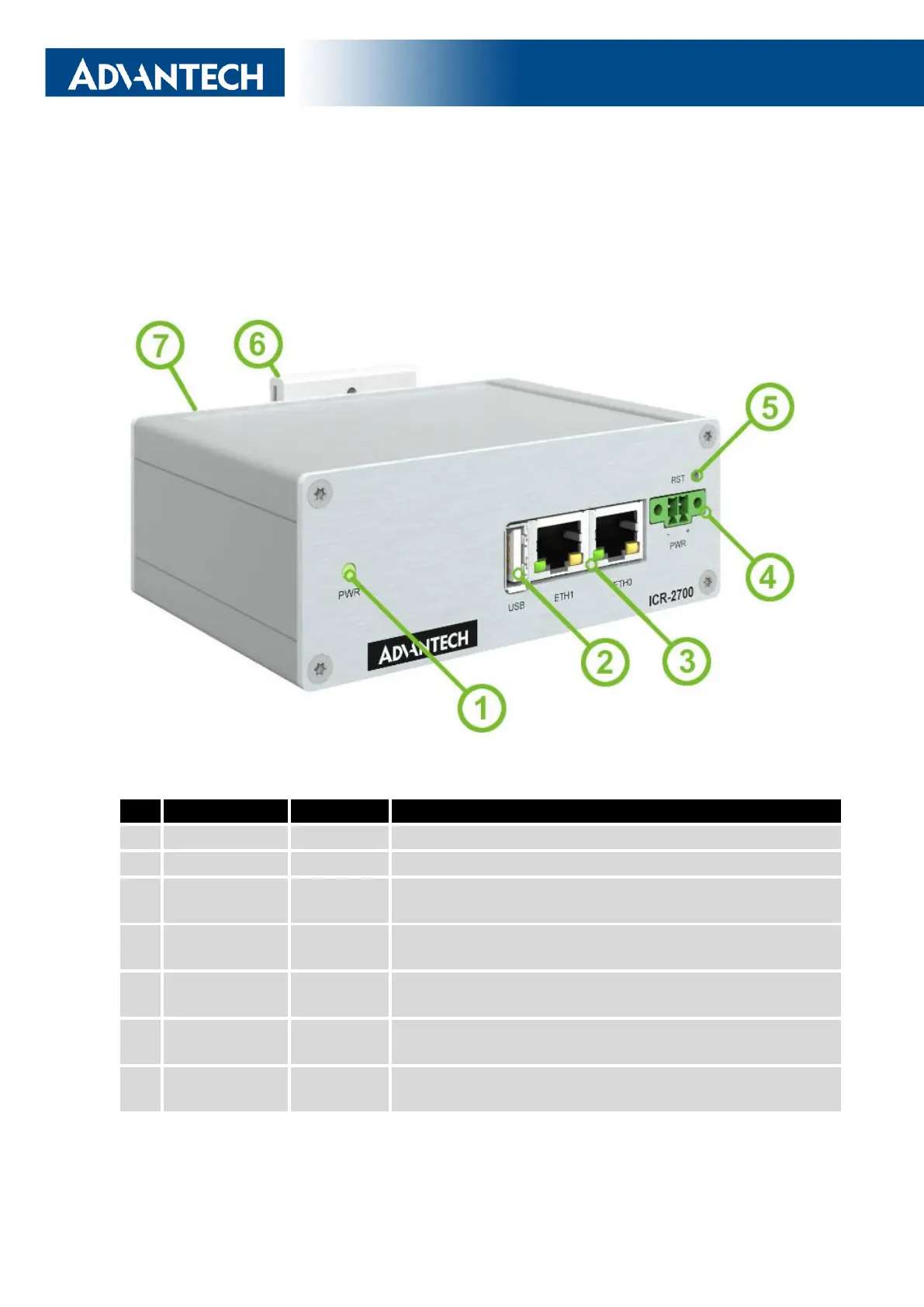

Figure 1: Hardware Overview of the Router
# Item/Caption Type Description
1 LED - Status LED indication; see Chapter 2.4.
2 USB USB-A USB-A type socket connector; see Chapter 2.3.
3 ETH0, ETH1 RJ45 100 MB Ethernet connection for the firts and second LAN;
see Chapter 2.1.
4 PWR 2-pin
terminal
Power supply socket; see Chapter 2.2.
5 RST - Button to reboot the router or to restore the default
configuration; see Chapter 2.5.
6 DIN clip - DIN rail clip, included as standard accessories; see Chap-
ter 1.7.
7 Grounding
screw
M3 Pay attention to proper grounding of model with metal box;
see Chapter 2.2.
Table 1: Hardware Overview of the Router
3
