AG MAXI User Manual

AR / 25.07.23 / Version 1 12
3.2 CHARGER
The 12 V charger is supplied with all AG Maxis. With a “Soft start” feature to check for
possible faults i.e. reverse battery connection or short circuit, before offering maximum
charge current.
A “Constant current bulk charge and 3-stage charging” feature provides the fastest possible
way to recharge SLA batteries without over-charging.
A “Constant voltage float” feature compensates for self-discharge, holding the battery at
peak charge, ready for use. The battery can be left on charge until required without fear of
overcharging.

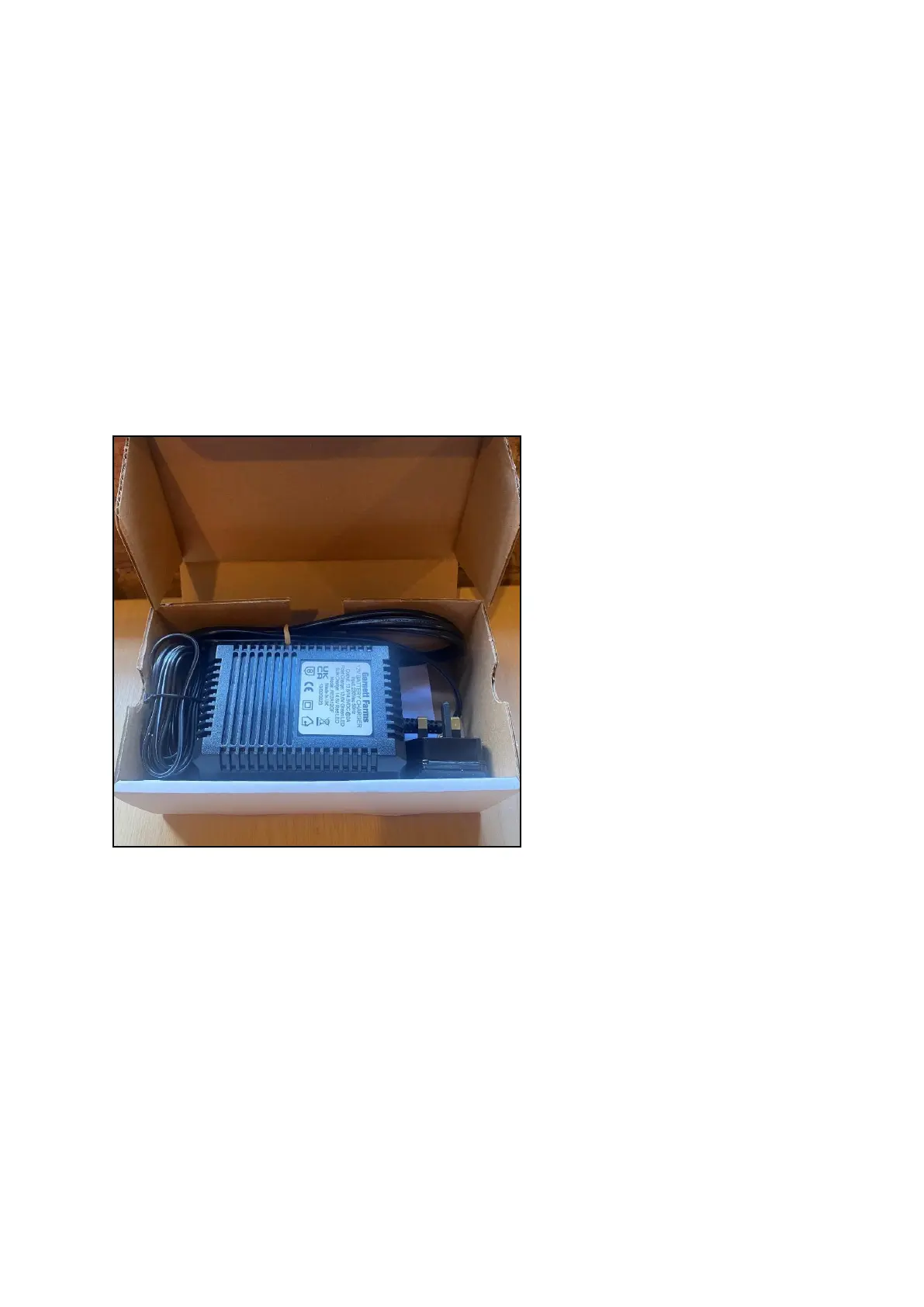

Inside the charger box, you will find the General Instruction Sheet RE Range 3-Stage
Chargers, the main body of the charger with 2x LED indication lights, red and green, Euro
plug, 3 pin mains plug, fuse included, and the male charger port already fitted.
