AR / 25.07.23 / Version 1 23

5.7 REMOVING THE CONVEYOR FROM THE BASE OF THE AG MAXI

5.8 OPTIONAL EXTRAS FOR THE AG MAXI

In addition to the AG Maxi, there are optional extras, which are designed to enhance the

performance and make it possible to adapt the AG Maxi to suit your working requirements

and environment.

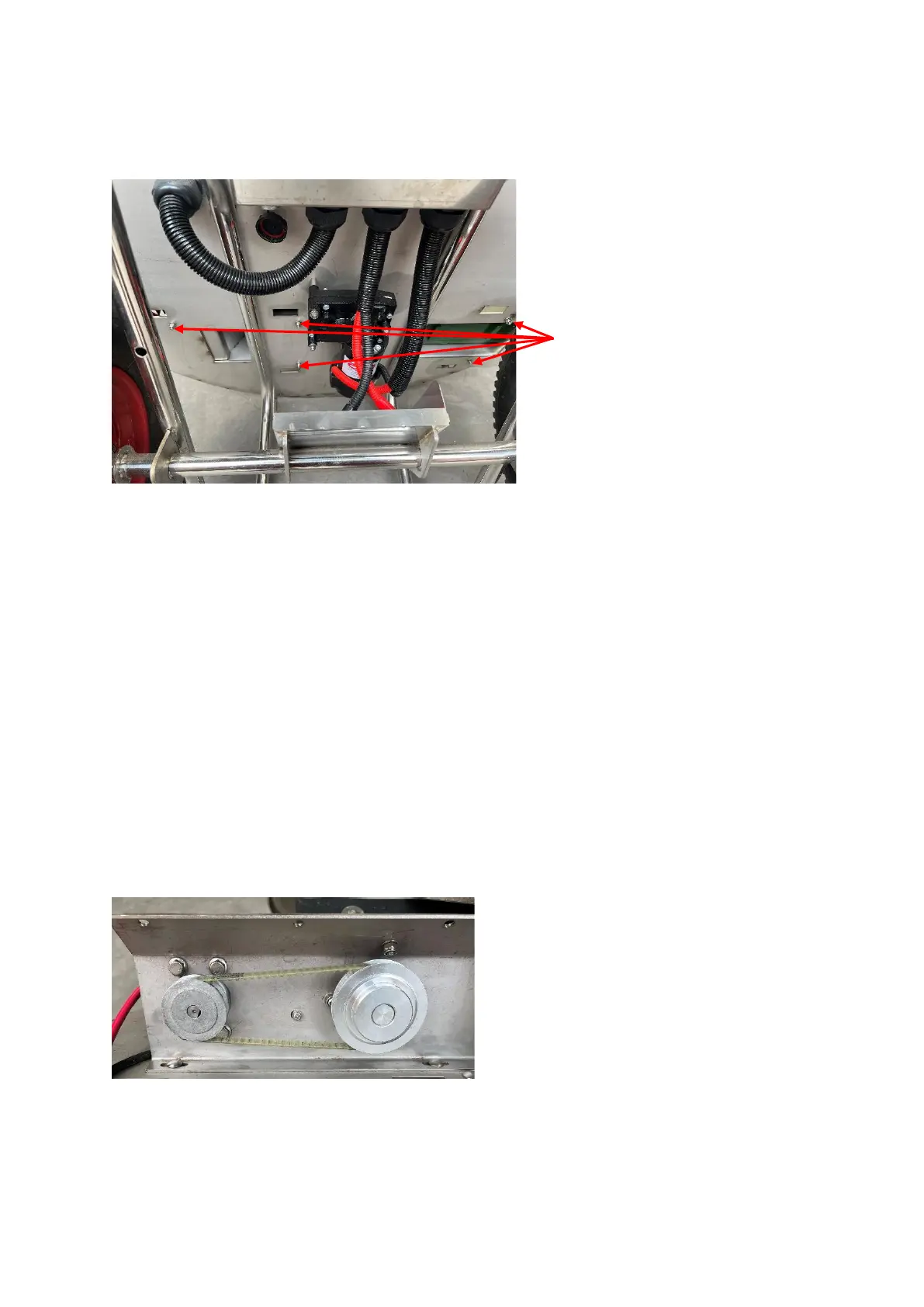

5.8.1 CHANGING THE PULLEY.

Reduces the distance of material thrown onto the bedding area.

As an additional optional extra to the

normal AG Maxi pulley setup, there is also

the option shown to the left. Remove

previous larger pulley and V-belt. Adjust

V-belt tension to 5 mm deflection. This

will then alter the rate at which the

conveyor runs.

Removing the five cup head bolts

indicated by the arrows enables the

conveyor to be removed.
