Agilent Technologies 54830 Series User Manual

Setting Up the Oscilloscope
To connect an external monitor
1-25
To connect an external monitor
You can connect a VGA-compatible monitor to the Infiniium oscilloscope to
provide a larger viewing area.
1 Connect the monitor cable to the display board video connector at the
rear panel of the oscilloscope.
2 Tighten the retaining screws.

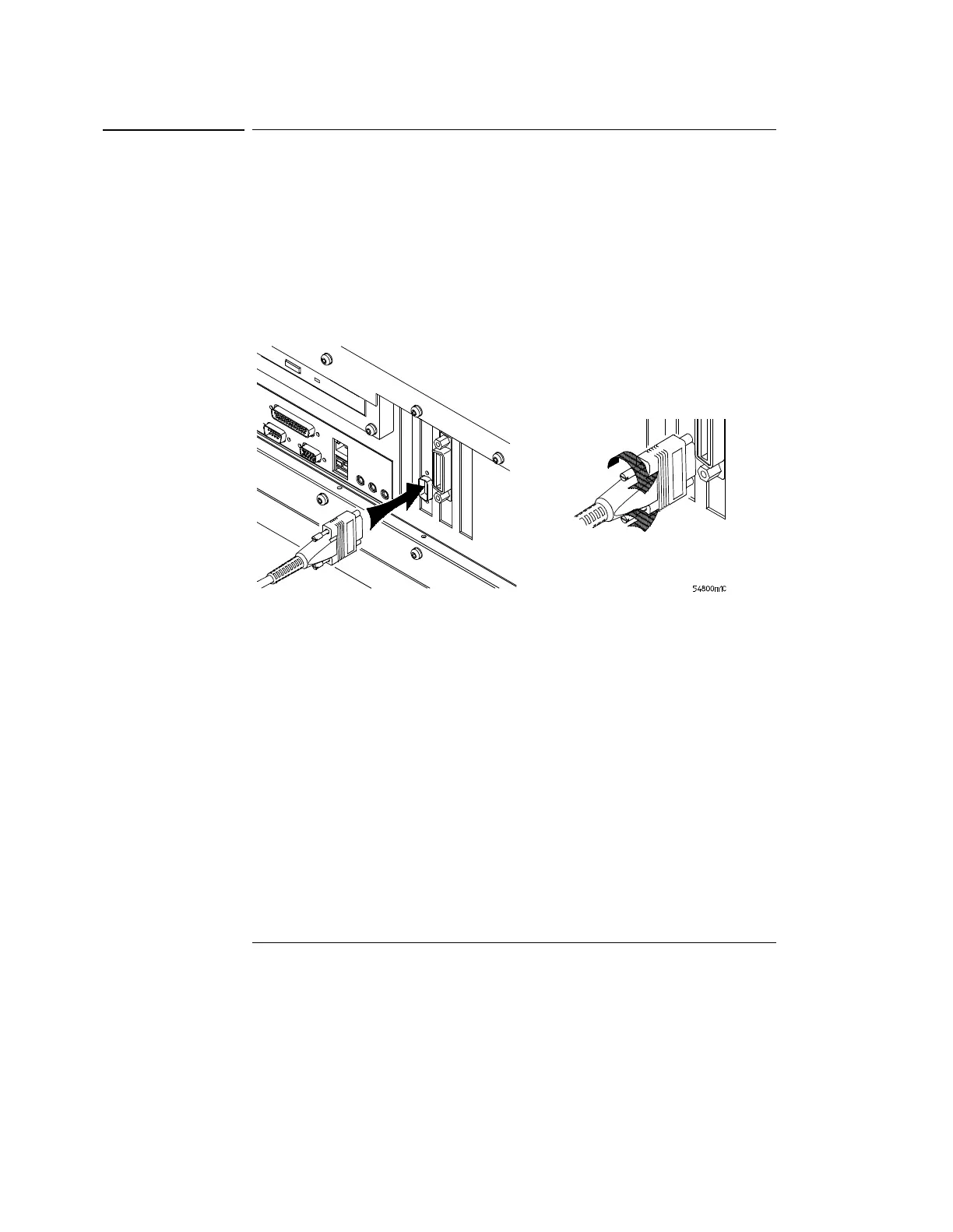

Figure 1-19
Connecting an External Monitor
